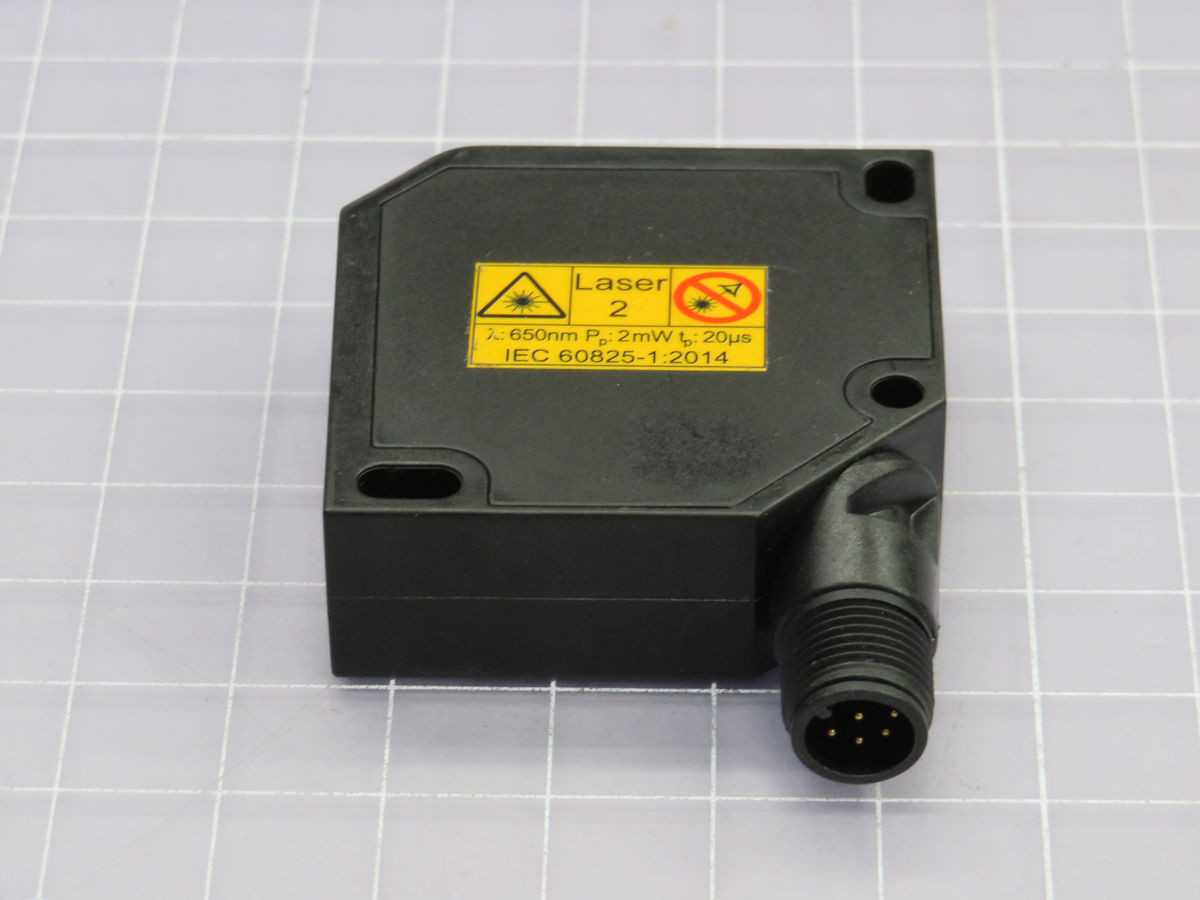

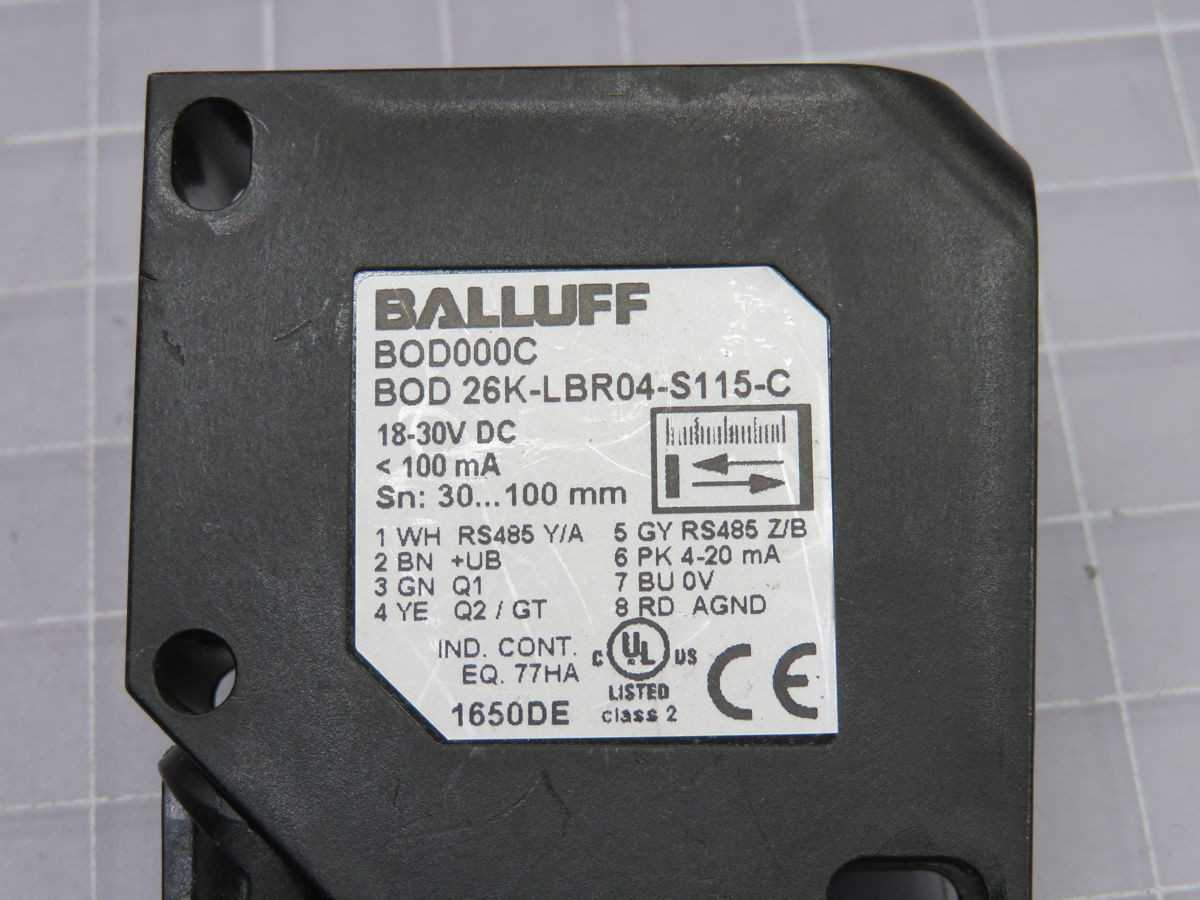

Balluff BOD000C Sensors, 100 mm Range, 0.01 mm Res, 3 PNP Out, 10-30 V DC Sup, IP67 Prot

THE BALLUFF BOD000C IS A PHOTOELECTRIC DISTANCE SENSOR UTILIZING A CLASS 1 LASER LIGHT EMITTER. IT FEATURES A MAXIMUM SENSING RANGE OF 100 MM, WITH A RESOLUTION OF 0.01 MM AND A REPEAT ACCURACY OF 0.05 MM. THE SENSOR PROVIDES THREE PNP SWITCHING OUTPUTS, CONFIGURABLE AS NORMALLY OPEN OR NORMALLY CLOSED. IT OPERATES ON A 10-30 V DC SUPPLY, CONSUMING A MAXIMUM OF 40 MA WITHOUT LOAD. THE RESPONSE TIME IS 1.5 MS, SUPPORTING A SWITCHING FREQUENCY OF 300 HZ. ELECTRICAL CONNECTION IS FACILITATED VIA AN M12X1-MALE, 5-PIN CONNECTOR. THE ROBUST HOUSING IS CONSTRUCTED FROM DIE-CAST ZINC, WITH A GLASS SENSING SURFACE, ENSURING AN IP67 PROTECTION RATING. OPTIMAL OPERATION IS MAINTAINED WITHIN A TEMPERATURE RANGE OF 0 TO 50 °C.
