BEIJER ELECTRONICS IX-PANEL-T7A, 7-IN TOUCHSCREEN, 800X480 PIXELS, 24 VAC, 512MB RAM, IP65 RATING

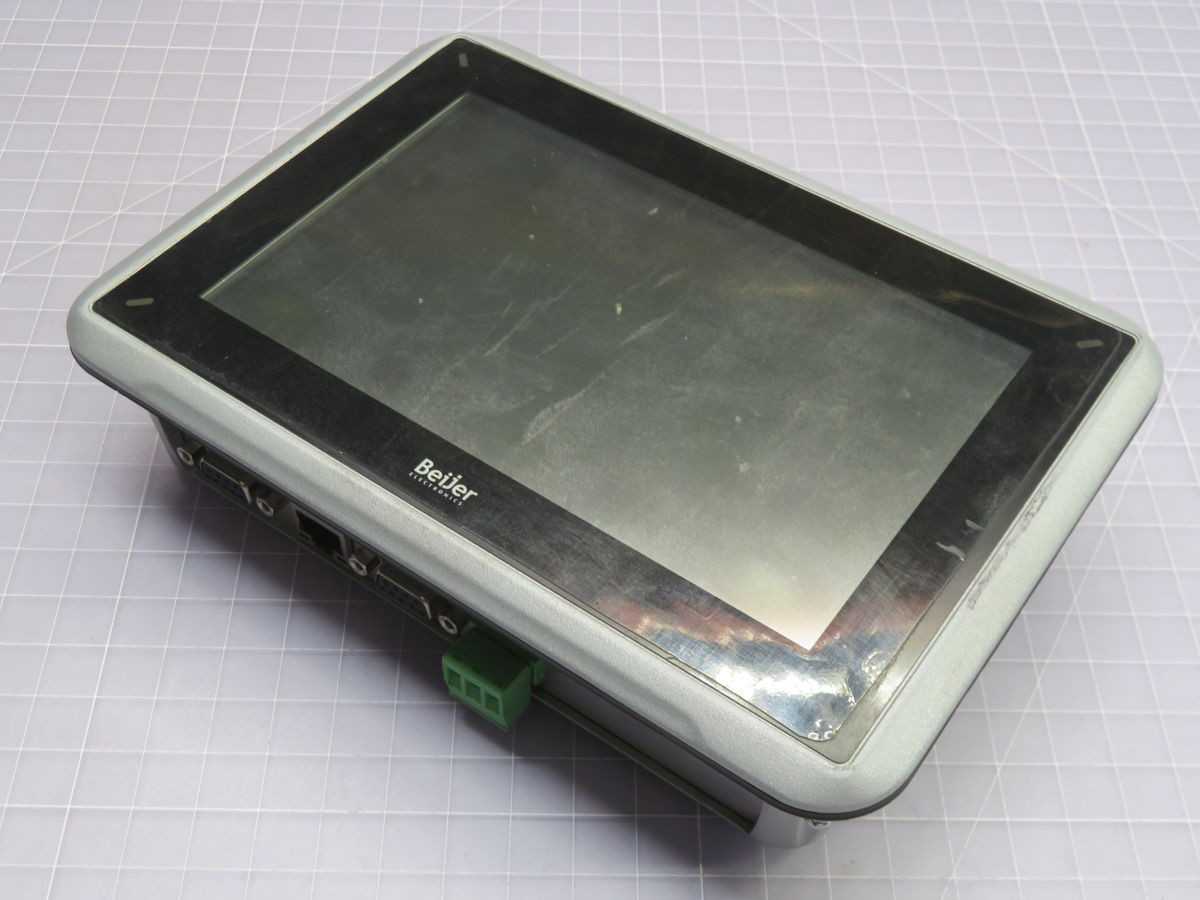

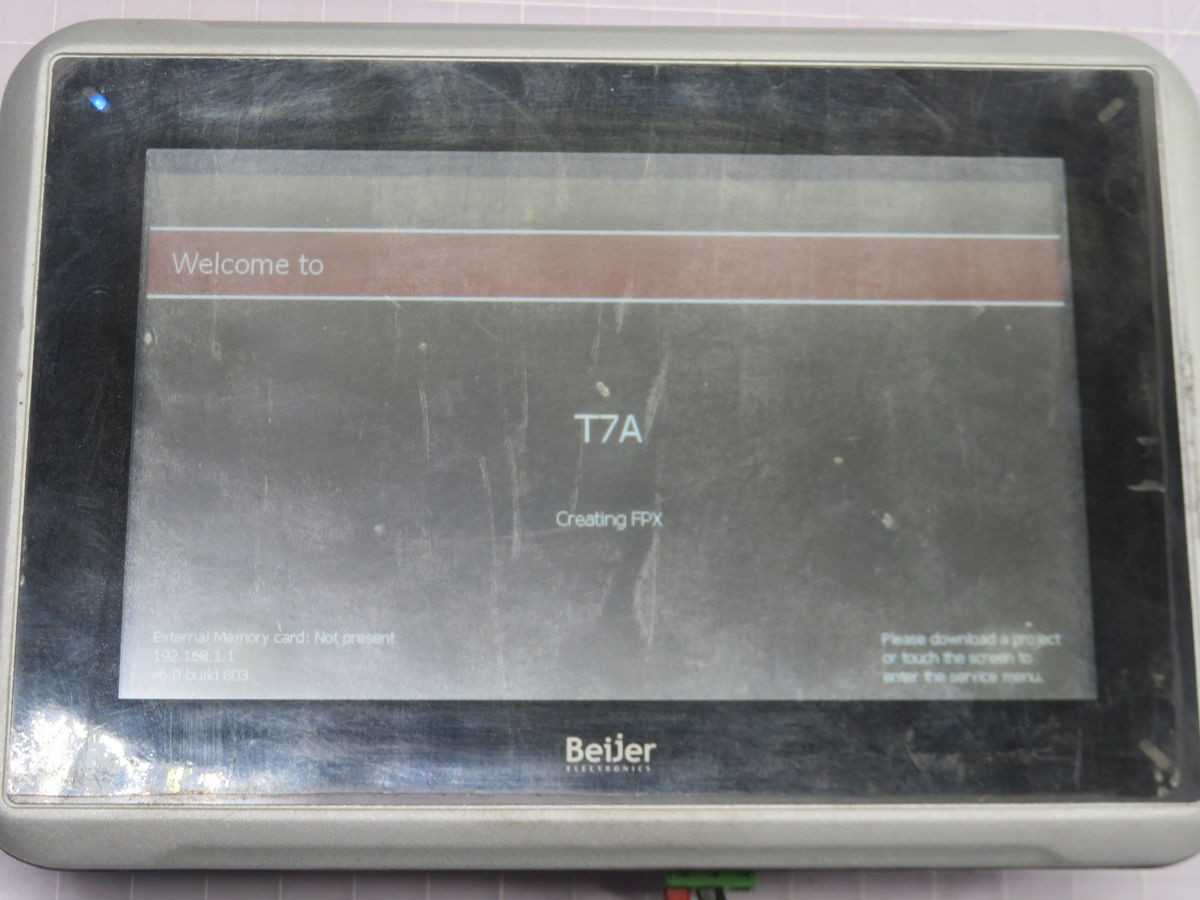

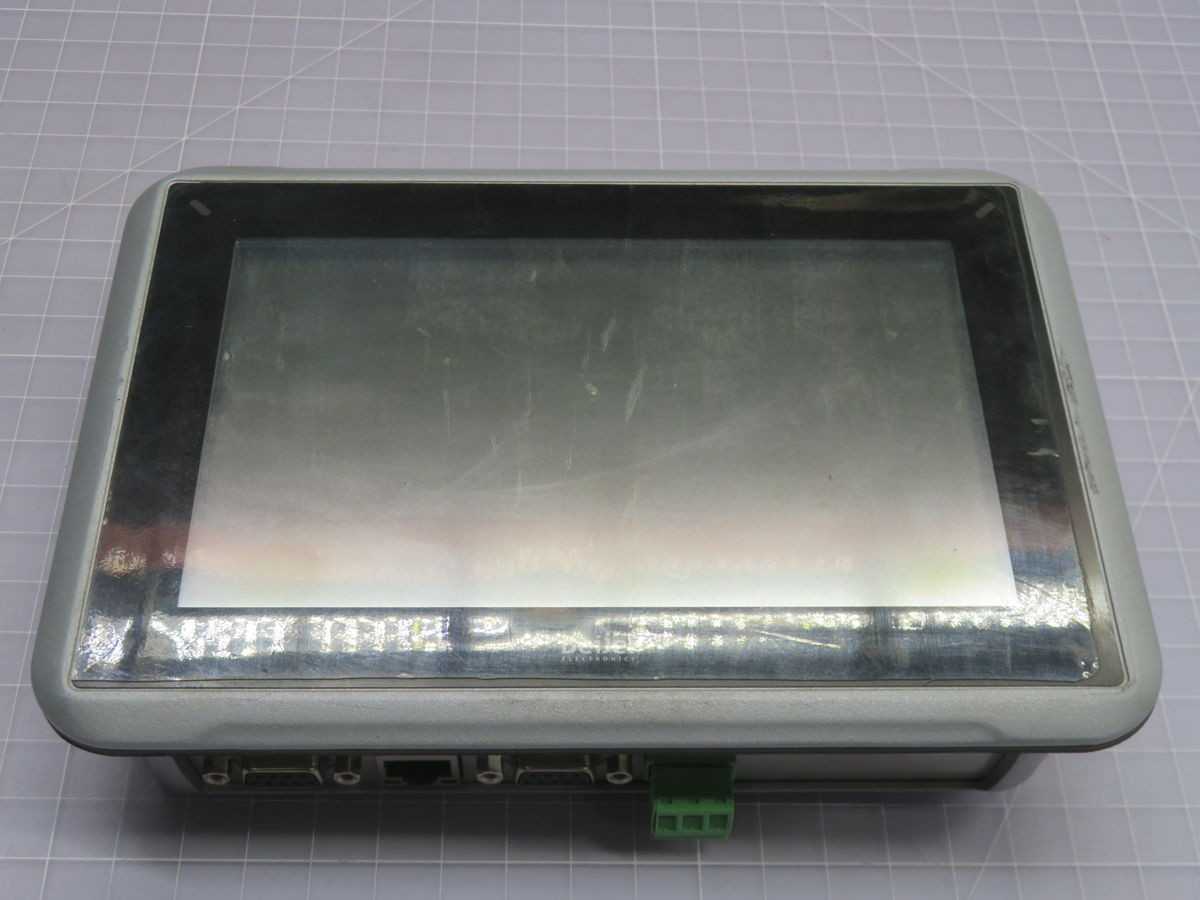

THE BEIJER ELECTRONICS IX-PANEL-T7A IS AN OPERATOR INTERFACE FEATURING A 7-INCH DIAGONAL LCD GRAPHIC TOUCH SCREEN WITH AN 800 X 480 PIXEL RESOLUTION AND LED BACKLIGHT. IT OPERATES ON A 24 VAC POWER SUPPLY, DRAWING 1.0 AMP FOR A TOTAL POWER CONSUMPTION OF 6.0 W. INTERNALLY, IT IS EQUIPPED WITH AN ARM CORTEX-A8 PROCESSOR, 512 MB OF RAM, AND 2 GB OF FLASH MEMORY, RUNNING ON IX RUNTIME. CONNECTIVITY OPTIONS INCLUDE ONE 10/100 MBIT/S ETHERNET PORT, ONE RS-232 SERIAL PORT, ONE RS-422/485 SERIAL PORT, AND ONE USB 2.0 HOST PORT. THE FRONT PANEL HOLDS AN IP65 RATING FOR INGRESS PROTECTION, DESIGNED FOR PANEL MOUNTING APPLICATIONS.
