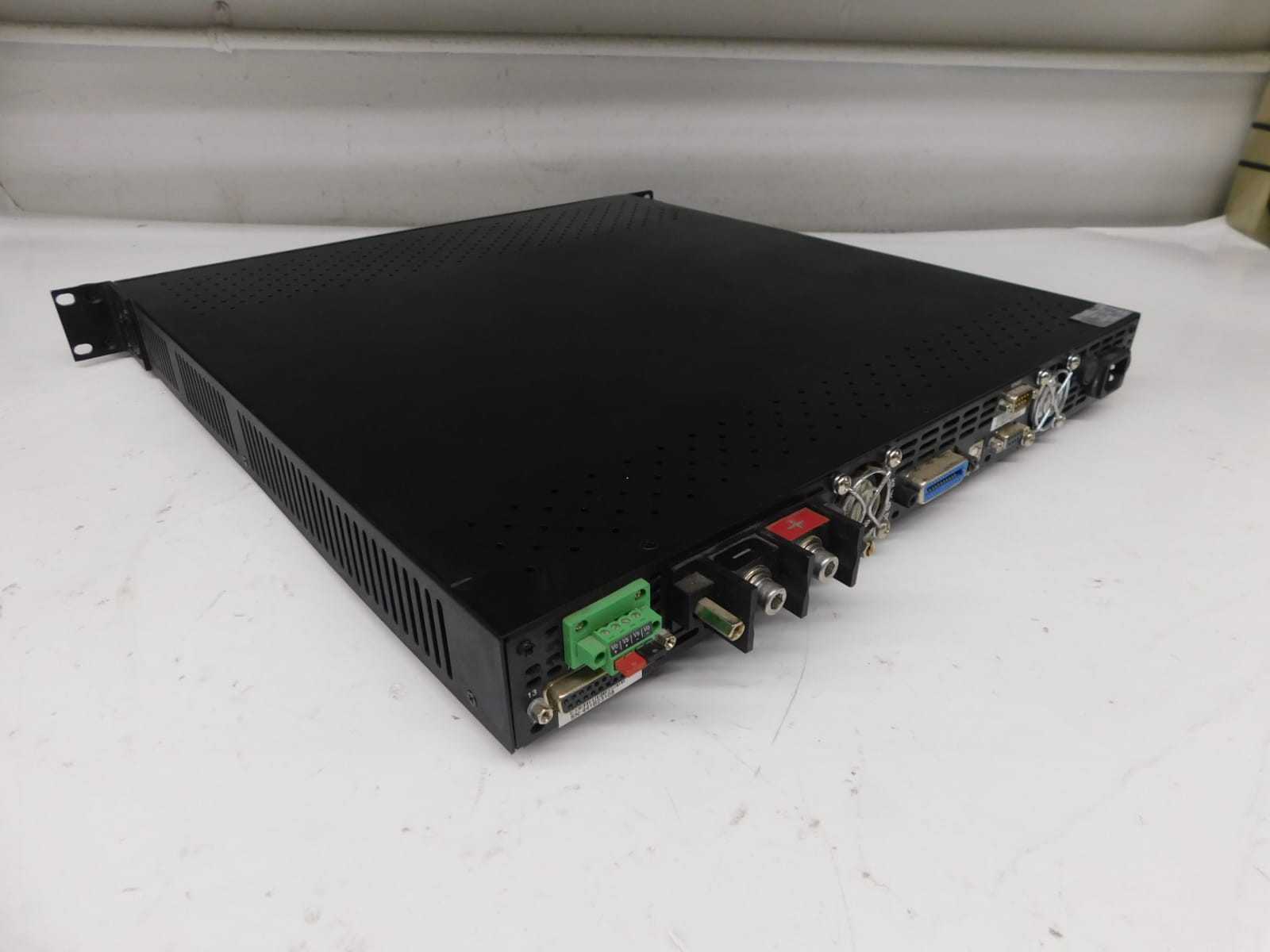

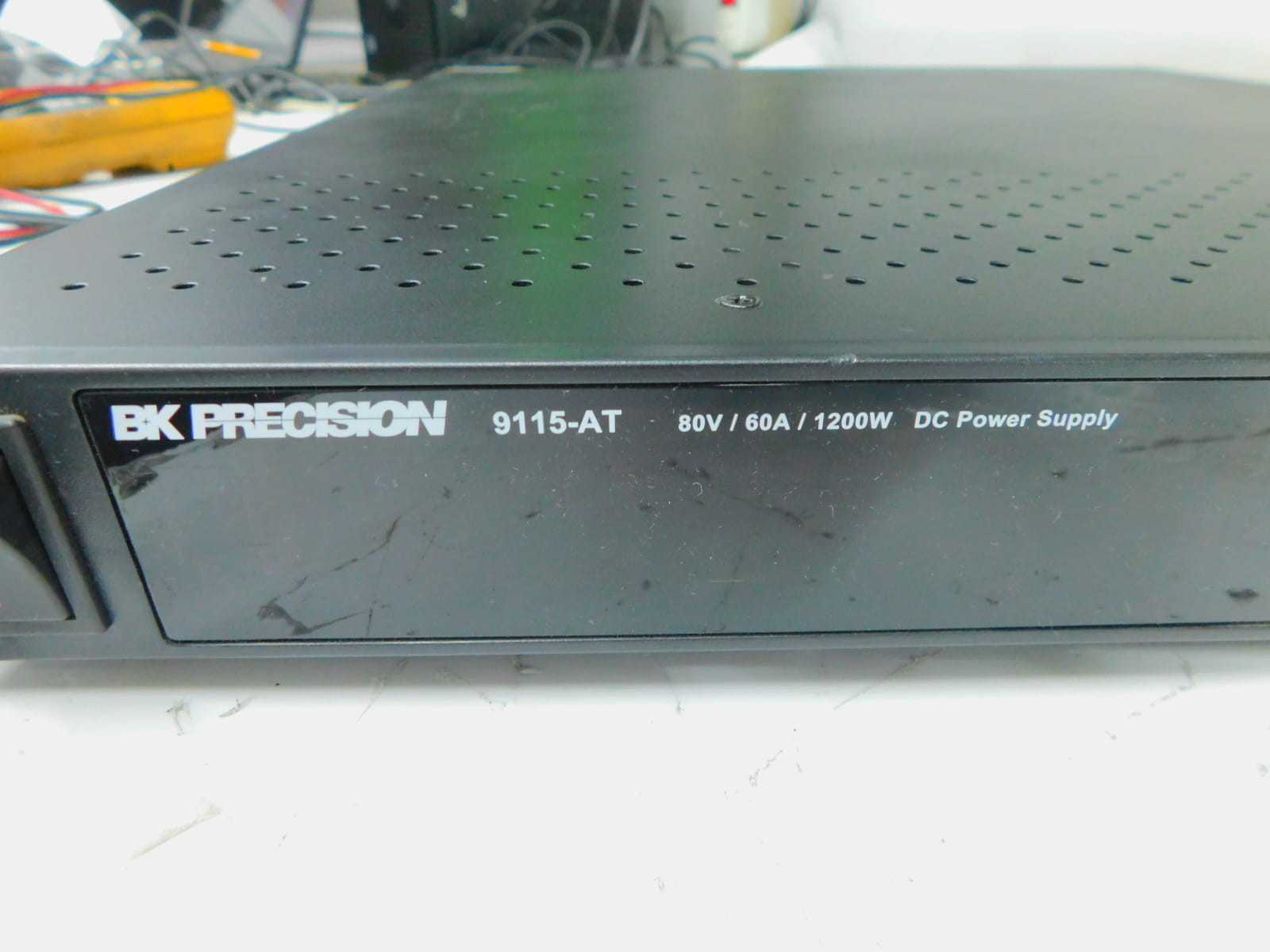

B&K 9115-AT MULTI-RANGE DC POWER SUPPLY, 1200W, 80V, 60A, AUTOMOTIVE TEST SIMULATIONS

THE B&K PRECISION 9115-AT IS A HIGH-DENSITY, 1U RACKMOUNT PROGRAMMABLE MULTI-RANGE DC POWER SUPPLY DESIGNED FOR VERSATILE BENCHTOP AND AUTOMATED TEST SYSTEM APPLICATIONS. IT DELIVERS UP TO 1200W OF OUTPUT POWER, AUTOMATICALLY RECALCULATING VOLTAGE AND CURRENT LIMITS TO PROVIDE ANY COMBINATION WITHIN ITS RATED MAXIMUMS OF 80V AND 60A. THIS MODEL SPECIFICALLY FEATURES BUILT-IN AUTOMOTIVE POWER TEST SIMULATIONS COMPLIANT WITH DIN 40839 AND ISO 16750-2 STANDARDS, ALLOWING FOR THE SIMULATION OF COMMON TEST CONDITIONS LIKE ENGINE CRANKING AND SUPPLY LINE TRANSIENTS. TECHNICAL SPECIFICATIONS INCLUDE A HIGH PROGRAMMING AND READBACK RESOLUTION OF 1 MV AND 1 MA, WITH AN EFFICIENCY RATING EXCEEDING 88% AT FULL LOAD. THE UNIT OFFERS ADJUSTABLE VOLTAGE RISE AND FALL TIMES, SEQUENCE PROGRAMMING THROUGH AN INTERNAL LIST MODE, AND MEMORY TO STORE AND RECALL UP TO 100 INSTRUMENT SETTINGS. COMPREHENSIVE CONNECTIVITY IS PROVIDED VIA STANDARD USB (USBTMC-COMPLIANT), RS-232, GPIB, AND RS-485 INTERFACES SUPPORTING SCPI COMMANDS. FOR HARDWARE PROTECTION, THE 9115-AT INCLUDES OVERVOLTAGE (OVP), OVERPOWER (OPP), AND OVERTEMPERATURE (OTP) PROTECTION CIRCUITS. THE FRONT PANEL INTERFACE FEATURES A VFD DISPLAY, NUMERICAL KEYPAD, AND ANALOG-STYLE KNOBS FOR INCREMENTAL ADJUSTMENTS, WHILE THE REAR PANEL INCLUDES REMOTE SENSE TERMINALS TO COMPENSATE FOR VOLTAGE DROPS IN LOAD LEADS. IT OPERATES ON A UNIVERSAL AC INPUT OF 115/230 VAC AT 47 HZ TO 63 HZ.
