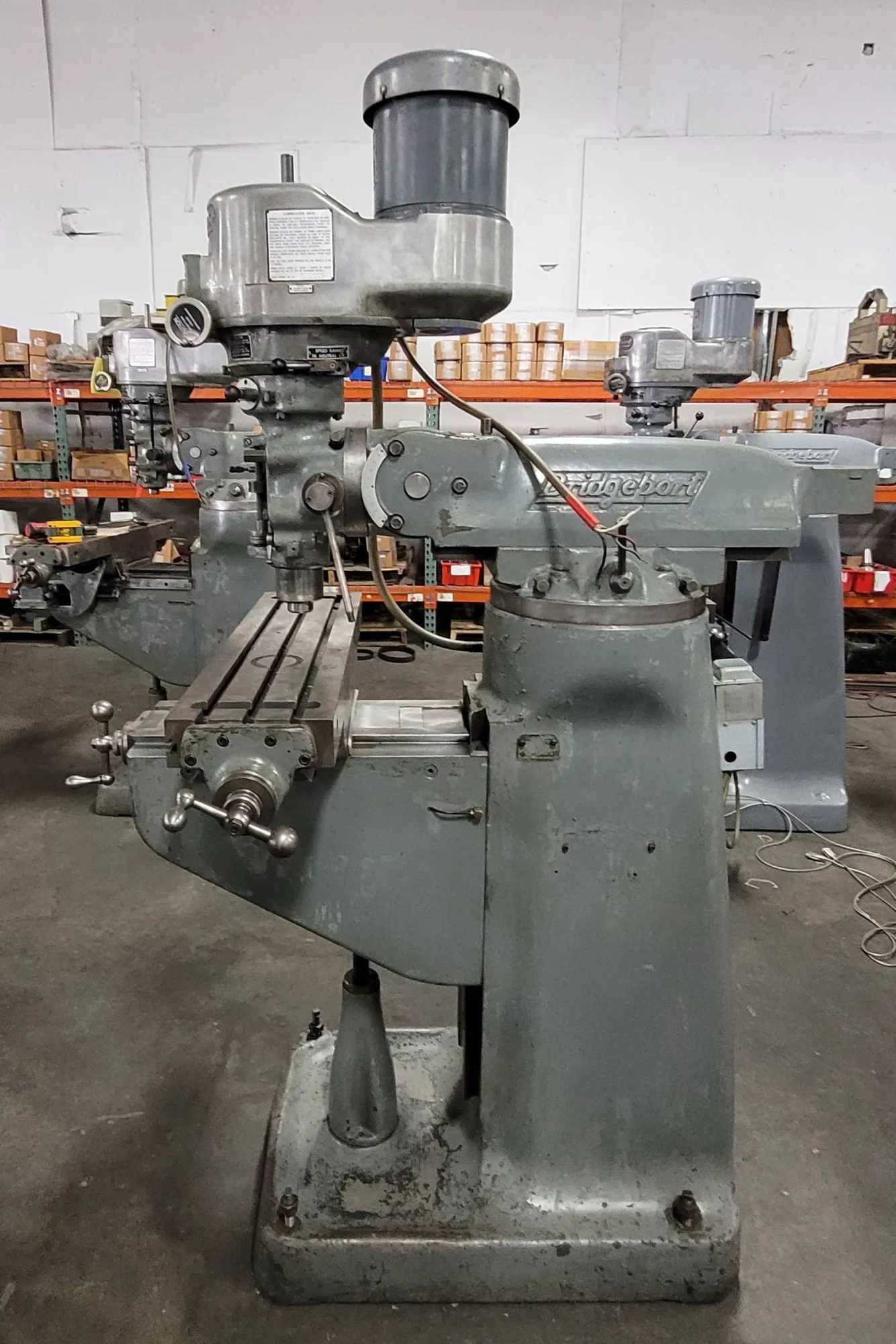

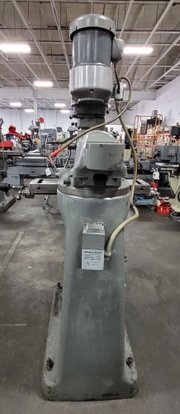

Bridgeport Series 1 2 HP Vertical Knee Mill, 9" X 36" Table, R8 Spindle Taper

THE BRIDGEPORT SERIES 1 VERTICAL KNEE MILL FEATURES A 9" X 36" T-SLOT TABLE AND IS EQUIPPED WITH A 2 HP MOTOR WIRED FOR 460V, 3-PHASE POWER. IT FEATURES CHROME-PLATED WAYS AND A CENTRALIZED ONE-SHOT LUBRICATION SYSTEM. THE SPINDLE DELIVERS A VARIABLE SPEED RANGE FROM 60 TO 4,200 RPM AND UTILIZES AN R-8 TAPER WITH A 3.375-INCH QUILL DIAMETER AND 5 INCHES OF QUILL TRAVEL. AXIS TRAVELS CONSIST OF A LONGITUDINAL X-AXIS TABLE TRAVEL RANGING FROM 31 INCHES UP TO 36 INCHES, A CROSS Y-AXIS SADDLE TRAVEL OF 12 INCHES, AND A VERTICAL Z-AXIS KNEE TRAVEL OF 16 INCHES. THE MACHINE ALSO OFFERS A RAM TRAVEL OF 12 INCHES AND A THROAT DISTANCE RANGING FROM A MINIMUM OF 6.75 INCHES TO A MAXIMUM OF 18.75 INCHES. DESIGNED FOR DURABILITY AND PRECISION, THE MILL ACCOMMODATES A MAXIMUM WORKPIECE WEIGHT OF 750 LBS, WITH A MAXIMUM HEIGHT FROM THE TABLE TO THE FLOOR OF 47.25 INCHES. THE OVERALL PHYSICAL DIMENSIONS OF THE MACHINE ARE APPROXIMATELY 6’ X 5’ X 7’ WITH A NET WEIGHT OF 2,200 LBS.
