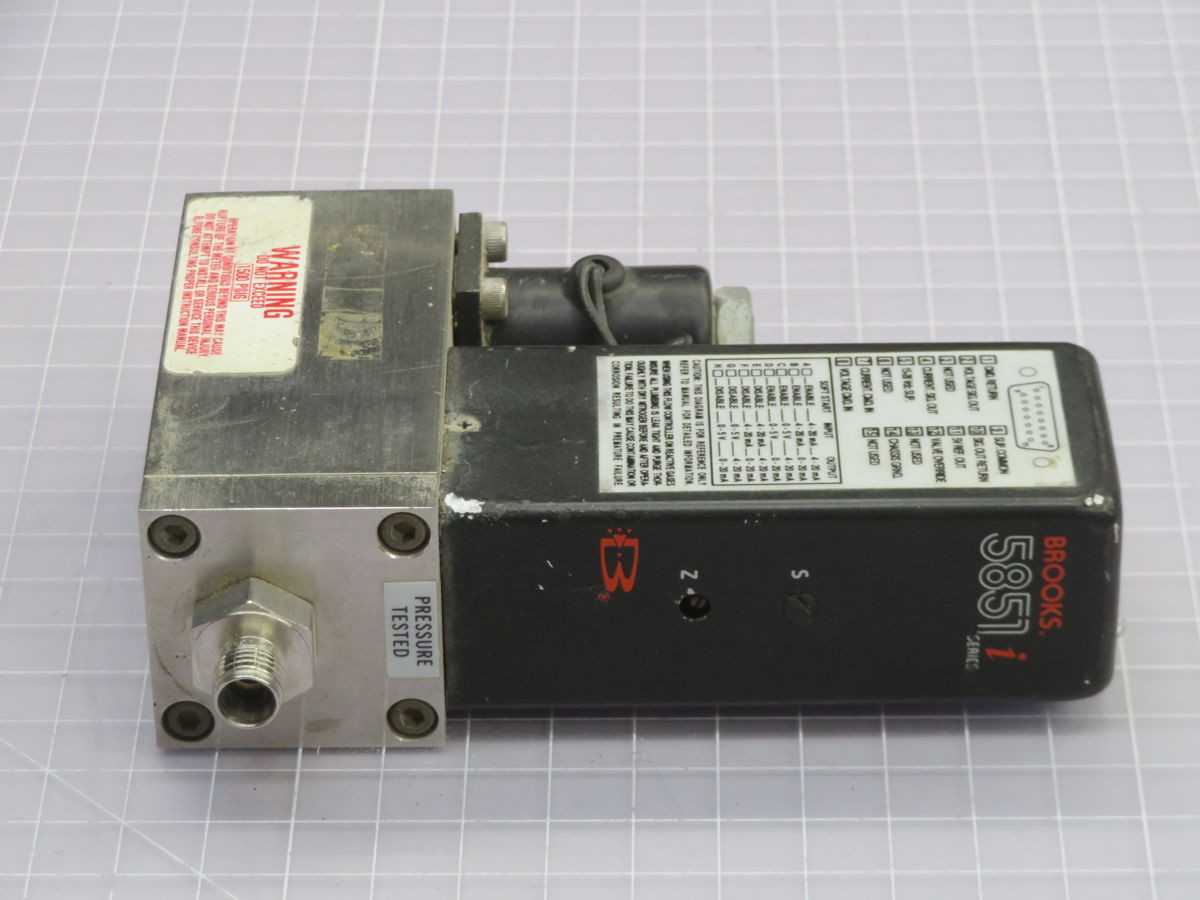

BROOKS INSTRUMENT 5851I MASS FLOW CONTROLLER, N2, 100 SLPH FLOW, ±1.0% ACCURACY, 316L SS

THE BROOKS INSTRUMENT MODEL 5851I IS A MASS FLOW CONTROLLER CONFIGURED FOR NITROGEN (N2) GAS WITH A FULL-SCALE FLOW RATE OF 100 SLPH AND A REFERENCE TEMPERATURE OF 70°F. THIS INSTRUMENT TYPICALLY FEATURES AN ACCURACY OF ±1.0% OF FULL SCALE AND A REPEATABILITY OF ±0.25% OF FULL SCALE. WETTED MATERIALS COMMONLY CONSIST OF 316L STAINLESS STEEL. IT OPERATES WITH A STANDARD OUTPUT SIGNAL OF 0-5 VDC, REQUIRING A +15 VDC INPUT POWER. TYPICAL PROCESS CONNECTIONS INCLUDE 1/4" NPT OR VCR FITTINGS. ITS RESPONSE TIME TO 98% OF SETPOINT IS GENERALLY LESS THAN 1 SECOND, AND THE STANDARD OPERATING TEMPERATURE RANGE IS 0 TO 50°C.
