Clean Air Industries HighSmoke HS2400 Oil Smoke & Mist Collector

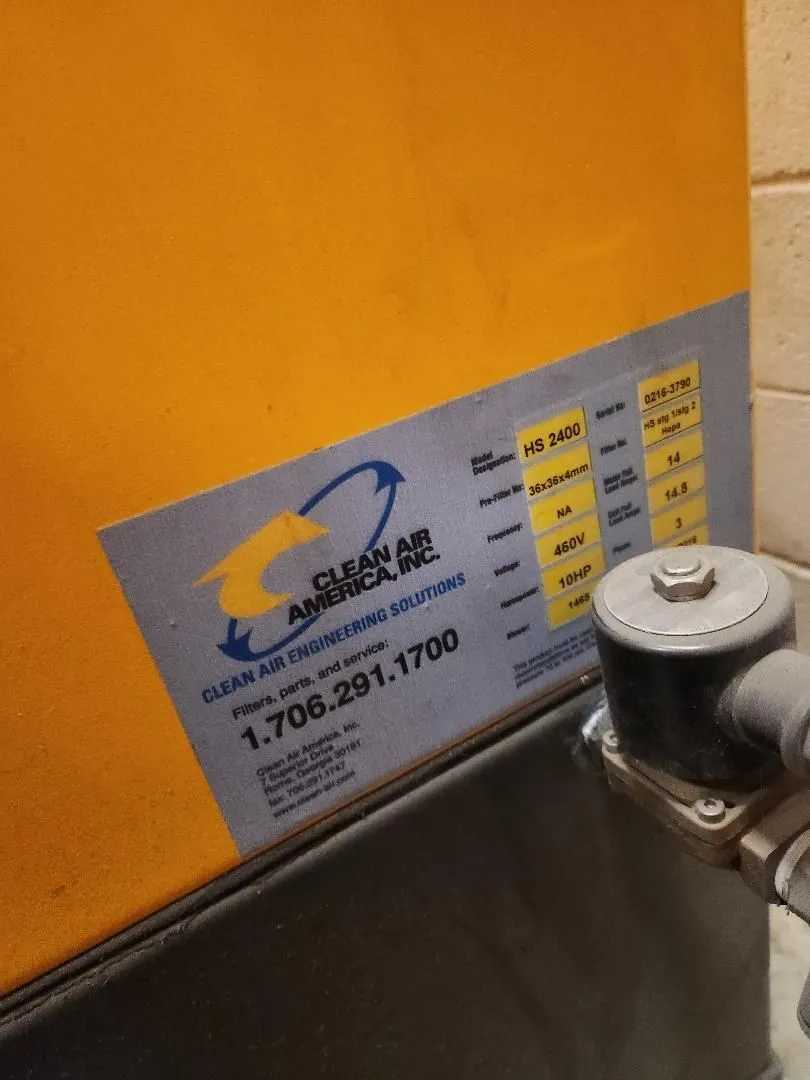

The Clean Air Industries Highsmoke 2400 (HS2400) is an industrial oil smoke and mist collector engineered for heavy-duty applications involving combinations of weld smoke, neat oils, and moisture-rich coolant steam. Designed for demanding processes with high inlet concentrations up to 150 mg/m³, such as die casting, cold heading, high-speed grinding and machining, and tube mills, the unit can be ducted to single or multiple machines based on airflow needs. It delivers an airflow capacity of 2,400 CFM and is powered by a 10 HP motor configured for 460V 3-phase power. The physical dimensions of the unit are 42 inches wide by 45 inches deep by 194 inches tall, with a total weight of 2,400 lbs and a 14-inch inlet size. Filtration is managed through a multi-stage system featuring a 36" x 36" x 4" metal mesh pre-filter, Stage 1 oversized deep fiber bed filter (36" x 39" x 28"), Stage 2 oversized deep fiber bed filter (36" x 39" x 24"), and a Stage 3 HEPA final safety filter (36" x 39" x 11.5").
