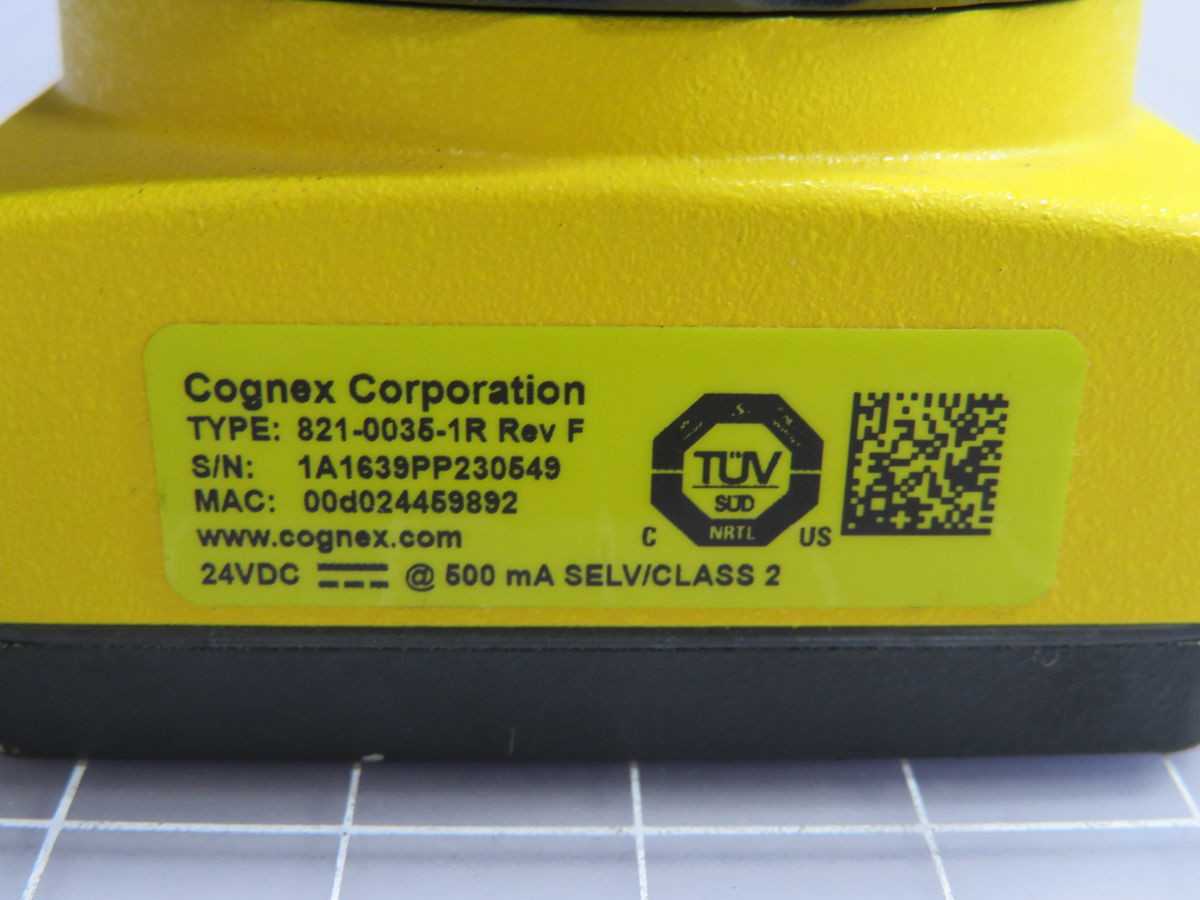

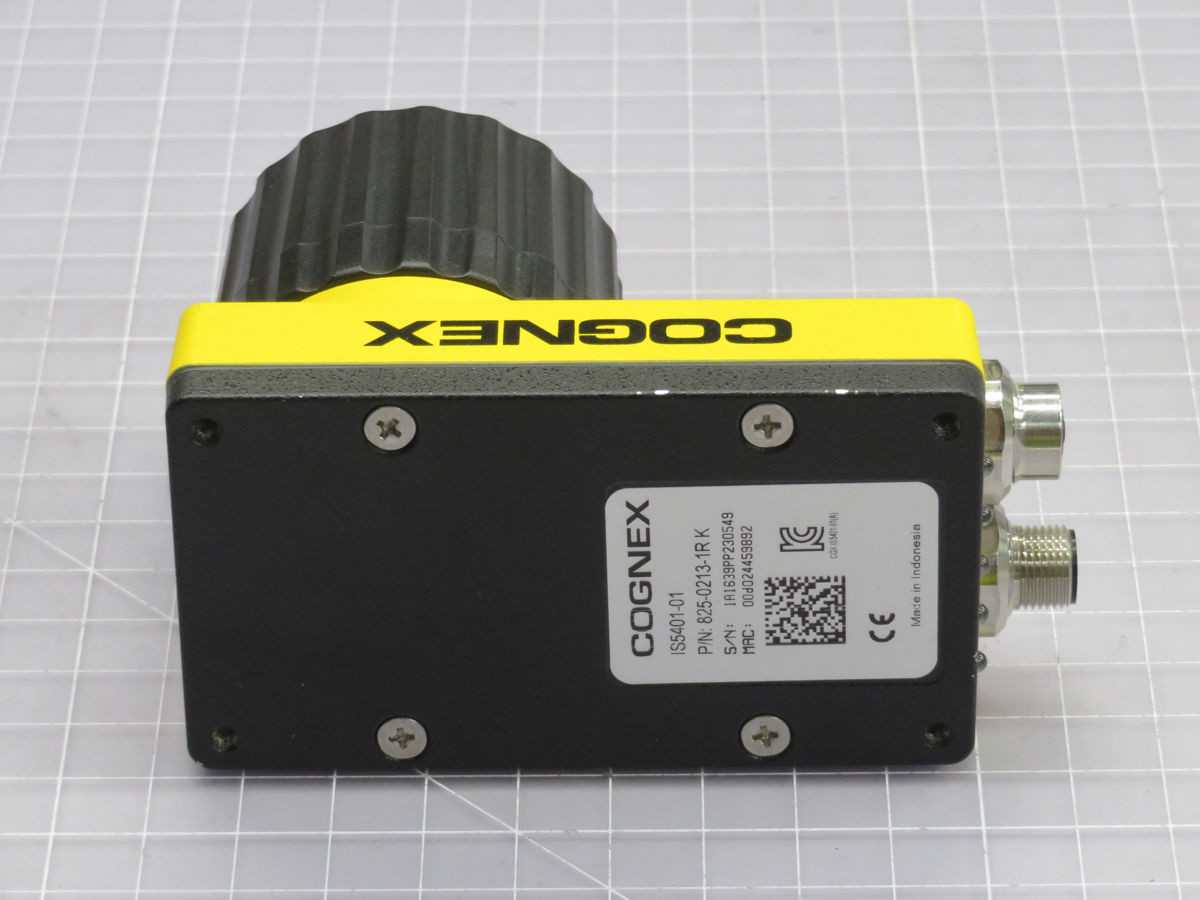

Cognex Is5401-01 Sensor, 1024X768 Px Res, 60 Fps, 24V Dc Power, Ip67

THE COGNEX IS5401-01 IS A HIGH-RESOLUTION IN-SIGHT 5401 SERIES SMART CAMERA VISION SYSTEM ENGINEERED FOR INDUSTRIAL INSPECTION AND GUIDANCE APPLICATIONS. THIS SYSTEM FEATURES A CCD IMAGE SENSOR PROVIDING 1024 X 768 (XGA) PIXEL RESOLUTION AND IS CAPABLE OF ACQUIRING IMAGES AT FRAME RATES UP TO 60 FRAMES PER SECOND. IT INTEGRATES A HIGH-SPEED DIGITAL SIGNAL PROCESSOR (DSP) AND ON-BOARD MEMORY FOR EFFICIENT IMAGE PROCESSING. CONNECTIVITY OPTIONS INCLUDE 10/100 BASET ETHERNET, AN RS-232 SERIAL PORT, AND CONFIGURABLE DISCRETE I/O, COMPRISING FOUR OPTO-ISOLATED INPUTS AND TWO OPTO-ISOLATED OUTPUTS. THE UNIT OPERATES ON A 24V DC POWER SUPPLY AND IS HOUSED WITHIN AN IP67-RATED ENCLOSURE, SUITABLE FOR DEMANDING INDUSTRIAL ENVIRONMENTS.
