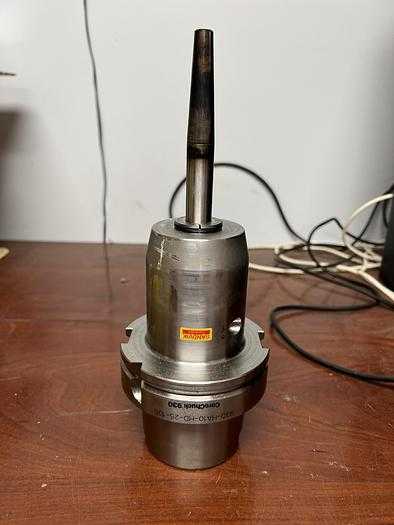

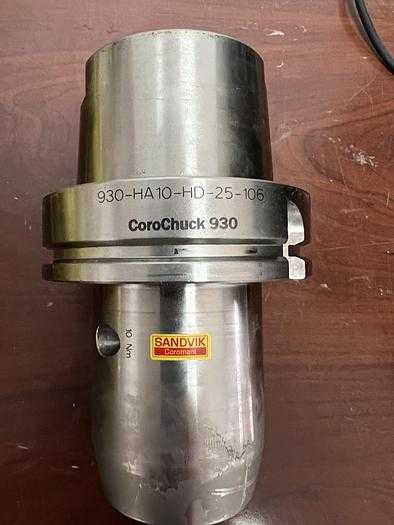

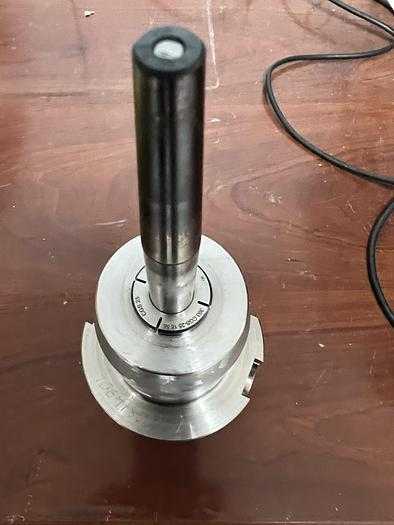

COROCHUCK 930-HA10-HD-25-106, SANDVIK COROMANT, HSK 100, 25MM BORE, <4ΜM RUN-OUT, THROUGH-COOLANT.

THE SANDVIK COROMANT COROCHUCK 930-HA10-HD-25-106 IS A HEAVY-DUTY, HIGH-PRECISION HYDRAULIC TOOL HOLDER FEATURING AN HSK 100 (HA10) MACHINE-SIDE COUPLING. DESIGNED FOR MILLING, DRILLING, AND REAMING OPERATIONS, IT UTILIZES FULCRUM TECHNOLOGY WITH A BRAZED MEMBRANE TO PROVIDE HIGH CLAMPING FORCE AND PULL-OUT SECURITY. THIS MODEL SPECIFIES A 25MM BORE SIZE (HOLE DIAMETER) AND IS ENGINEERED TO ELIMINATE VIBRATION FOR INCREASED STABILITY AND IMPROVED SURFACE FINISH. THE SYSTEM SUPPORTS HIGH-PRECISION REPETITION WITH A RUN-OUT TOLERANCE OF LESS THAN 4 ΜM AT 2.5 × DC. IT INCLUDES AN ADJUSTMENT SCREW FOR SETTING CLAMPING LENGTH AND IS BALANCED ACCORDING TO DIN 69888. THIS SPECIFIC UNIT COMES WITH A COLLET AND IS COMPATIBLE WITH SHRINK-FIT TOOLING. THE MACHINE-SIDE COUPLING IS GROUND TO ENSURE PRECISION, AND THE HYDRAULIC MECHANISM ALLOWS FOR QUICK TOOL CHANGES USING A TORQUE WRENCH WITHOUT THE NEED FOR EXTERNAL EQUIPMENT. THROUGH-COOLANT CAPABILITY IS SUPPORTED TO ENHANCE PERFORMANCE IN DEMANDING METALWORKING APPLICATIONS. YEAR OF MANUFACTURE IS NOT AVAILABLE.
