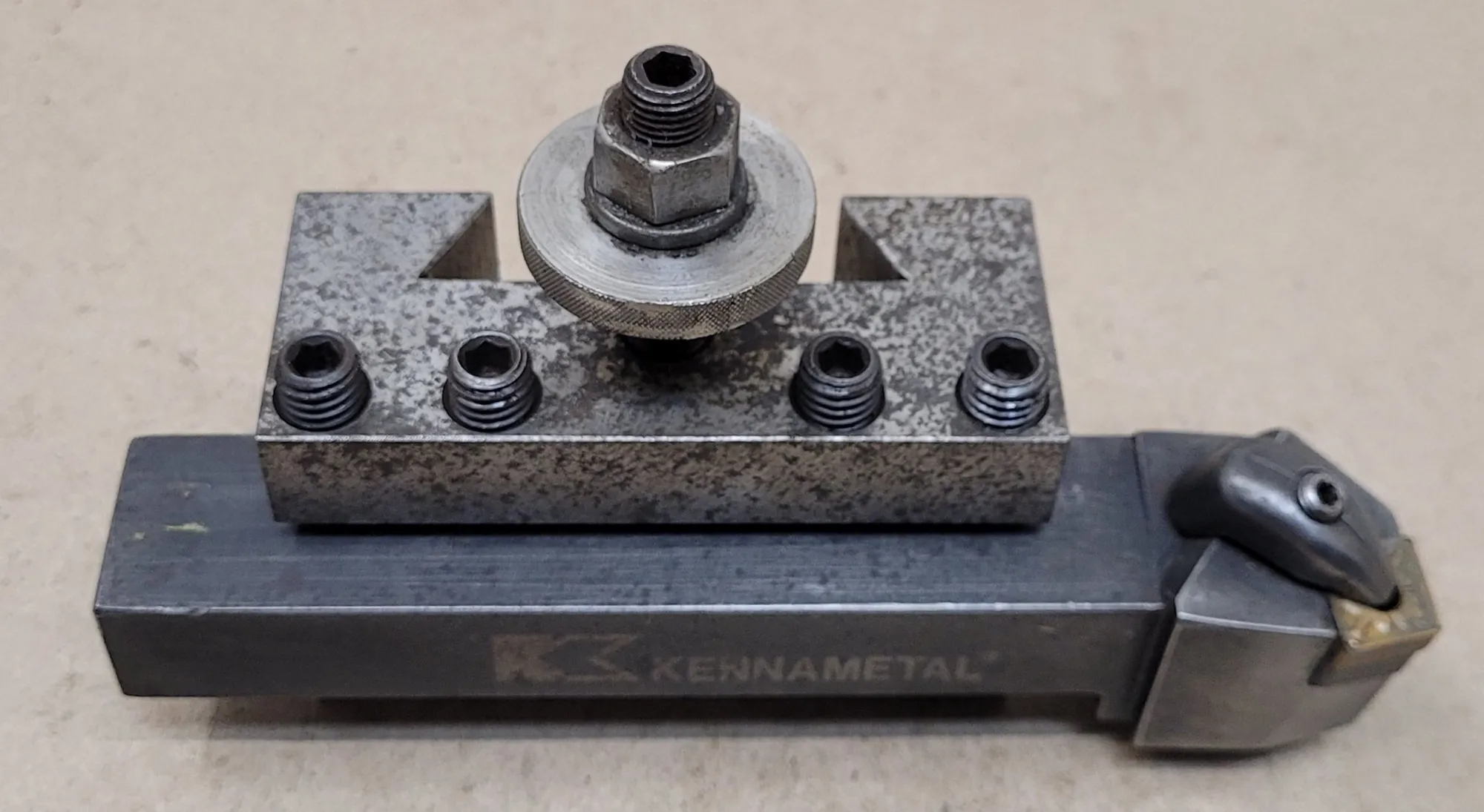

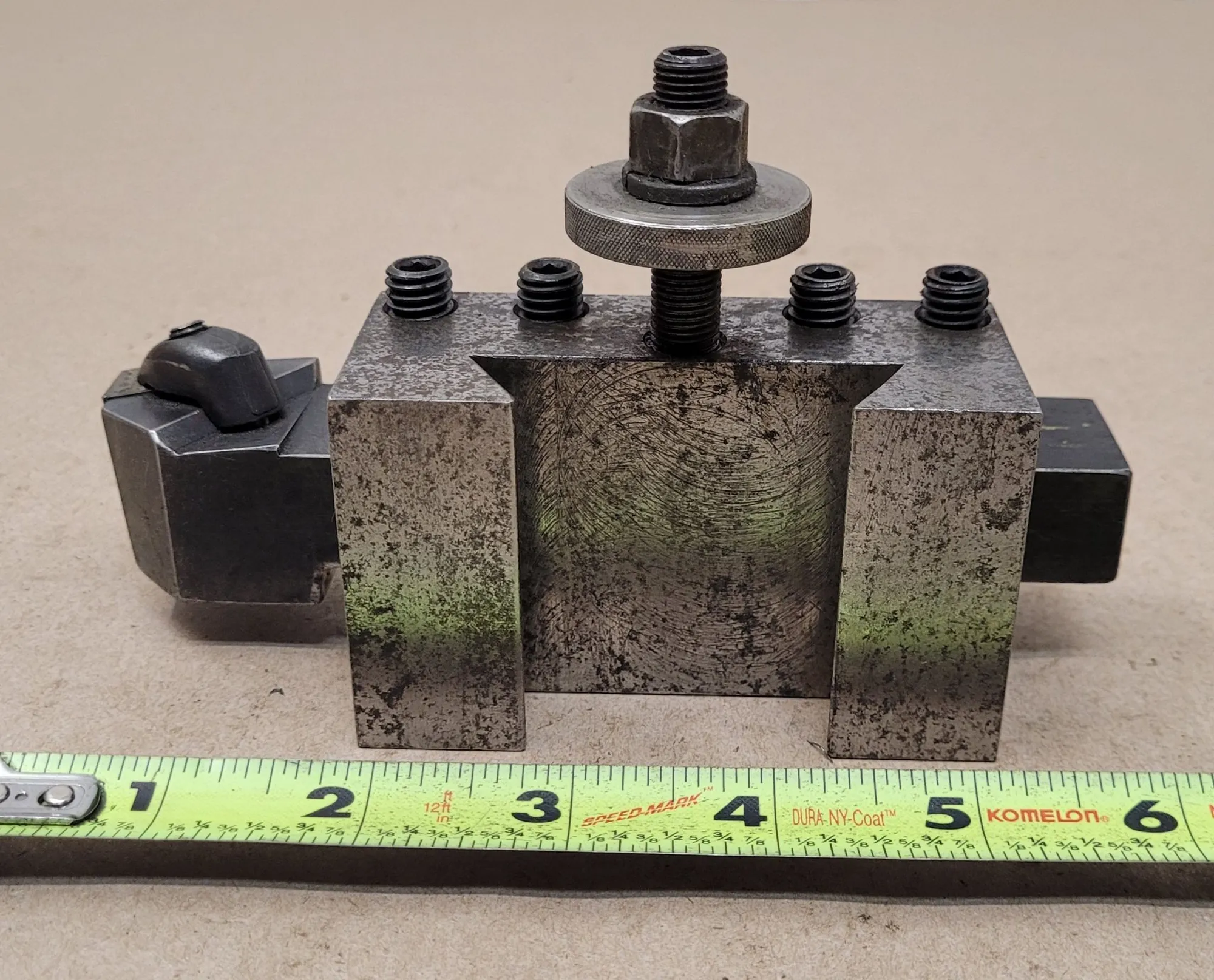

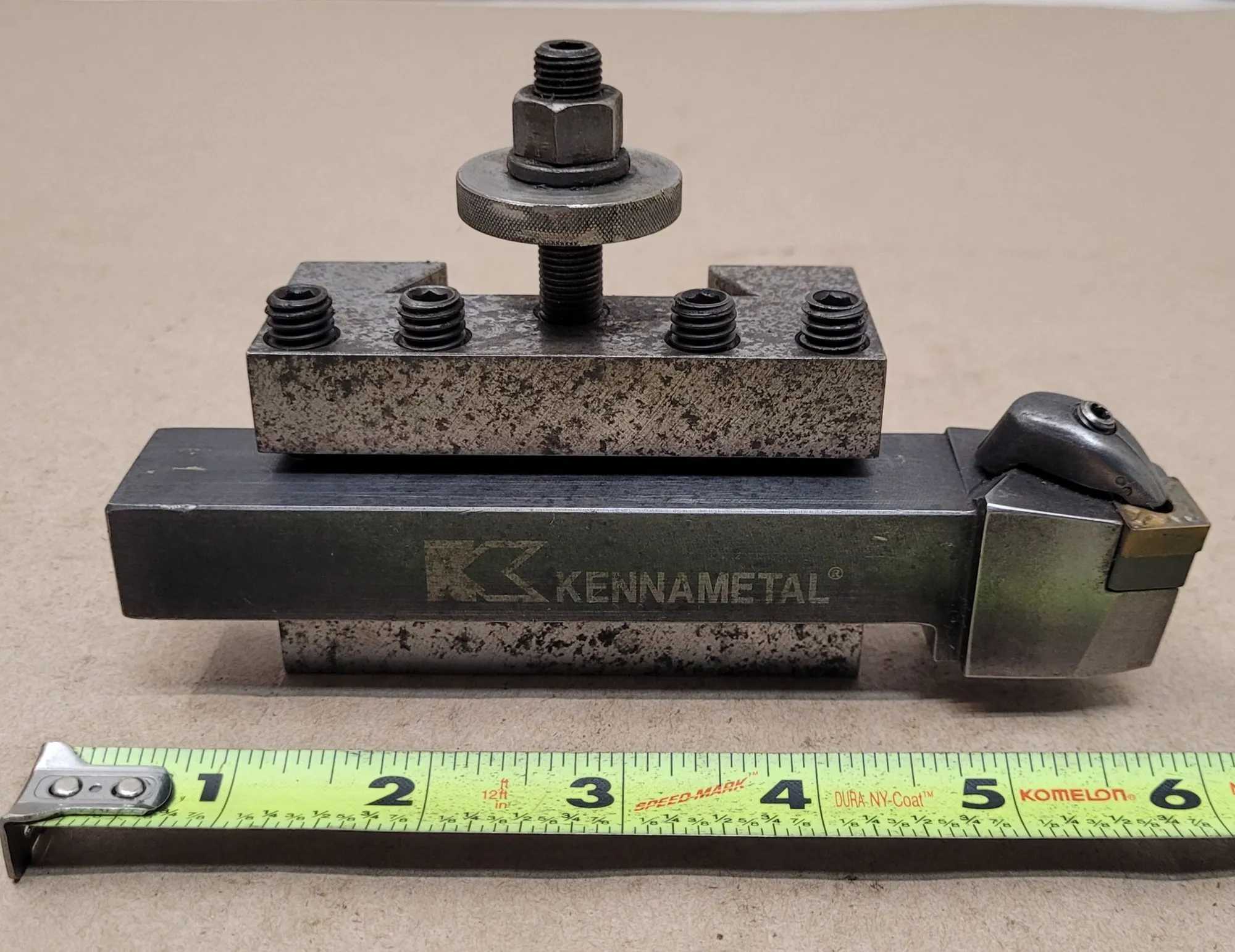

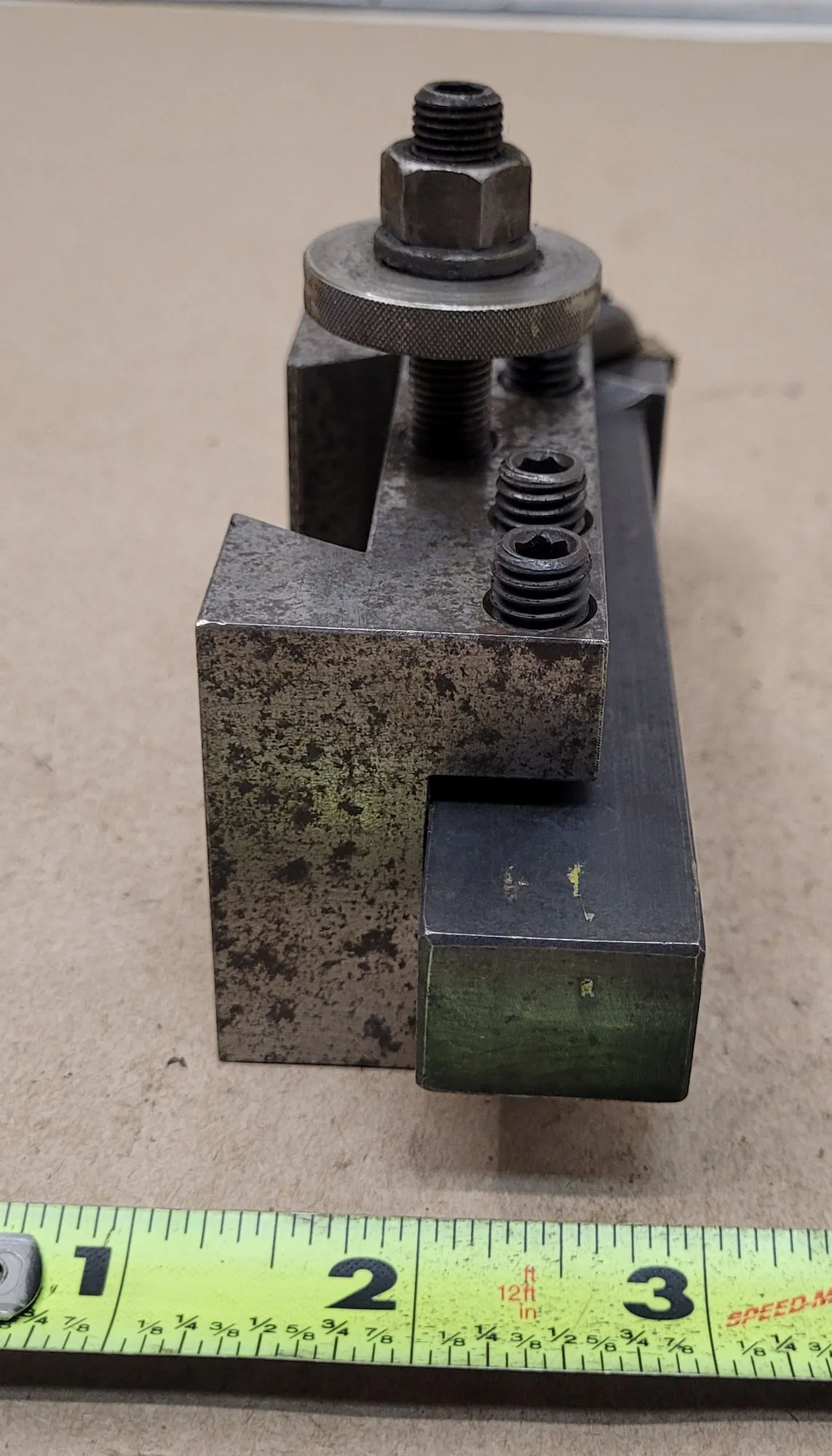

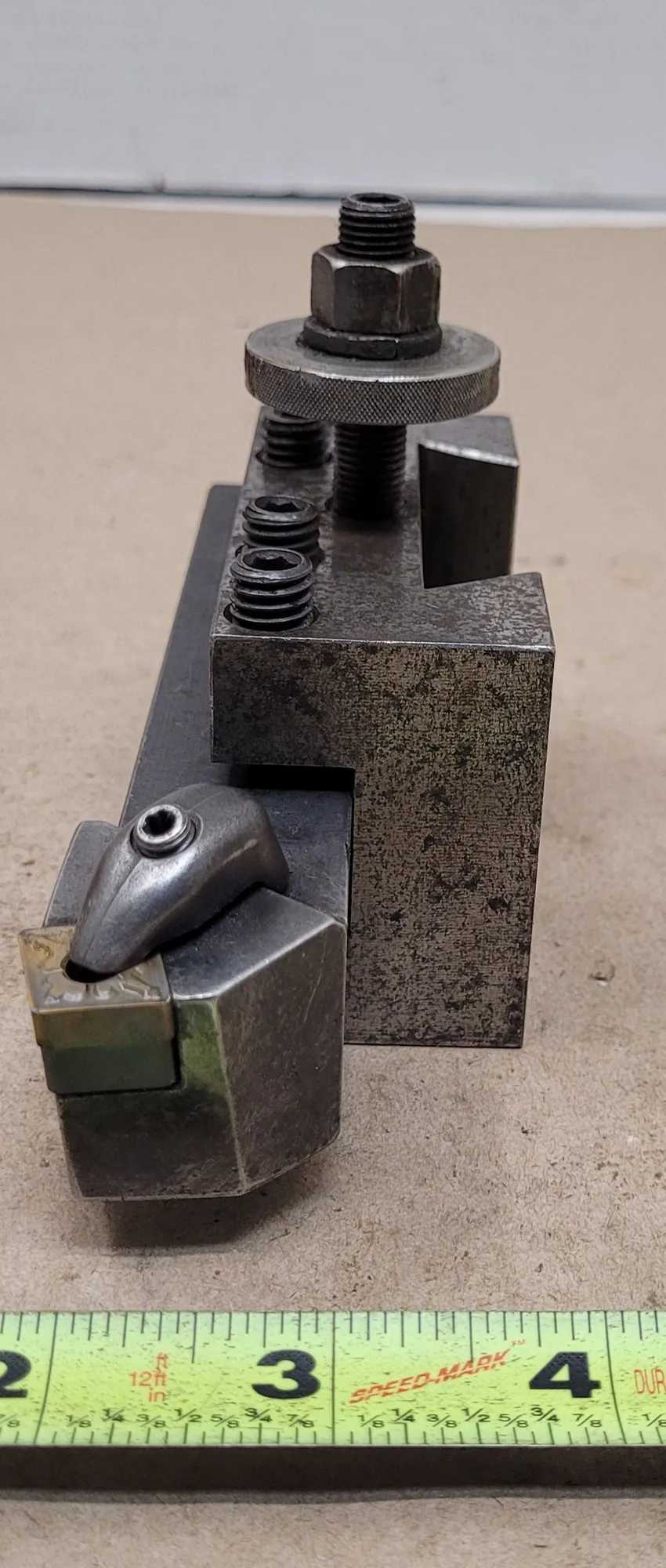

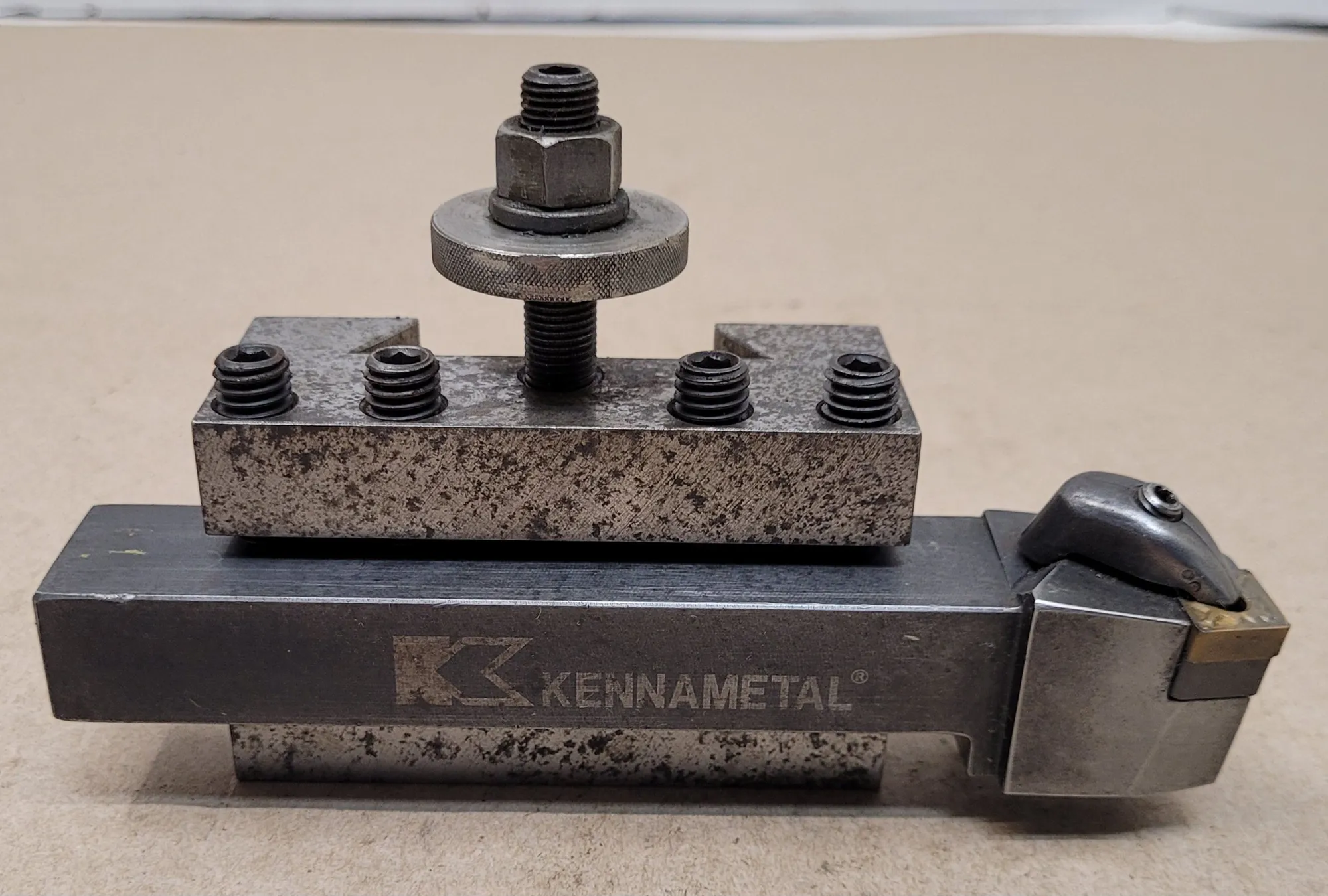

Cxa 1 Lathe Tool Post Holder W/ Kennametal Tool, Lathe Swing 13-18 Inch

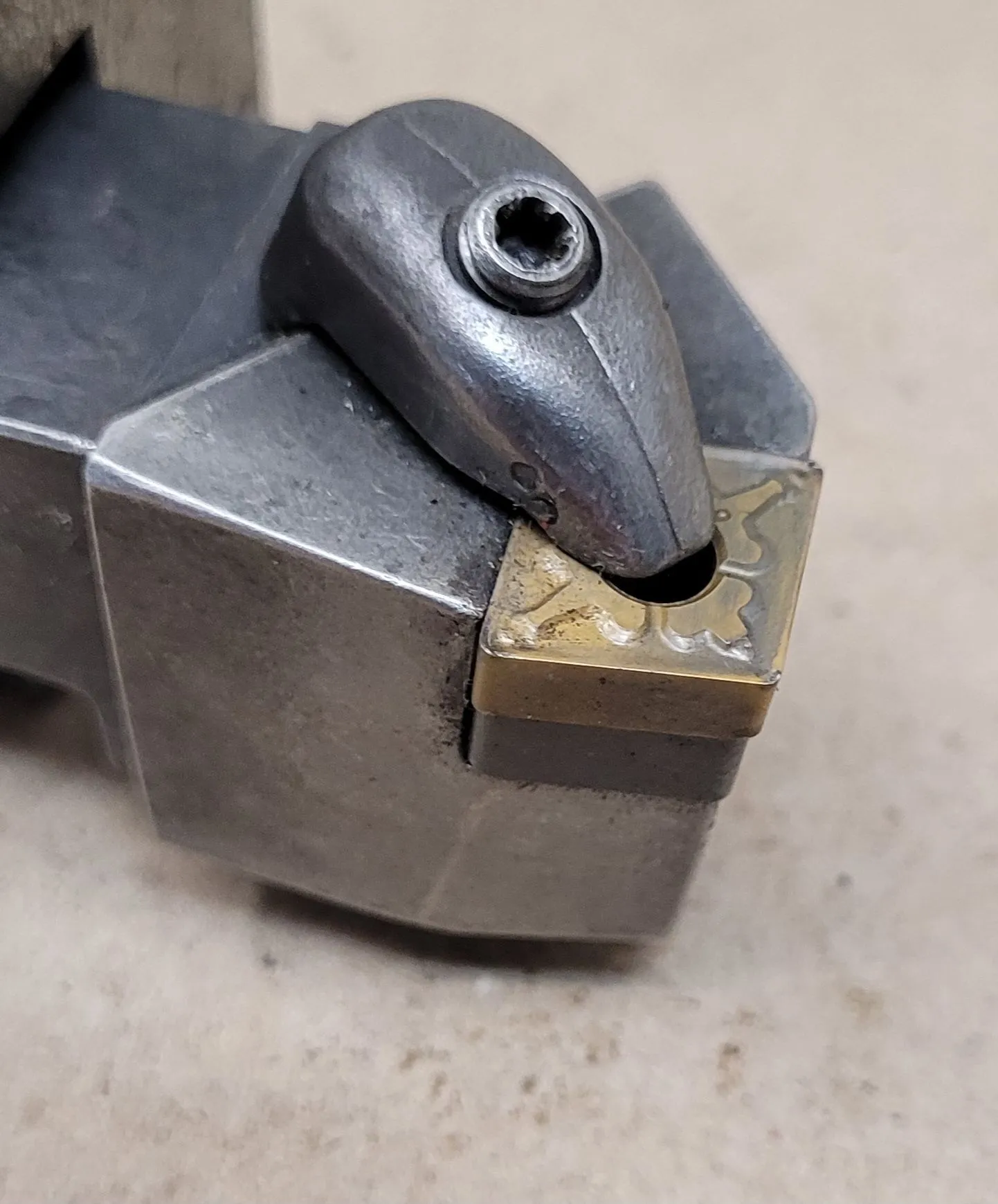

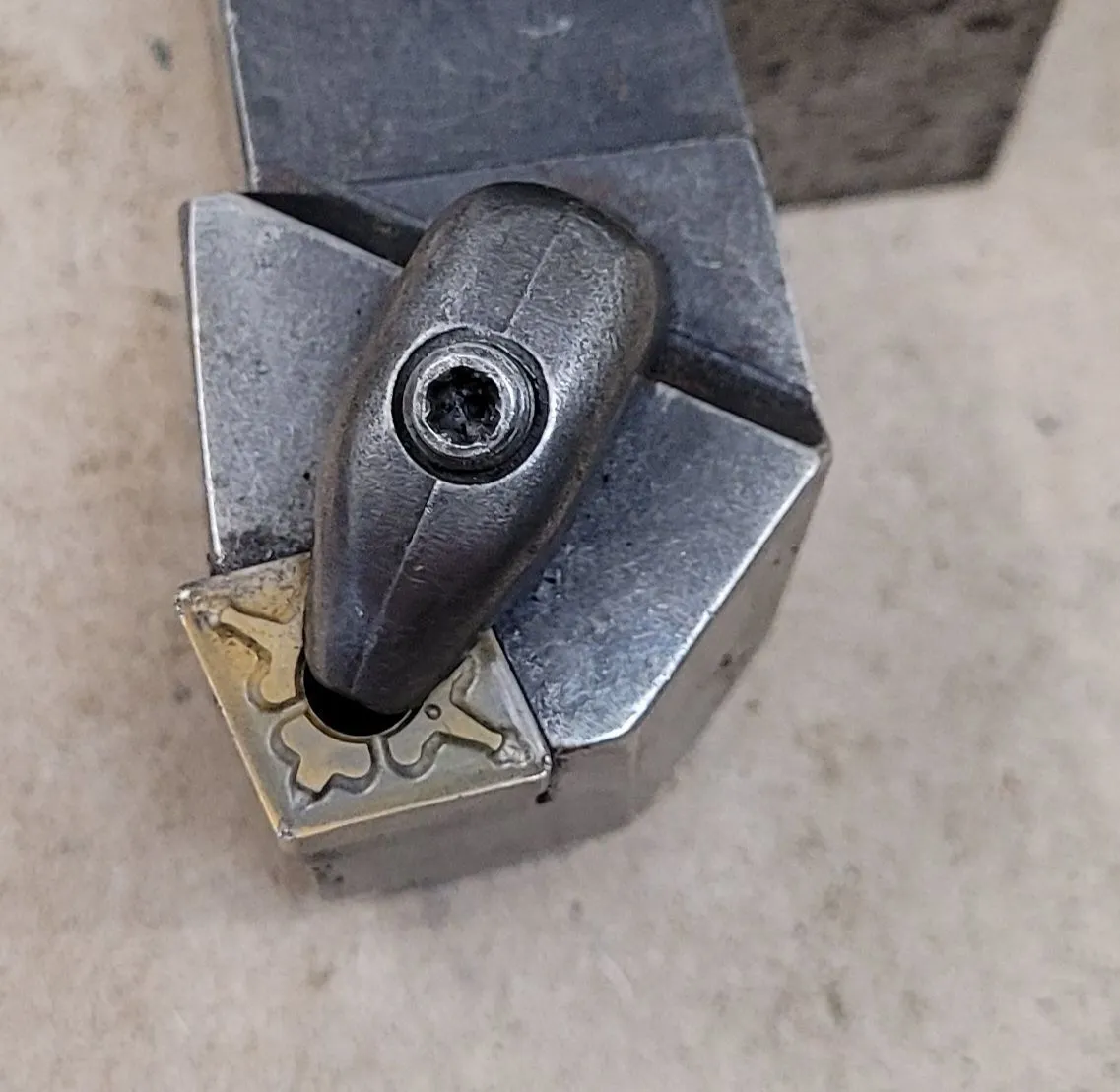

The CXA 1 Lathe Tool Post Holder is designed for use with lathes featuring a swing range of 13 to 18 inches. It incorporates a wedge mechanism with a dimension of 2-1/4 inches, ensuring secure tool clamping. The tool holder has an overall height of 2-1/8 inches and an overall length of 3-1/2 inches, providing a compact and robust structure for machining operations. It accommodates a maximum cutting tool size of 3/4 inch and supports a tool bit range from 1/4 to 3/4 inch, offering versatility for various cutting applications. The centerline height is 1-7/16 inches, aligning the tool precisely for optimal performance. This tool post holder is equipped with a Kennametal tool featuring a 6-inch overall length and a shank size of 1 inch by 3/4 inch, enhancing its cutting capabilities. The design does not support through coolant functionality.
