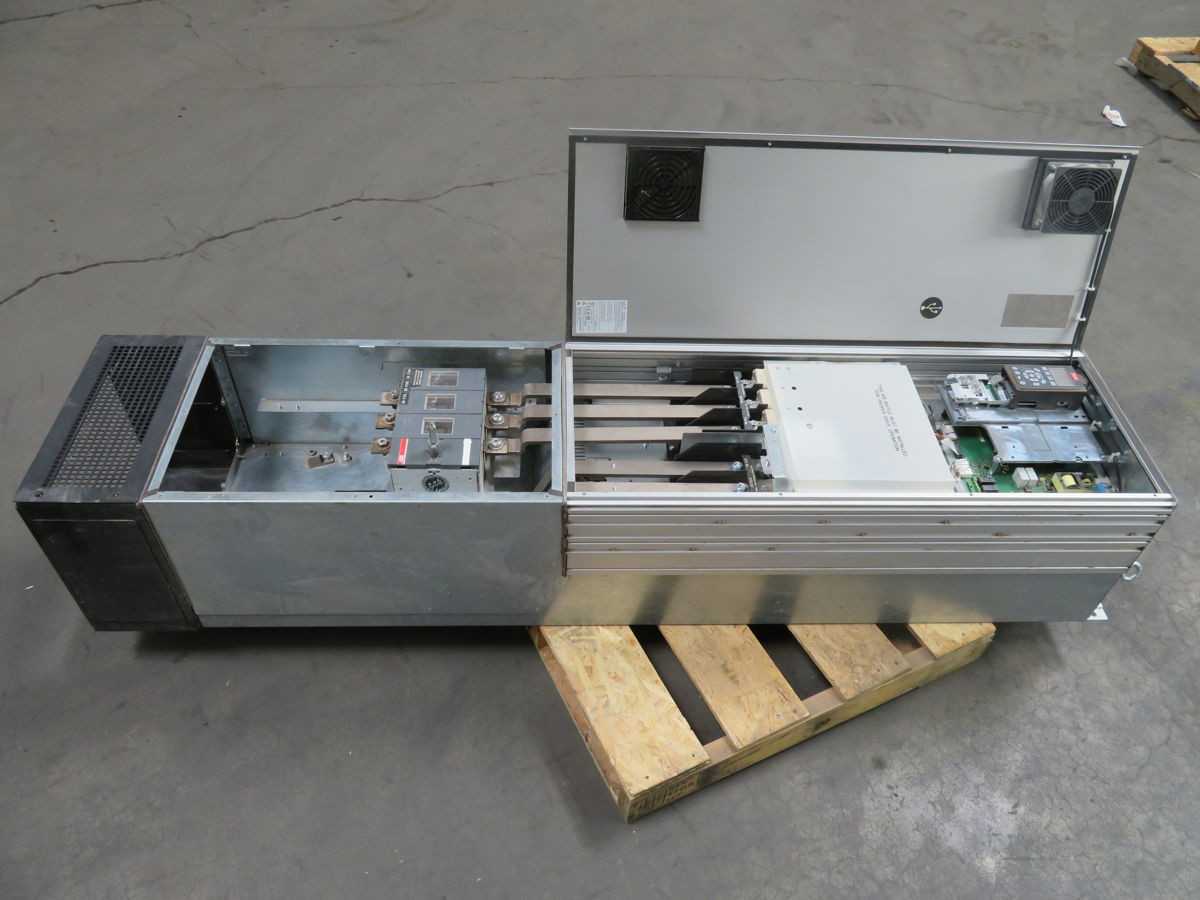

Danfoss FC-202N200T4E54H2XGC3XXSXXXXAXBXCXXXXDX Frequency Drives, 300 HP Power

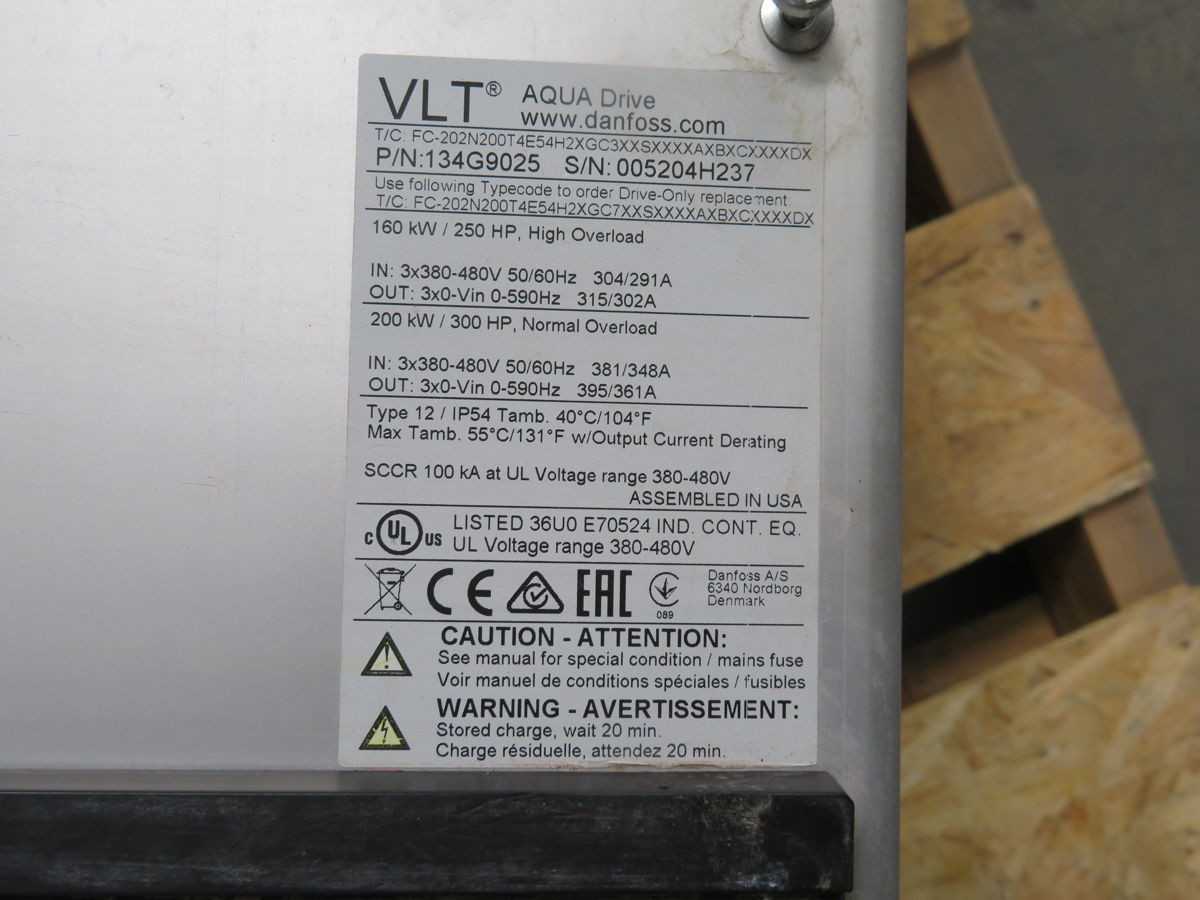

THE DANFOSS FC-202N200T4E54H2XGC3XXSXXXXAXBXCXXXXDX IS A VARIABLE FREQUENCY AC DRIVE FROM THE VLT® AQUA DRIVE FC 202 SERIES, SPECIFICALLY DESIGNED FOR PUMP APPLICATIONS. IT OPERATES WITH A 3-PHASE SUPPLY VOLTAGE RANGING FROM 380 TO 480 VAC. THIS DRIVE PROVIDES A NORMAL DUTY OUTPUT POWER RATING OF 300 HP AND DELIVERS A MAXIMUM OUTPUT CURRENT OF 361 A. THE UNIT FEATURES AN IP54 ENCLOSURE RATING, WHICH IS EQUIVALENT TO NEMA 12, ENSURING PROTECTION AGAINST DUST AND SPLASHING WATER. IT INTEGRATES AN RFI FILTER (CATEGORY C2) AND INCLUDES A MAIN SWITCH WITH A FUSED DISCONNECT. THE DRIVE IS SUPPLIED WITH A GRAPHICAL KEYPAD AND FEATURES COATED PCBS FOR ENHANCED DURABILITY. ITS FRAME SIZE IS E1H.
