DENSO WAVE RC7M-VSA2-2NNM-NB-NNN, Controls For Robots, AC200-230V Power, 8 Axis, SC3 PLD

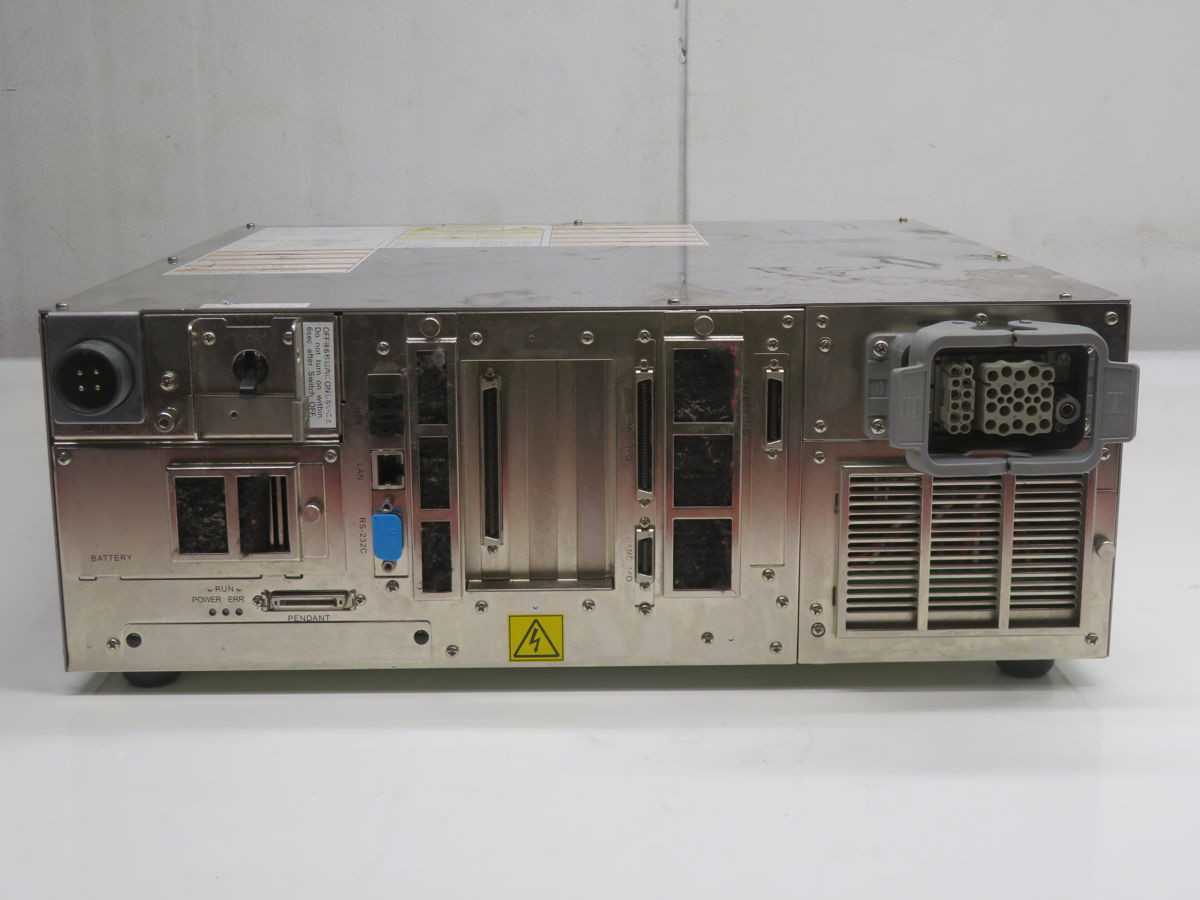

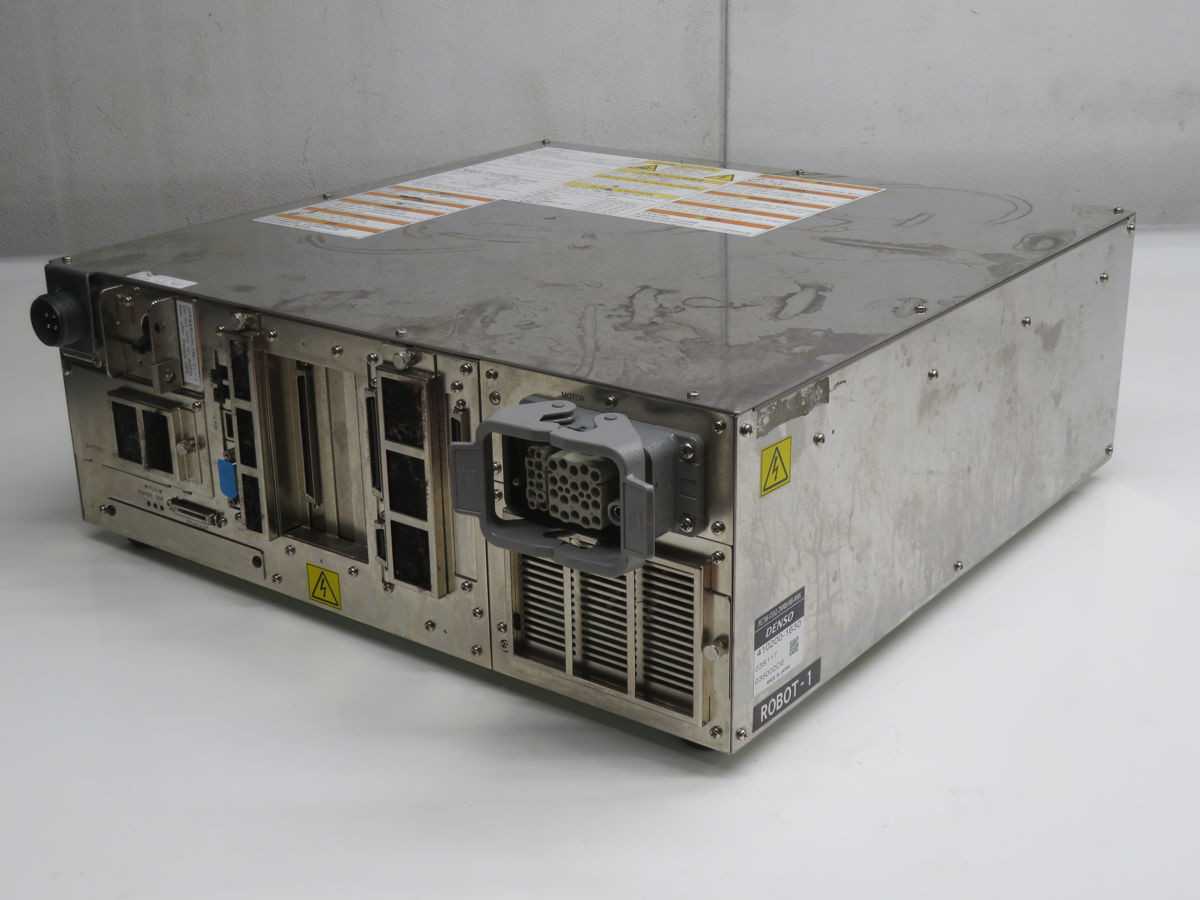

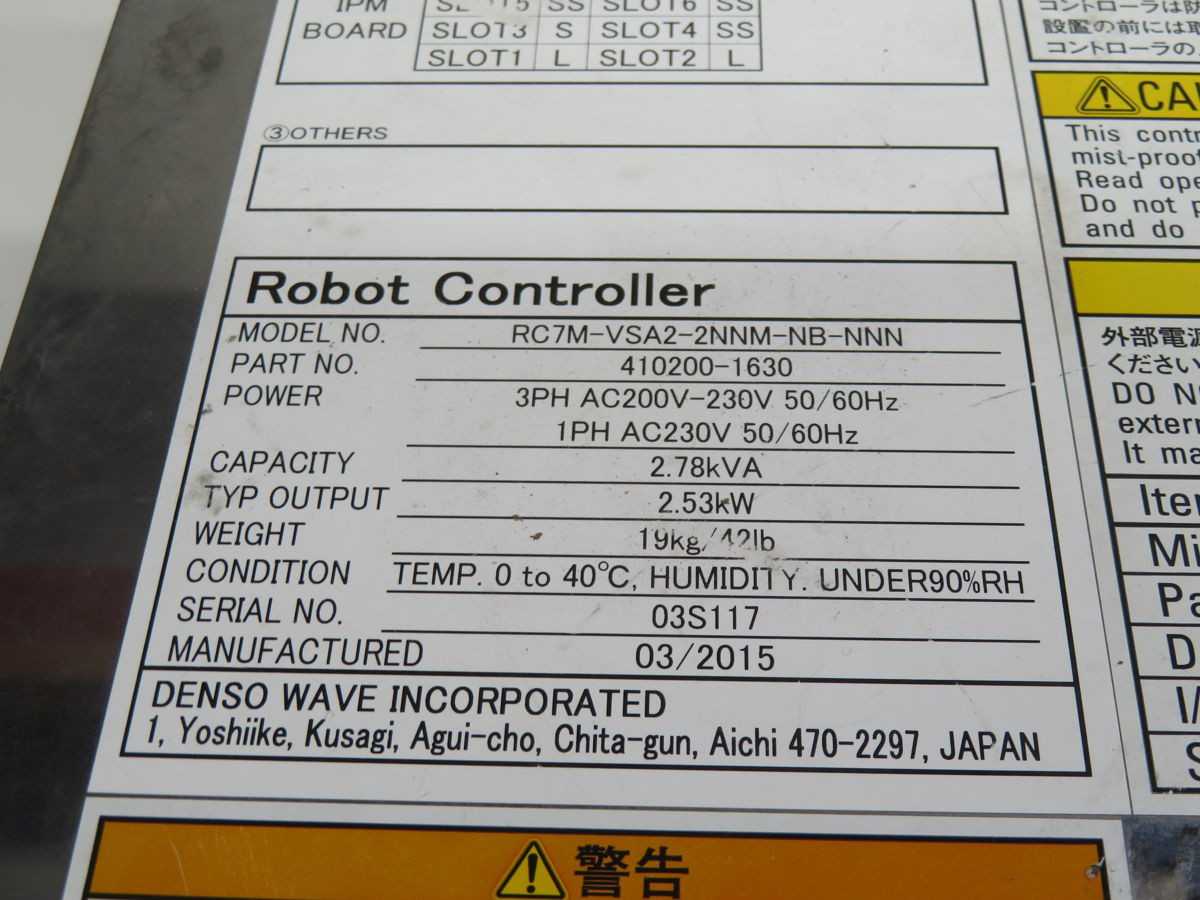

THE DENSO WAVE RC7M-VSA2-2NNM-NB-NNN IS AN INDUSTRIAL ROBOT CONTROLLER ENGINEERED FOR MULTI-AXIS ROBOT SYSTEMS. IT ACCEPTS A PRIMARY POWER INPUT OF 3-PHASE AC200-230V AT 50/60HZ, WITH AN ALTERNATIVE 1-PHASE AC230V AT 50/60HZ. THIS CONTROLLER IS CONFIGURED TO MANAGE UP TO 8 ROBOT AXES. STANDARD COMMUNICATION INTERFACES INCLUDE ETHERNET (100BASE-TX), USB (TYPE A AND B), AND RS-232C. IT PROVIDES INTEGRATED DIGITAL I/O, FEATURING 32 INPUTS AND 32 OUTPUTS, WITH EXPANSION CAPABILITIES. THE UNIT INCORPORATES SAFETY FUNCTIONS COMPLIANT WITH ISO 10218-1, ACHIEVING SAFETY CATEGORY 3 AND PERFORMANCE LEVEL D. PROGRAMMING IS EXECUTED VIA DENSO PACSCRIPT. THE RC7M-VSA2-2NNM-NB-NNN IS DESIGNED FOR INDUSTRIAL OPERATIONAL ENVIRONMENTS AND IS COMPATIBLE WITH RACK-MOUNT INSTALLATIONS, TYPICALLY FEATURING A WIDTH OF 130 MM.
