EATON PXM2260MA65405 AUTOMATION METER, 3-PH, 600V, 5A, 60HZ, 24-48VDC AUX, MODBUS RTU

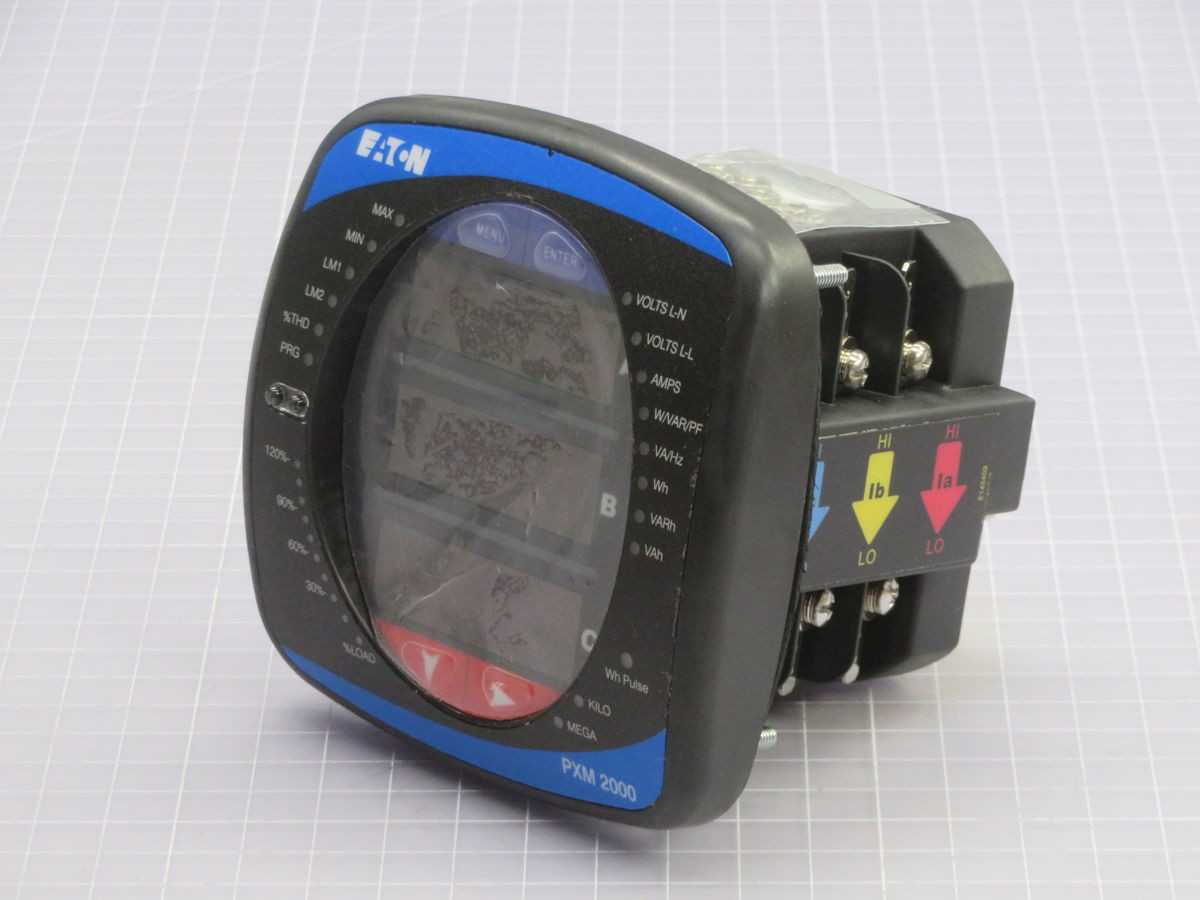

THE EATON PXM2260MA65405 IS AN XPERT METER DESIGNED FOR AUTOMATION APPLICATIONS, FUNCTIONING AS A SINGLE-POINT REVENUE-GRADE ENERGY METER. IT SUPPORTS MEASUREMENT ACROSS 3-PHASE (4-WIRE WYE, 3-WIRE DELTA) AND 1-PHASE ELECTRICAL CONFIGURATIONS. THE DEVICE IS ENGINEERED TO ACCEPT VOLTAGE INPUTS UP TO 600VAC LINE-TO-LINE AND 347VAC LINE-TO-NEUTRAL. CURRENT MEASUREMENT IS PERFORMED NOMINALLY AT 5A VIA EXTERNAL CURRENT TRANSFORMERS. ITS OPERATIONAL FREQUENCY IS 60 HZ. THE METER REQUIRES AN AUXILIARY POWER SUPPLY OF 24-48V DC FOR ITS OPERATIONAL FUNCTIONS. COMMUNICATION CAPABILITIES INCLUDE MODBUS RTU PROTOCOL FACILITATED THROUGH AN RS485 INTERFACE. AN INTEGRATED LCD PROVIDES LOCAL DATA VISUALIZATION. THE UNIT IS DESIGNED FOR VERSATILE INSTALLATION, ACCOMMODATING BOTH PANEL AND DIN RAIL MOUNTING CONFIGURATIONS.
