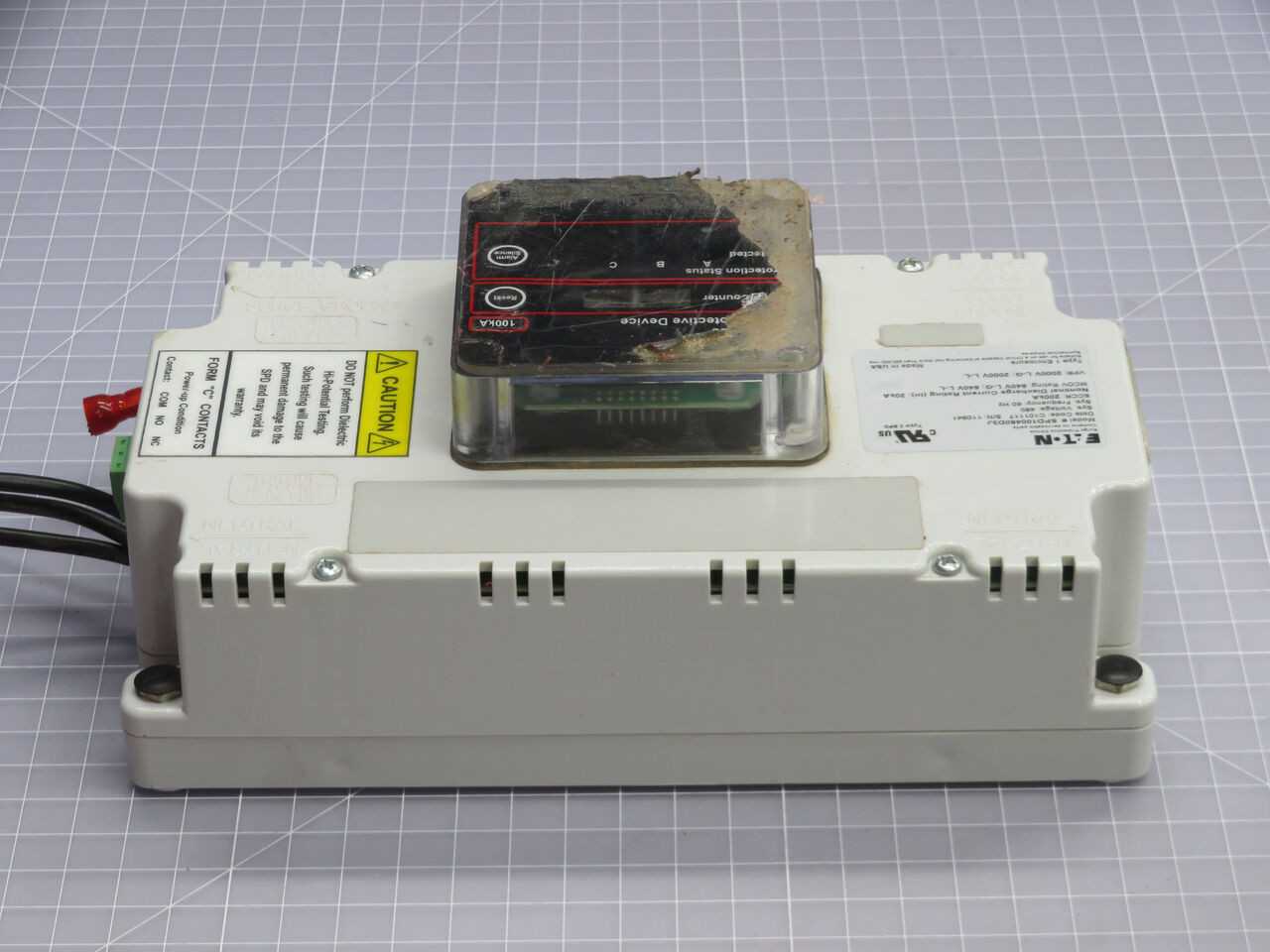

EATON SPD100480D3J Surge Suppressor, 480V 3-Phase, 200KA Surge, 20KA In, 200 KAIC SCCR

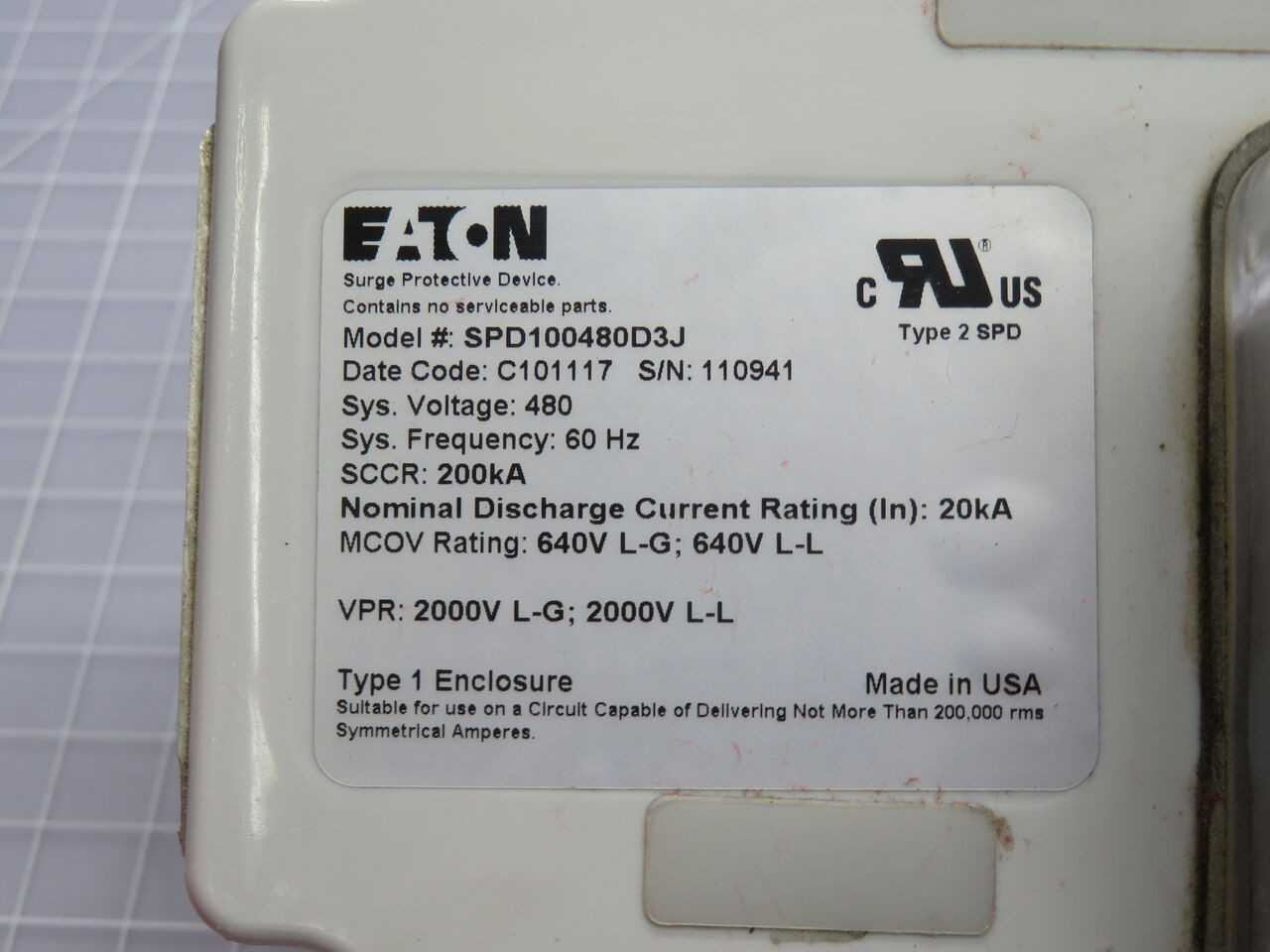

THE EATON SPD100480D3J IS A TYPE 2 SURGE PROTECTIVE DEVICE DESIGNED FOR 480V, 60HZ, 3-PHASE ELECTRICAL SYSTEMS, COMMONLY USED IN MOTOR CONTROL CENTER (MCC) APPLICATIONS. IT FEATURES A MAXIMUM SURGE CURRENT CAPACITY OF 200KA AND A NOMINAL DISCHARGE CURRENT (IN) OF 20KA. THE DEVICE HAS A SHORT CIRCUIT CURRENT RATING (SCCR) OF 200 KAIC. MAXIMUM CONTINUOUS OPERATING VOLTAGES (MCOV) ARE RATED AT 320V LINE-NEUTRAL, 320V LINE-GROUND, 640V LINE-LINE, AND 320V NEUTRAL-GROUND. VOLTAGE PROTECTION RATINGS (VPR) INCLUDE 1500V LINE-NEUTRAL, 1800V LINE-GROUND, 2000V LINE-LINE, AND 1000V NEUTRAL-GROUND. THE UNIT IS HOUSED IN A NEMA 1 ENCLOSURE.
