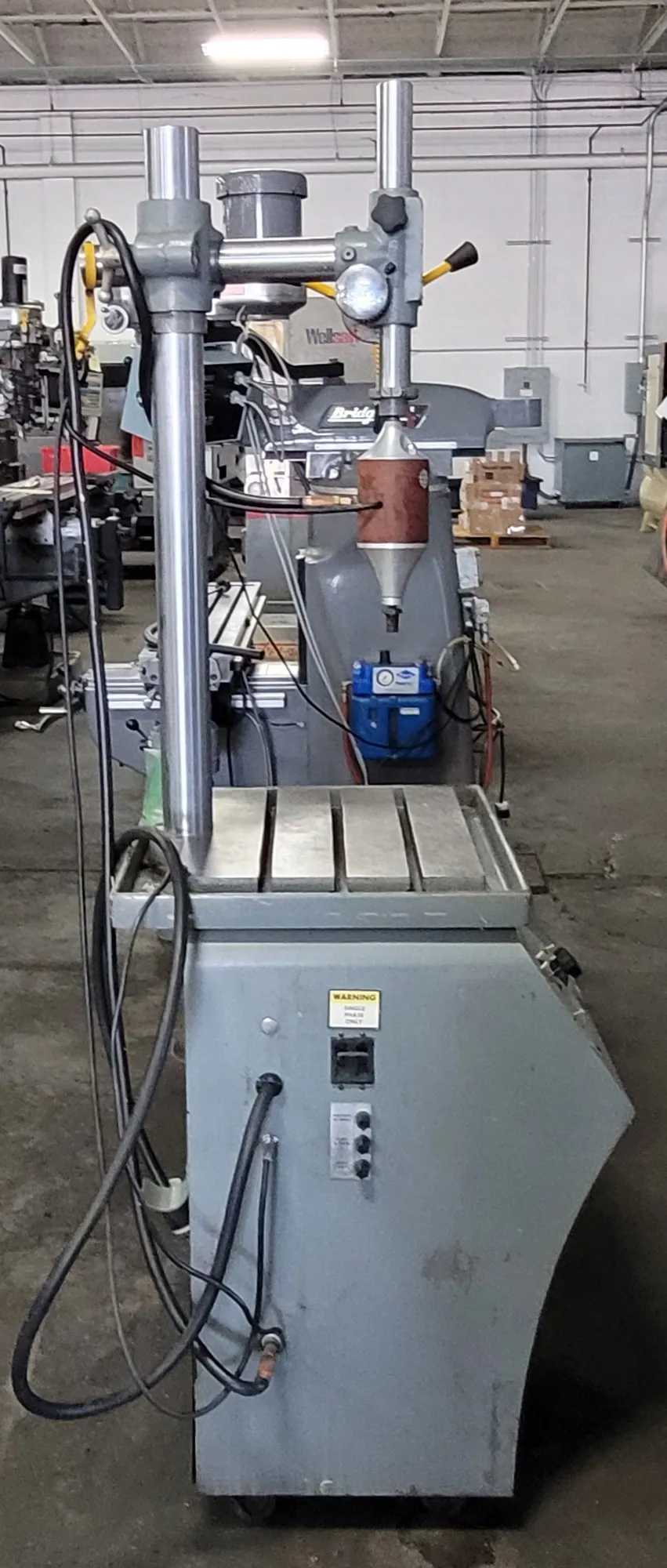

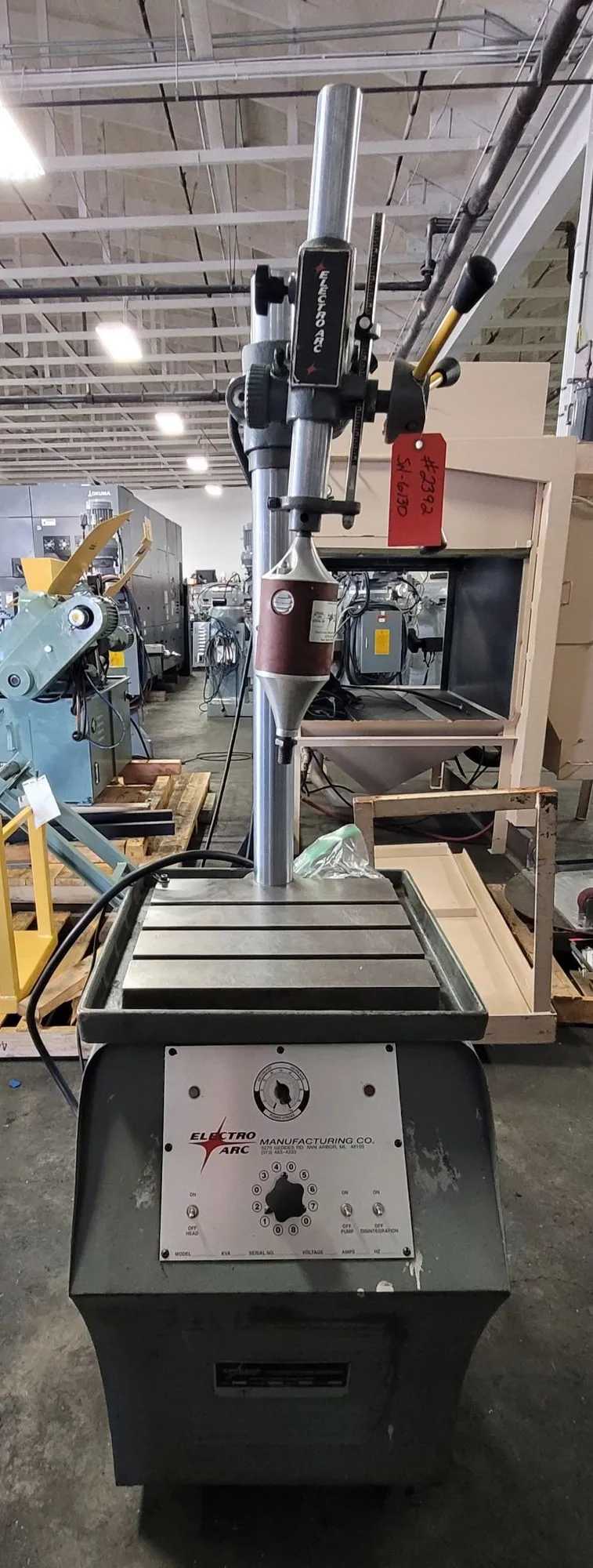

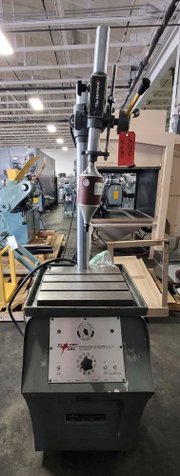

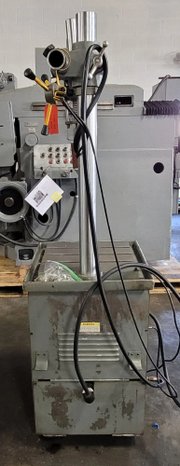

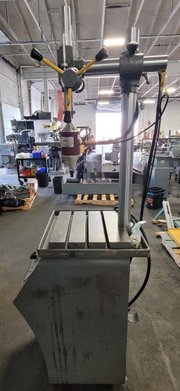

Electro Arc 2SE EDM Hole Drilling Machine, 20X18 Table, 10 kVA, 220V, 9'' Z-Axis

Asking Price:
$6,950.00

Financing From: $115/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

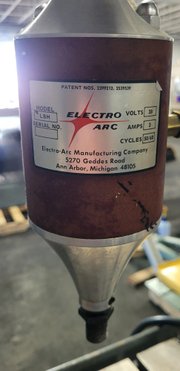

Table-W - 20" Table-L - 18" Power - 10 kV·A Dimensions - 15 x 2.25 Weight - 390 Electro Arc Disintegration Machine/Tap Disintegrator. Model 2-SE KVA 10 Electrical: 220 Volts. Frequency: 50/60 Hz. Serial No. 6130 This 10 KVA Electro Arc 2-SE can salvage parts without damage in minutes –disintegrate broken screws, fasteners, bolts and taps – no heat distortion or thread damage The sturdy single crossarm provides rigidity and ease of setup. Making positioning easy Arc•er Head Manual Feed 30” (762 mm) of work space between spindle and table Easy to secure parts to the work surface Minimal maintenance required Compact, Durable ARCER Head. This portable disintegrator head provides reliable, accurate heavy-duty service with minimal maintenance. The state-of-the art LED Amp Meter right in the body makes process control easy. Head is 12 1/2 ” long overall and weighs 5.5 lb. A 1/2 ” diameter, 2” long straight shank allows the head to be used remotely in fixtures or with other machine tools. Spring Feed Assists operator in feeding the disintegrator head in a continuous movement. Manually adjusted. Adjustable depth stop with automatic shutoff/retract. Standard Features The head works by creating 50/60 positive arcs per second at the target metal with a molybdenum electrode. Provides 9” (229 mm) of rack and pinion travel. Built-in LED current monitoring indicator color-coded to assist operator feed control. Operate at any angle. Can be rotated 360 degrees around the crossarm axis. Feed scale graduated in 1 /16 ” (1 mm) increments. CROSSARM: 2 1/4 " diameter 15" long hard-chrome plated radial crossarm. 360° rotation around the column. Manual crossarm and rotation locks. COLUMN : Hard chrome plated, 2 3/4 " diameter, 36" high. Maximum work height from head: 17" to the table; 50" to the floor.12" lift rack for raising/lowering the crossarm. Heavy reinforced frame construction. 34" high. Ground, cast iron work top 20" wide x 18" deep with five 1/2 " “T” slots. Recessed control panel; lighted push buttons; indicator light for low coolant level; external fuses; master stop; four heavy-duty ball bearing casters. Ventilating louvres. Storage drawer for electrodes and collets. Built-in coolant tank. Wire mesh cartridge filter intake. Pump: 2 GPM, 90 PSI. Motor 1 /3 HP, single phase, 120 volt. Power coolant cable (conducts both liquid coolant and low-voltage current) 7 1 /2 ft. (2.3 m). Approximate weights: Net: 390 lb. Gross domestic: 430 lb. Gross export: 450 lb. Electro Arc Disintegration Machine/Tap Disintegrator. Model 2-SE KVA 10 Electrical: 220 Volts. Frequency: 50/60 Hz. Serial No. 6130 This 10 KVA Electro Arc 2-SE can salvage parts without damage in minutes –disintegrate broken screws, fasteners, bolts and taps – no heat distortion or thread damage The sturdy single crossarm provides rigidity and ease of setup. Making positioning easy Arc•er Head Manual Feed 30” (762 mm) of work space between spindle and table Easy to secure parts to the work surface Minimal maintenance required Compact, Durable ARCER Head. This portable disintegrator head provides reliable, accurate heavy-duty service with minimal maintenance. The state-of-the art LED Amp Meter right in the body makes process control easy. Head is 12 1/2 ” long overall and weighs 5.5 lb. A 1/2 ” diameter, 2” long straight shank allows the head to be used remotely in fixtures or with other machine tools. Spring Feed Assists operator in feeding the disintegrator head in a continuous movement. Manually adjusted. Adjustable depth stop with automatic shutoff/retract. Standard Features The head works by creating 50/60 positive arcs per second at the target metal with a molybdenum electrode. Provides 9” (229 mm) of rack and pinion travel. Built-in LED current monitoring indicator color-coded to assist operator feed control. Operate at any angle. Can be rotated 360 degrees around the crossarm axis. Feed scale graduated in 1 /16 ” (1 mm) increments. CROSSARM: 2 1/4 " diameter 15" long hard-chrome plated radial crossarm. 360° rotation around the column. Manual crossarm and rotation locks. COLUMN : Hard chrome plated, 2 3/4 " diameter, 36" high. Maximum work height from head: 17" to the table; 50" to the floor.12" lift rack for raising/lowering the crossarm. Heavy reinforced frame construction. 34" high. Ground, cast iron work top 20" wide x 18" deep with five 1/2 " “T” slots. Recessed control panel; lighted push buttons; indicator light for low coolant level; external fuses; master stop; four heavy-duty ball bearing casters. Ventilating louvres. Storage drawer for electrodes and collets. Built-in coolant tank. Wire mesh cartridge filter intake. Pump: 2 GPM, 90 PSI. Motor 1 /3 HP, single phase, 120 volt. Power coolant cable (conducts both liquid coolant and low-voltage current) 7 1 /2 ft. (2.3 m). Approximate weights: Net: 390 lb. Gross domestic: 430 lb. Gross export: 450 lb. Electro Arc Disintegration Machine/Tap Disintegrator. Model 2-SE KVA 10 Electrical: 220 Volts. Frequency: 50/60 Hz. Serial No. 6130 This 10 KVA Electro Arc 2-SE can salvage parts without damage in minutes –disintegrate broken screws, fasteners, bolts and taps – no heat distortion or thread damage The sturdy single crossarm provides rigidity and ease of setup. Making positioning easy Arc•er Head Manual Feed 30” (762 mm) of work space between spindle and table Easy to secure parts to the work surface Minimal maintenance required Compact, Durable ARCER Head. This portable disintegrator head provides reliable, accurate heavy-duty service with minimal maintenance. The state-of-the art LED Amp Meter right in the body makes process control easy. Head is 12 1/2 ” long overall and weighs 5.5 lb. A 1/2 ” diameter, 2” long straight shank allows the head to be used remotely in fixtures or with other machine tools. Spring Feed Assists operator in feeding the disintegrator head in a continuous movement. Manually adjusted. Adjustable depth stop with automatic shutoff/retract. Standard Features The head works by creating 50/60 positive arcs per second at the target metal with a molybdenum electrode. Provides 9” (229 mm) of rack and pinion travel. Built-in LED current monitoring indicator color-coded to assist operator feed control. Operate at any angle. Can be rotated 360 degrees around the crossarm axis. Feed scale graduated in 1 /16 ” (1 mm) increments. CROSSARM: 2 1/4 " diameter 15" long hard-chrome plated radial crossarm. 360° rotation around the column. Manual crossarm and rotation locks. COLUMN : Hard chrome plated, 2 3/4 " diameter, 36" high. Maximum work height from head: 17" to the table; 50" to the floor.12" lift rack for raising/lowering the crossarm. Heavy reinforced frame construction. 34" high. Ground, cast iron work top 20" wide x 18" deep with five 1/2 " “T” slots. Recessed control panel; lighted push buttons; indicator light for low coolant level; external fuses; master stop; four heavy-duty ball bearing casters. Ventilating louvres. Storage drawer for electrodes and collets. Built-in coolant tank. Wire mesh cartridge filter intake. Pump: 2 GPM, 90 PSI. Motor 1 /3 HP, single phase, 120 volt. Power coolant cable (conducts both liquid coolant and low-voltage current) 7 1 /2 ft. (2.3 m). Approximate weights: Net: 390 lb. Gross domestic: 430 lb. Gross export: 450 lb.

Core Specifications

Manufacturer: ELECTRO ARC

Model: 2SE

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
