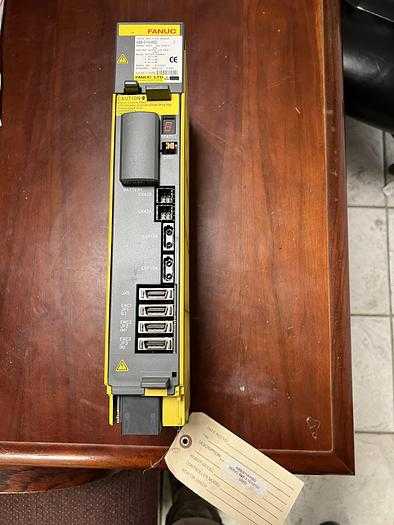

FANUC A06B-6114-H302 AISV-10/10/10 Servo Amplifier, 3A, 283-339VAC, 1.5kW, 240VAC

THE FANUC A06B-6114-H302 IS A SERIES ALPHA I TRIPLE-AXIS SERVO AMPLIFIER MODULE, SPECIFICALLY MODEL TYPE AISV-10/10/10. DESIGNED FOR CNC AND ROBOTIC AUTOMATION, THIS MODULE SUPPORTS 3-AXIS CONTROL WITH A 3 AMP RATING PER AXIS. IT OPERATES WITH A RATED INPUT VOLTAGE RANGE OF 283–339 VAC AND PROVIDES A POWER RATING OF 1.5 KW. THE MAXIMUM OUTPUT VOLTAGE IS RATED AT 240 VAC. PART OF THE ENERGY-EFFICIENT ALPHA I SERIES, THE UNIT UTILIZES POWER-SOURCE REGENERATION AND LOW POWER-LOSS DEVICES TO OPTIMIZE MACHINE PERFORMANCE AND REDUCE ENERGY CONSUMPTION. THE MODULE'S DIMENSIONS ARE APPROXIMATELY 3.5 INCHES BY 3.0 INCHES, WITH A WEIGHT OF 6 LBS 8 OZ (2.9 KG). IT FEATURES A COMPACT DESIGN WITH INTEGRATED LEAKAGE DETECTION AND IS COMPATIBLE WITH VARIOUS FANUC CNC SYSTEMS. THE TARIFF CODE FOR THIS COMPONENT IS 8504909550. NO YEAR OF MANUFACTURE IS SPECIFIED IN THE PROVIDED DOCUMENTATION.
