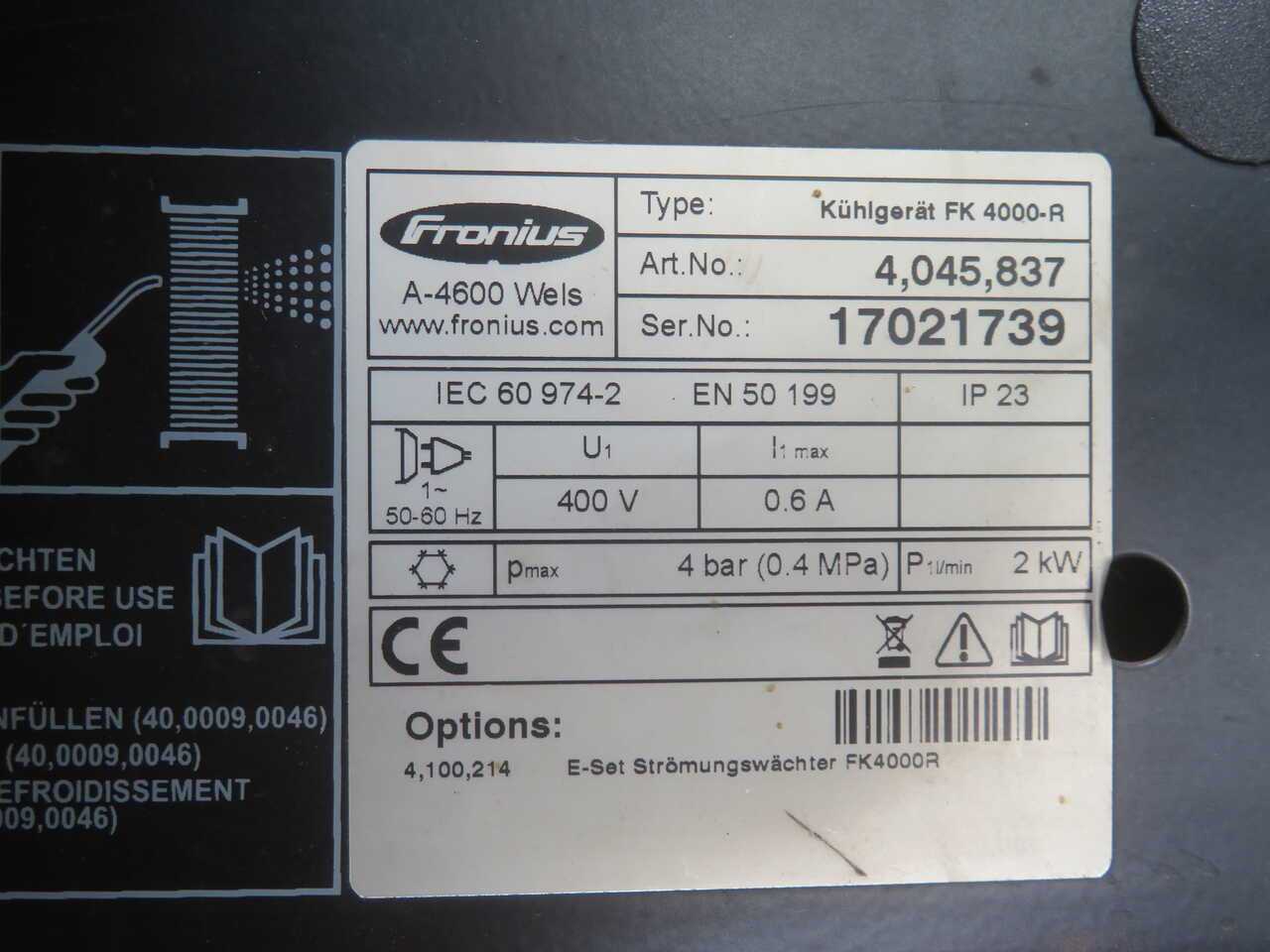

FRONIUS 4,045,837 FK 4000-R WATER-COOLING UNIT 400V 50-60HZ 2KW 4BAR 0.6A

THE FRONIUS FK 4000-R IS A WATER-COOLING UNIT DESIGNED FOR INTEGRATION WITH WELDING SYSTEMS, SPECIFICALLY COMPATIBLE WITH TRANSSYNERGIC 4000/5000, TRANSPULS SYNERGIC 2700/3200/4000/5000, TRANSTIG 2200/4000/5000, AND MAGICWAVE 1700/2200/4000/5000 SERIES POWER SOURCES. THIS COOLING UNIT OPERATES ON A MAINS FREQUENCY OF 50-60 HZ WITH A NOMINAL MAINS VOLTAGE OF 400 V AND A CURRENT CONSUMPTION OF 0.6 A. IT DELIVERS A COOLING CAPACITY OF 2 KW AND IS CAPABLE OF MAINTAINING A MAXIMUM COOLANT PRESSURE OF 4 BAR (0.4 MPA). THE DEVICE IS ENGINEERED TO SUPPORT PROFESSIONAL TIG AND MIG/MAG WELDING APPLICATIONS BY REGULATING THE TEMPERATURE OF CONNECTED LIQUID-COOLED TORCHES TO ENSURE STABLE OPERATION AND EXTEND THE SERVICE LIFE OF CONSUMABLE PARTS. STANDARD AMBIENT OPERATING CONDITIONS FOR THE EQUIPMENT RANGE FROM -10 °C TO +40 °C (14 °F TO 104 °F), WITH RELATIVE HUMIDITY LIMITS UP TO 50% AT 40 °C AND UP TO 90% AT 20 °C. STORAGE AND TRANSPORT TEMPERATURE LIMITS RANGE FROM -20 °C TO +55 °C (-4 °F TO 131 °F). THE UNIT FUNCTIONS EFFICIENTLY AT ALTITUDES UP TO 2000 METERS ABOVE SEA LEVEL. IT FEATURES A MAXIMUM SOUND POWER LEVEL OF LESS THAN 80 DB(A) DURING IDLING AND THE POST-OPERATION COOLING PHASE. THE UNIT CAN BE OPTIONALLY EQUIPPED WITH AN AUTOTRANSFORMER OR A FLOW MONITOR SYSTEM TO PROVIDE AUTOMATIC SAFETY SHUT-OFFS FOR THE CONNECTED POWER SOURCE IF A DROP IN COOLANT FLOW IS DETECTED.
