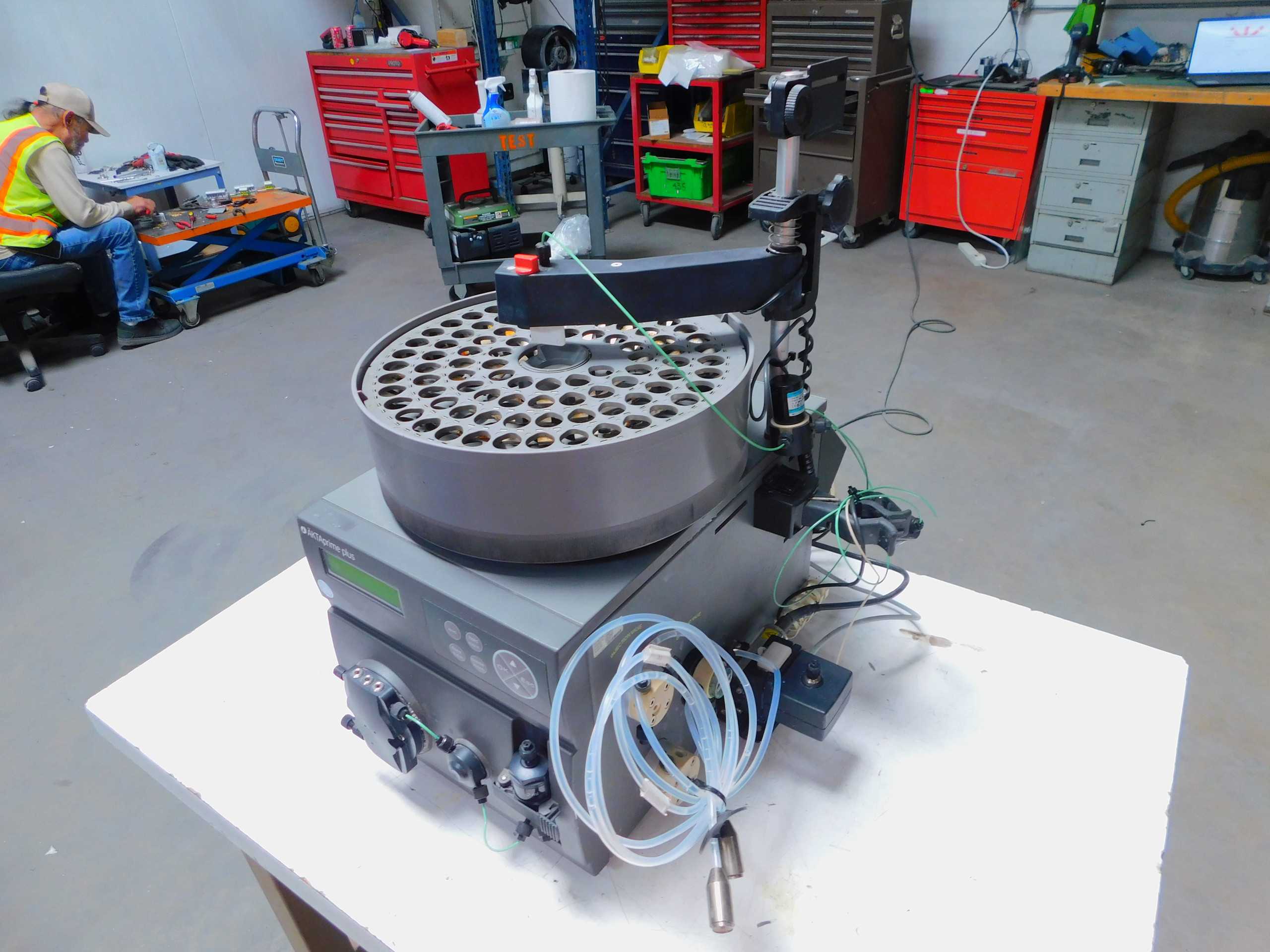

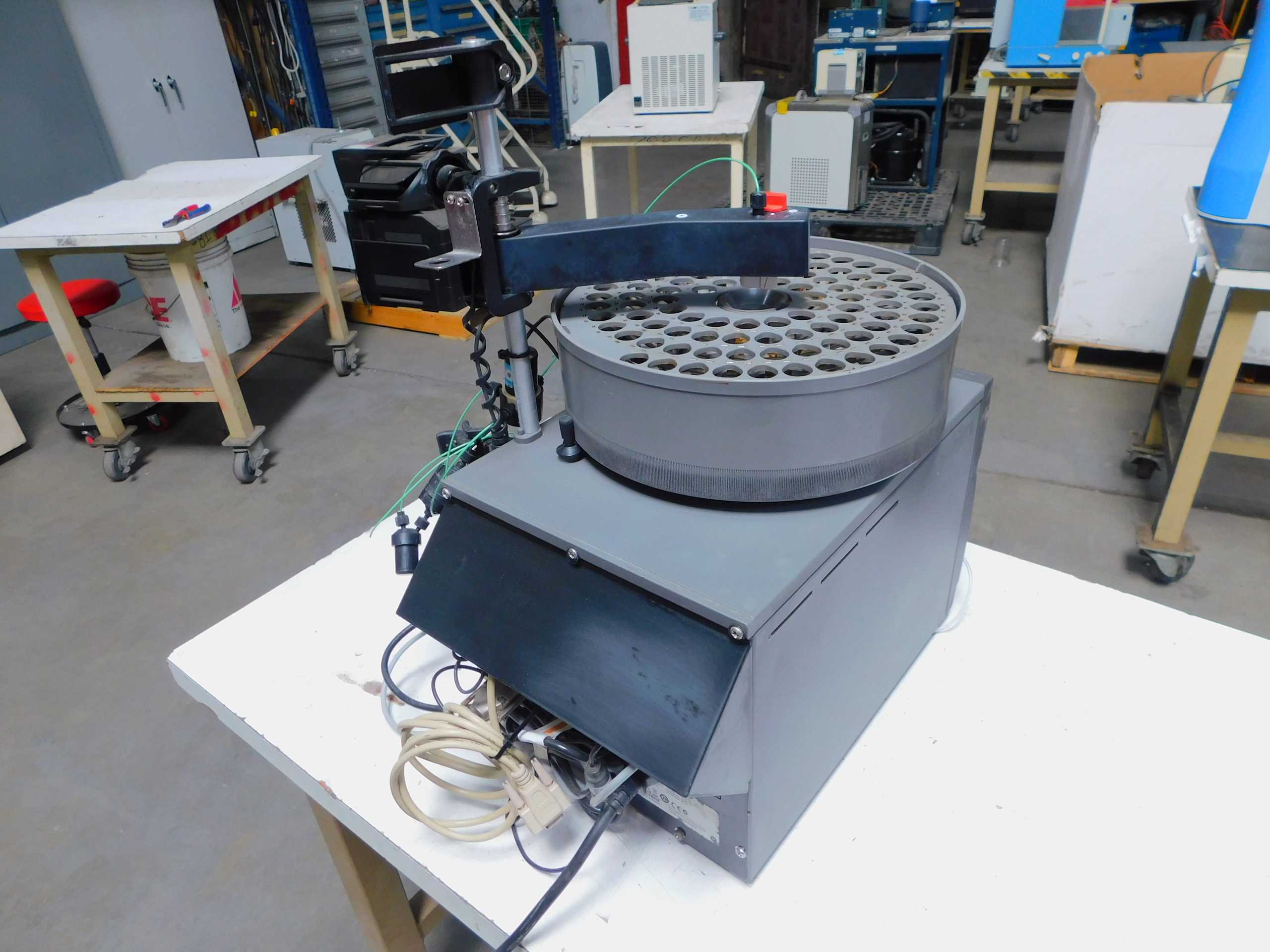

GE Akta Prime Plus Liquid Chromatography System 120VAC 1Phase 0.1-50mL/Min 1MPa

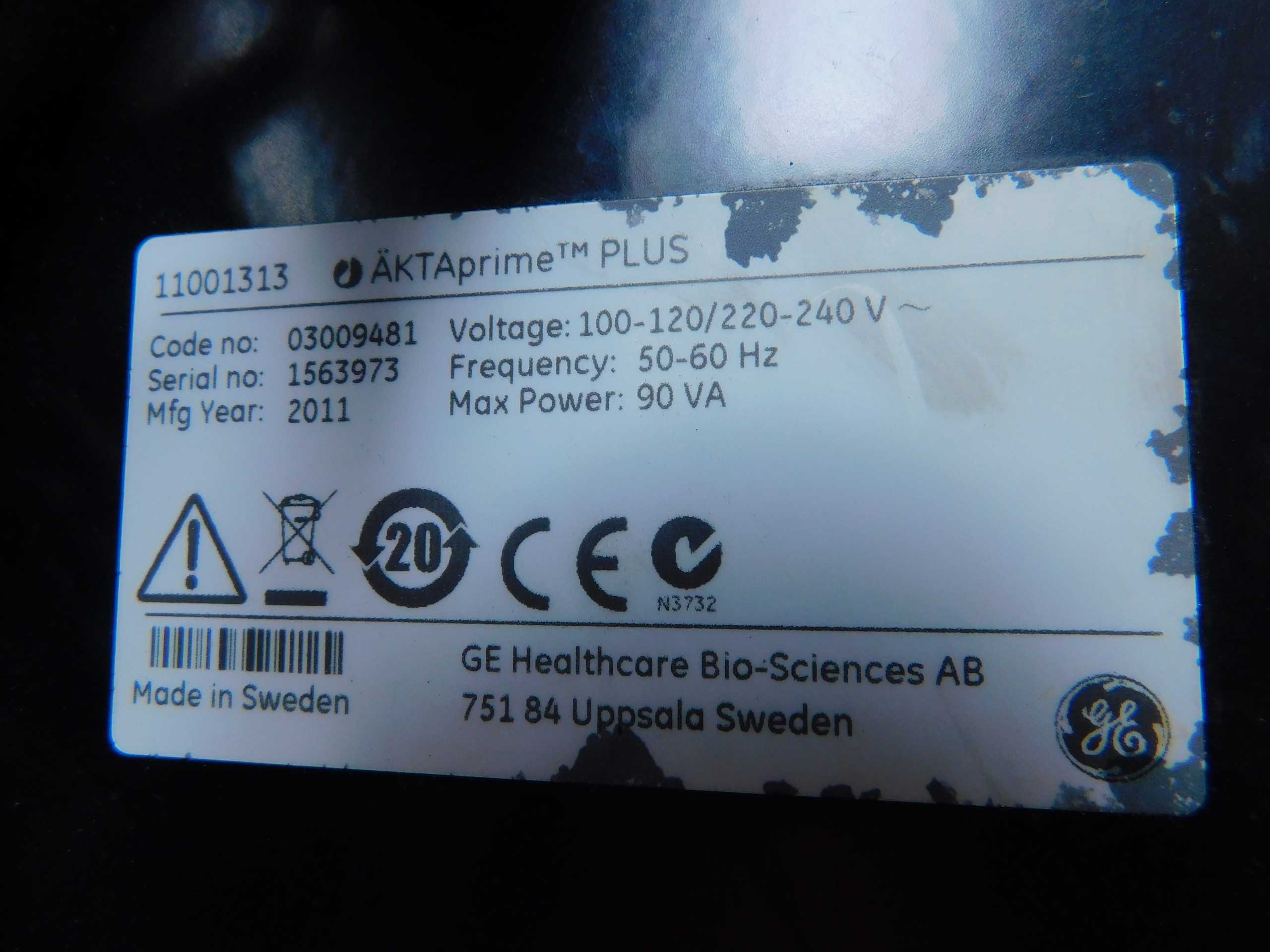

THE GE AKTA PRIME PLUS IS A COMPACT, LABORATORY-SCALE LIQUID CHROMATOGRAPHY SYSTEM DESIGNED FOR SIMPLE, ONE-STEP PURIFICATION OF TAGGED AND UNTAGGED PROTEINS. THE SYSTEM FEATURES AN INTEGRATED GRADIENT PUMP, A MOTORIZED EIGHT-PORT BUFFER SELECTION VALVE, A MOTORIZED INJECTION VALVE, A BUILT-IN FRACTION COLLECTOR, AND UV AND CONDUCTIVITY MONITORS. IT SUPPORTS A FLOW RATE RANGE OF 0.1 TO 50 ML/MIN WITH A MAXIMUM OPERATING PRESSURE OF 1 MPA (145 PSI). THE FLUIDIC PATHWAY UTILIZES TUBING WITH A 0.75 MM INTERNAL DIAMETER. FOR DETECTION, THE SYSTEM EMPLOYS SINGLE-WAVELENGTH UV MONITORING VIA A MERCURY LAMP WITH 254 NM AND 280 NM FILTERS AND A 2 MM FLOW CELL PATH LENGTH. THE INTEGRATED CONDUCTIVITY MONITOR OPERATES ACROSS A RANGE OF 1 US/CM TO 999.9 MS/CM, WHILE THE OPTIONAL PH MONITOR SUPPORTS A RANGE OF 0 TO 14, WITH A LONG-TERM PH STABILITY SPECIFICATION OF 2 TO 12. THE BUILT-IN FRACTION COLLECTOR ACCOMMODATES UP TO 95 TUBES OF 18 MM, WITH OPTIONS FOR 175 TUBES OF 12 MM OR 40 TUBES OF 30 MM. PHYSICAL DIMENSIONS OF THE UNIT ARE 400 MM IN WIDTH, 530 MM IN HEIGHT, AND 450 MM IN DEPTH, WEIGHING 13 KG. IT REQUIRES 100-120/220-240 VAC POWER AT 50/60 HZ WITH A POWER CONSUMPTION OF 90 VA.
