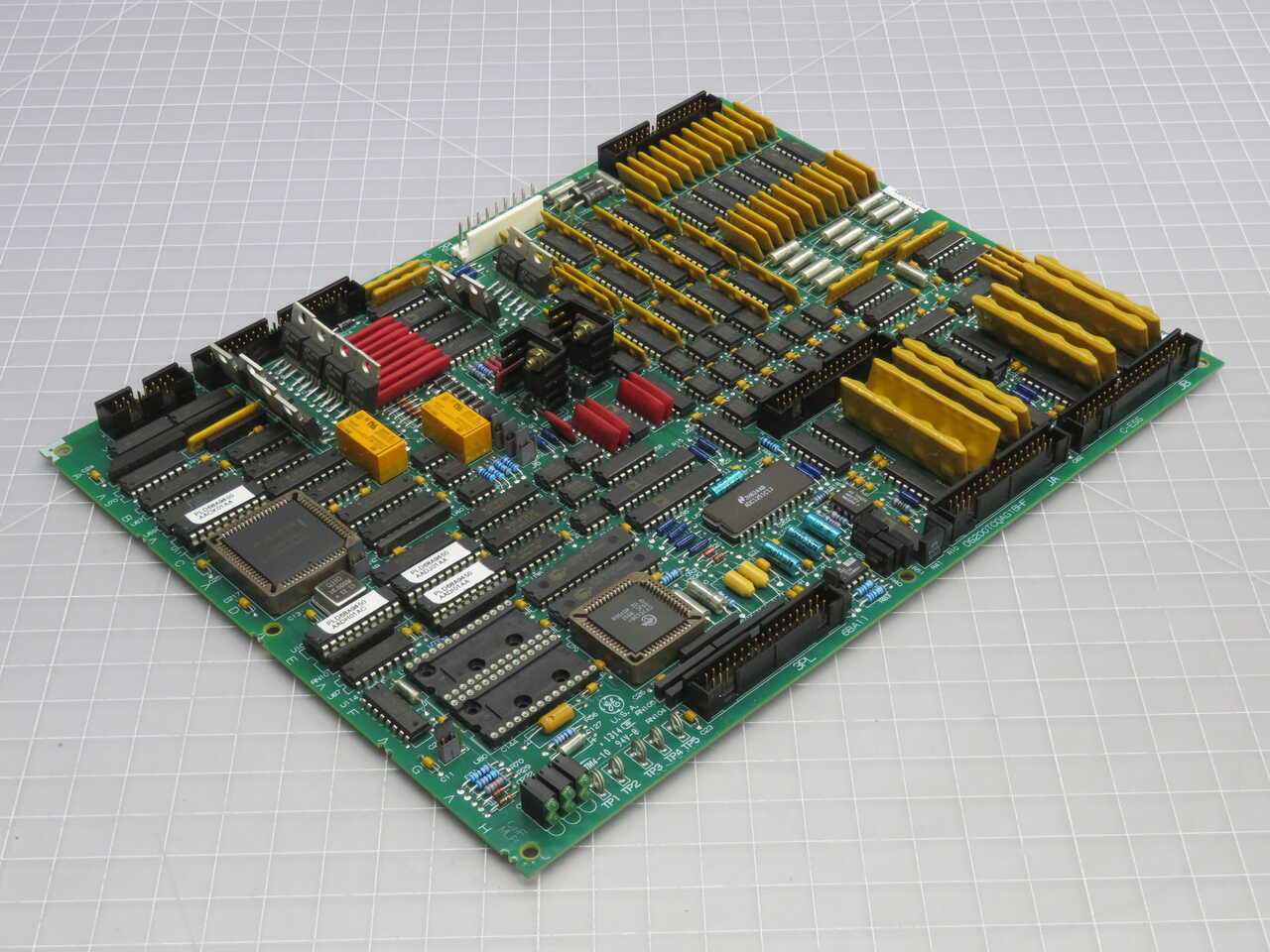

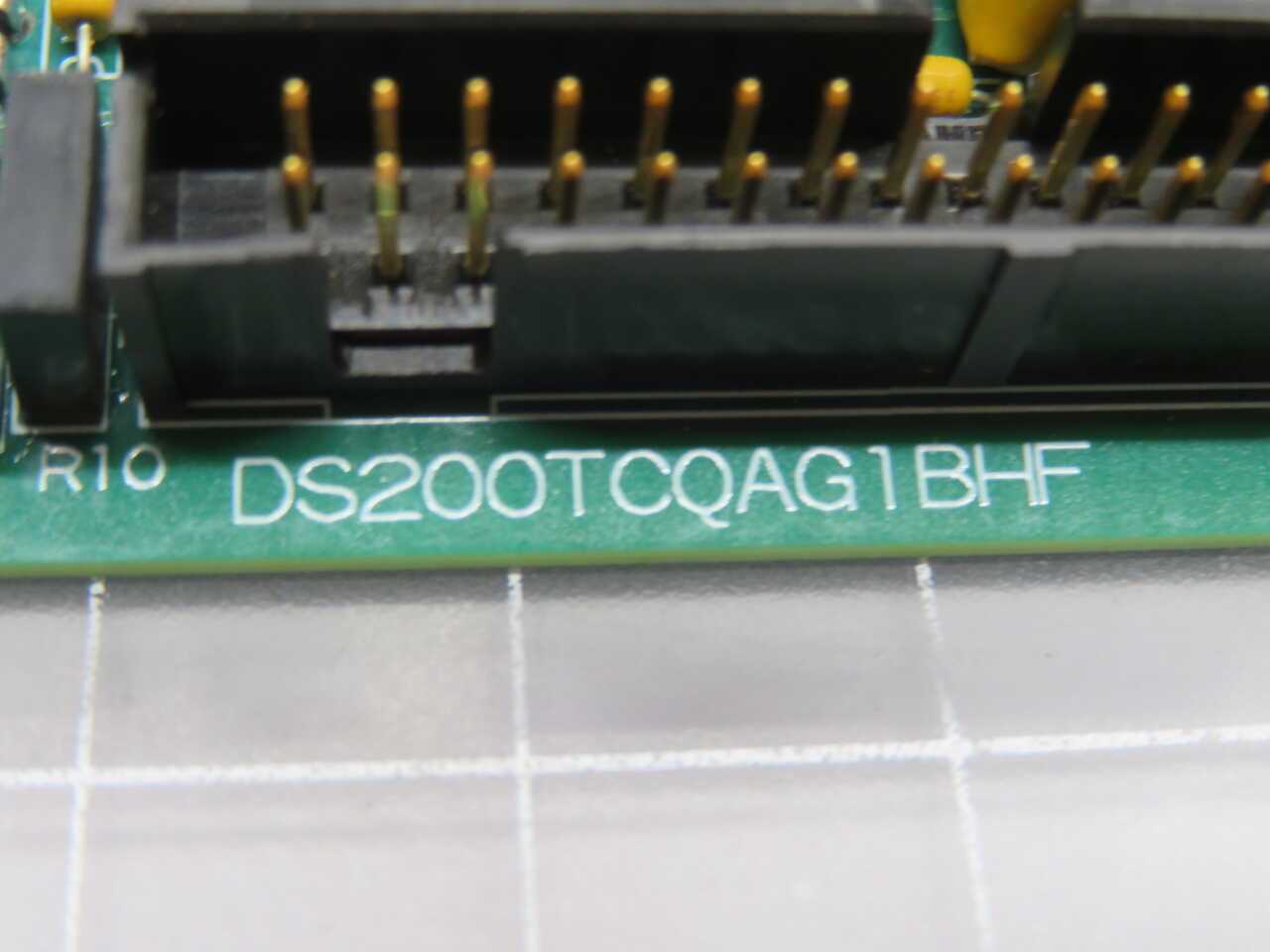

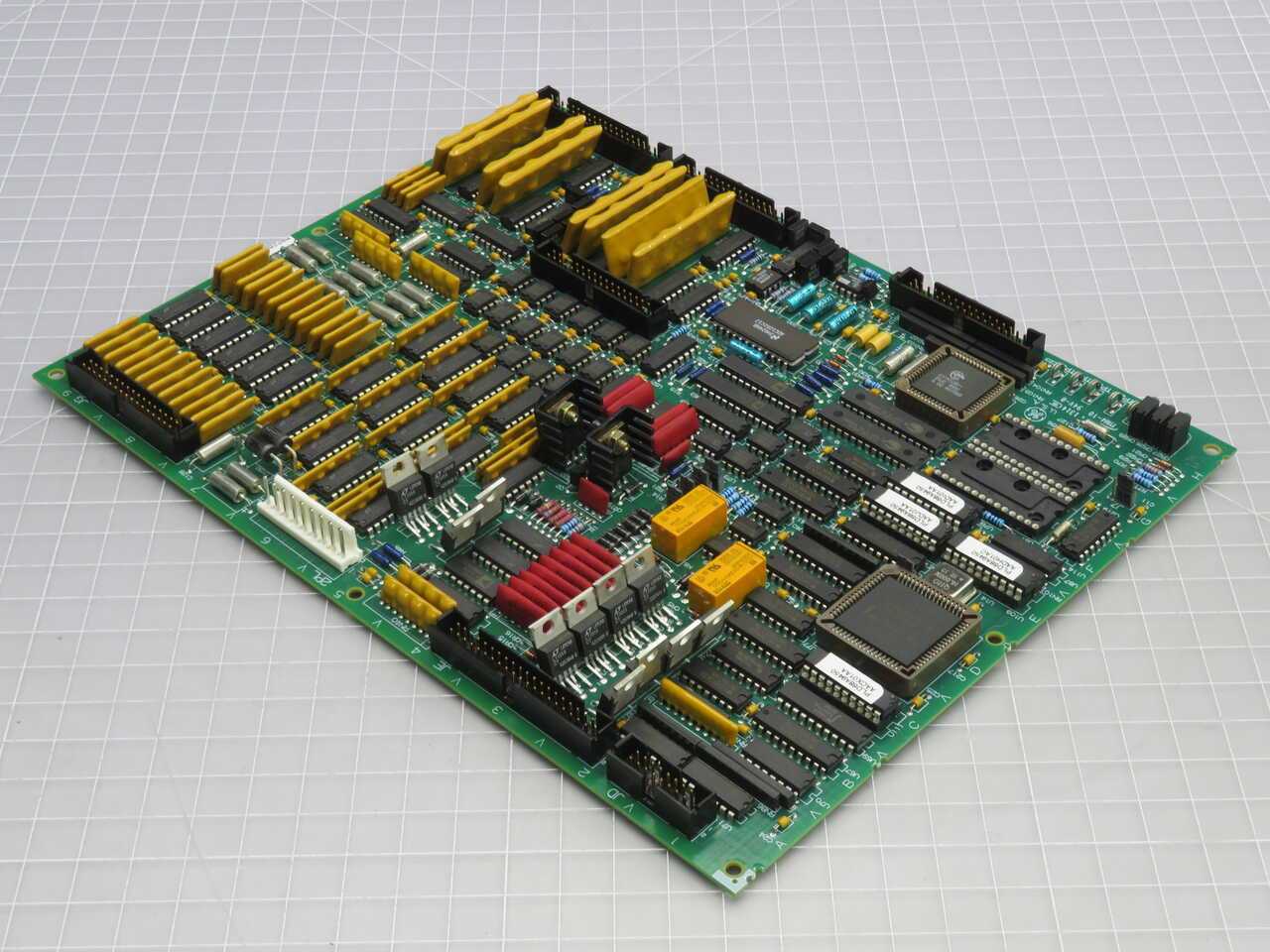

GE DS200TCQAG1BHF ANALOG INPUT/OUTPUT BOARD MARK V 4X 34-PIN 2X 40-PIN

THE GE DS200TCQAG1BHF IS AN ANALOG INPUT/OUTPUT (I/O) BOARD DESIGNED FOR THE GE SPEEDTRONIC MARK V GAS TURBINE CONTROL SYSTEM. OPERATING PRIMARILY WITHIN THE SYSTEM'S <R> CORE AND GROUPED UNDER MARK V SERIES GROUP 1, THIS PRINTED CIRCUIT BOARD FACILITATES THE CRITICAL COMMUNICATION, CONDITIONING, SCALING, AND MANAGEMENT OF ANALOG SIGNALS FROM TERMINAL BOARDS TO ENSURE PRECISE TURBINE CONTROL. THE BOARD IS UNIQUELY EQUIPPED WITH BOTH AN H-RATED SECONDARY FUNCTIONAL REVISION AND AN F-RATED ARTWORK REVISION. HARDWARE CONNECTIVITY INCLUDES FOUR 34-PIN CONNECTORS AND TWO 40-PIN CONNECTORS, WHICH ACCEPT INTERFACES WITH 2PL, 3PL, AND JA-JG CONNECTORS, ALONGSIDE EXPANSION INTERFACES FOR STCA AND TCQC BOARDS. FOR CUSTOMIZATION AND MONITORING, THE MODULE INTEGRATES SIX MANUALLY-MOVABLE HARDWARE JUMPERS AND SIX STATUS-INDICATING LEDS. THE PHYSICAL ARCHITECTURE FEATURES A SIGNAL CONDITIONING CIRCUIT AND A YELLOW/RED BLOCKING ARRAY FOR THERMOCOUPLE, LVDT, AND 4-20MA/VOLTAGE ANALOG INPUT SIGNAL ACQUISITION. A SURFACE-MOUNT IDT PROCESSOR HANDLES ANALOG-TO-DIGITAL CONVERSION AND DIGITAL LOGIC CONTROL, WHILE A MAIN CPU HANDLES DATA EXCHANGE ACROSS THE MARK V BACKPLANE. ADDITIONALLY, A RED METAL-SHELL CAPACITOR AND VOLTAGE-SENSITIVE RESISTOR PROVIDE OVERVOLTAGE PROTECTION AND ANTI-INTERFERENCE CAPABILITIES. THE PHYSICAL ASSEMBLY MEASURES 27.8 CM BY 21.2 CM BY 2.2 CM AND FEATURES A NORMAL PCB COATING WITH SIX MOUNTING HOLES FOR CABINET RACK INSTALLATION. IT OPERATES WITHIN A TEMPERATURE RANGE OF -20°C TO +70°C AND A NON-CONDENSING RELATIVE HUMIDITY RANGE OF 5% TO 95%.
