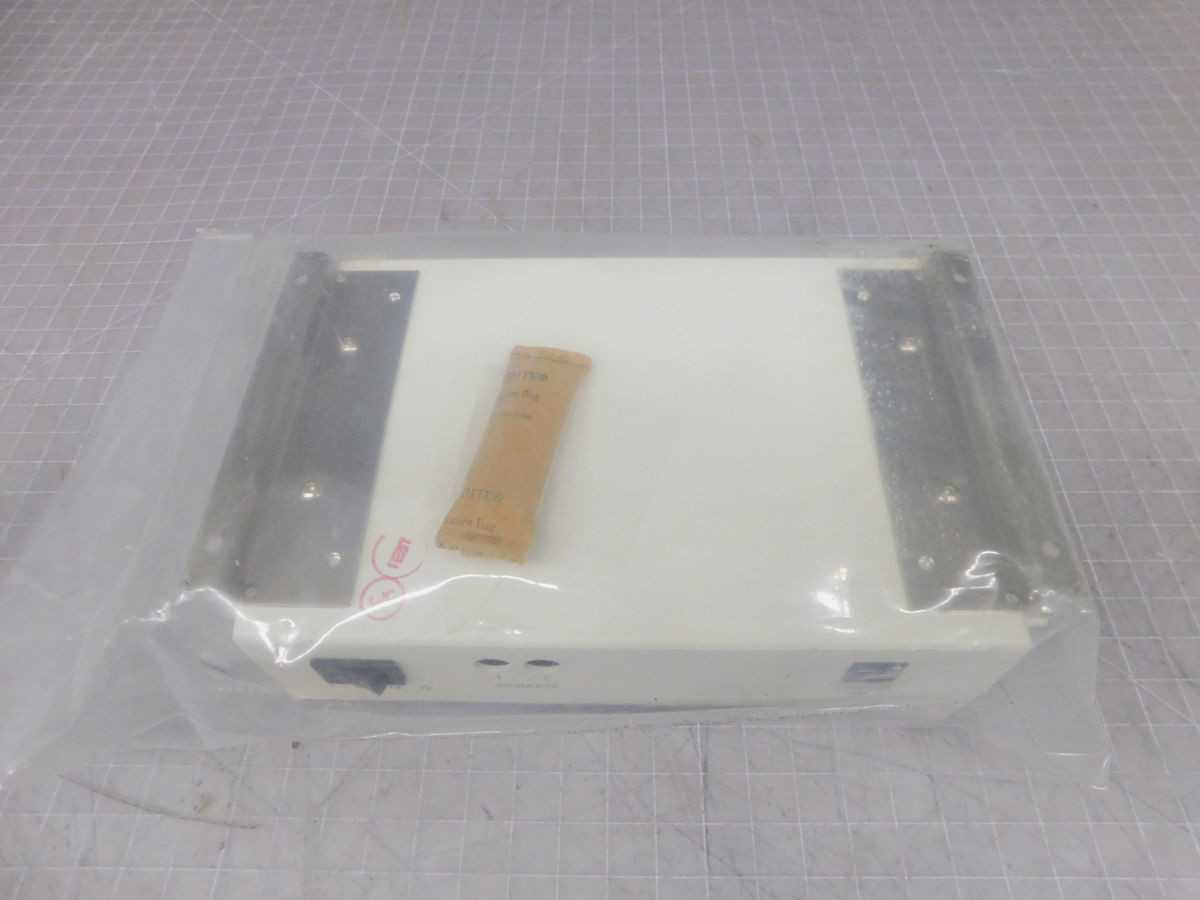

GRANVILLE-PHILLIPS 4301G01B TIM-100, CONTROL PANEL INT., 1E-11-5E-3 TORR RANGE, TOF PRINCIPLE

THE GRANVILLE-PHILLIPS 4301G01B TIM-100 IS AN IONIZATION GAUGE MODULE DESIGNED FOR INTEGRATION WITH THE GRANVILLE-PHILLIPS SENTRY 1510 VACUUM GAUGE CONTROLLER, CATEGORIZED AS A COMPONENT WITHIN CONTROL PANELS INTERFACES. THIS MODULE ENABLES THE SENTRY 1510 TO OPERATE GRANVILLE-PHILLIPS 307 OR 308 SERIES IONIZATION GAUGES UTILIZING THE TIME-OF-FLIGHT (TOF) PRINCIPLE. THE TIM-100 SPECIFICALLY FUNCTIONS TO EXTEND THE LOWER MEASUREMENT RANGE AND MINIMIZE X-RAY CURRENT EFFECTS TYPICALLY ASSOCIATED WITH CONVENTIONAL HOT CATHODE IONIZATION GAUGES, THEREBY FACILITATING ACCURATE MEASUREMENTS IN ULTRA-HIGH VACUUM ENVIRONMENTS. WHEN INTEGRATED INTO THE SENTRY 1510 CONTROLLER, THE SYSTEM IS CAPABLE OF MEASURING PRESSURES FROM 1 X 10^-11 TORR UP TO 5 X 10^-3 TORR.
