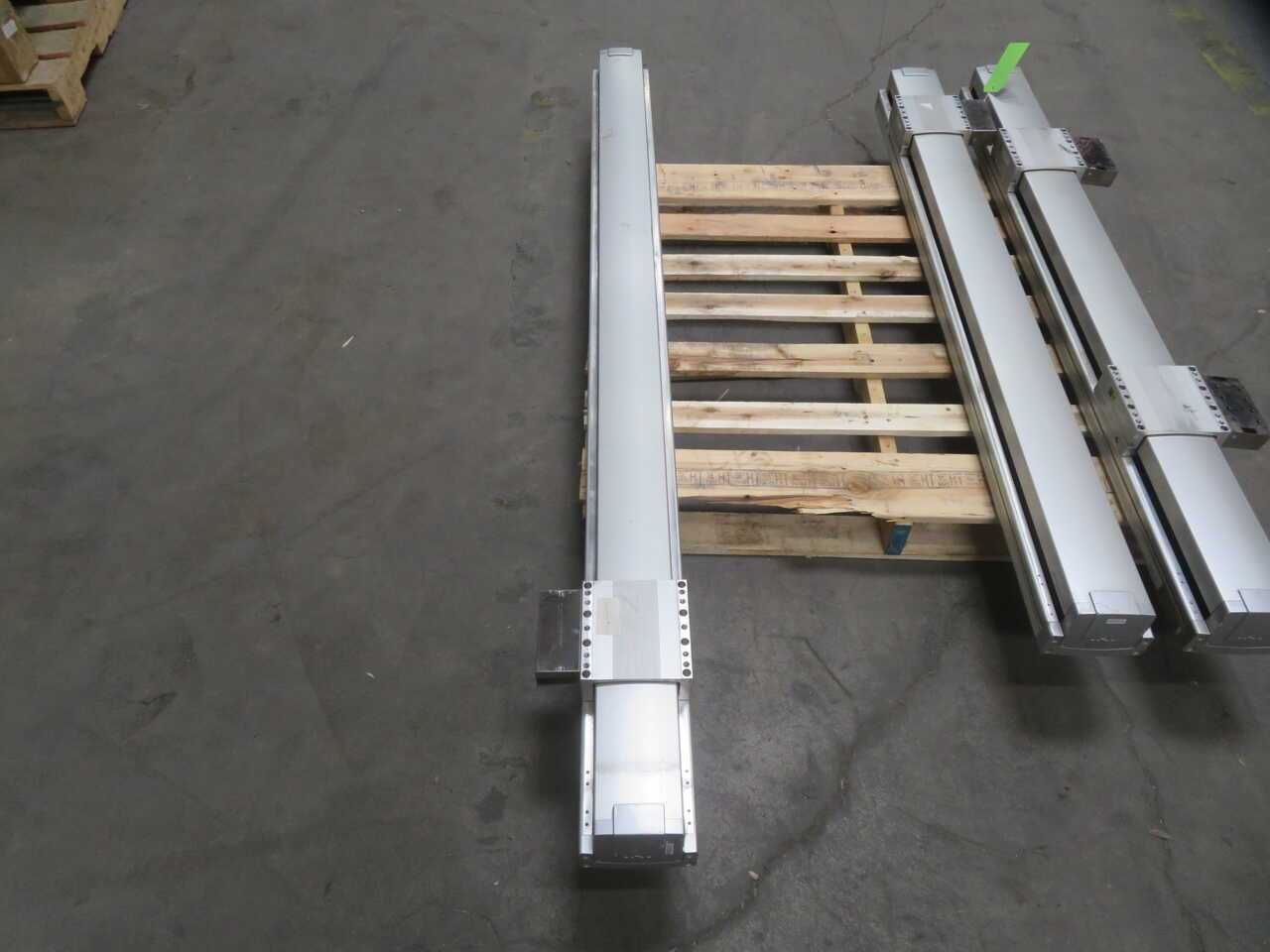

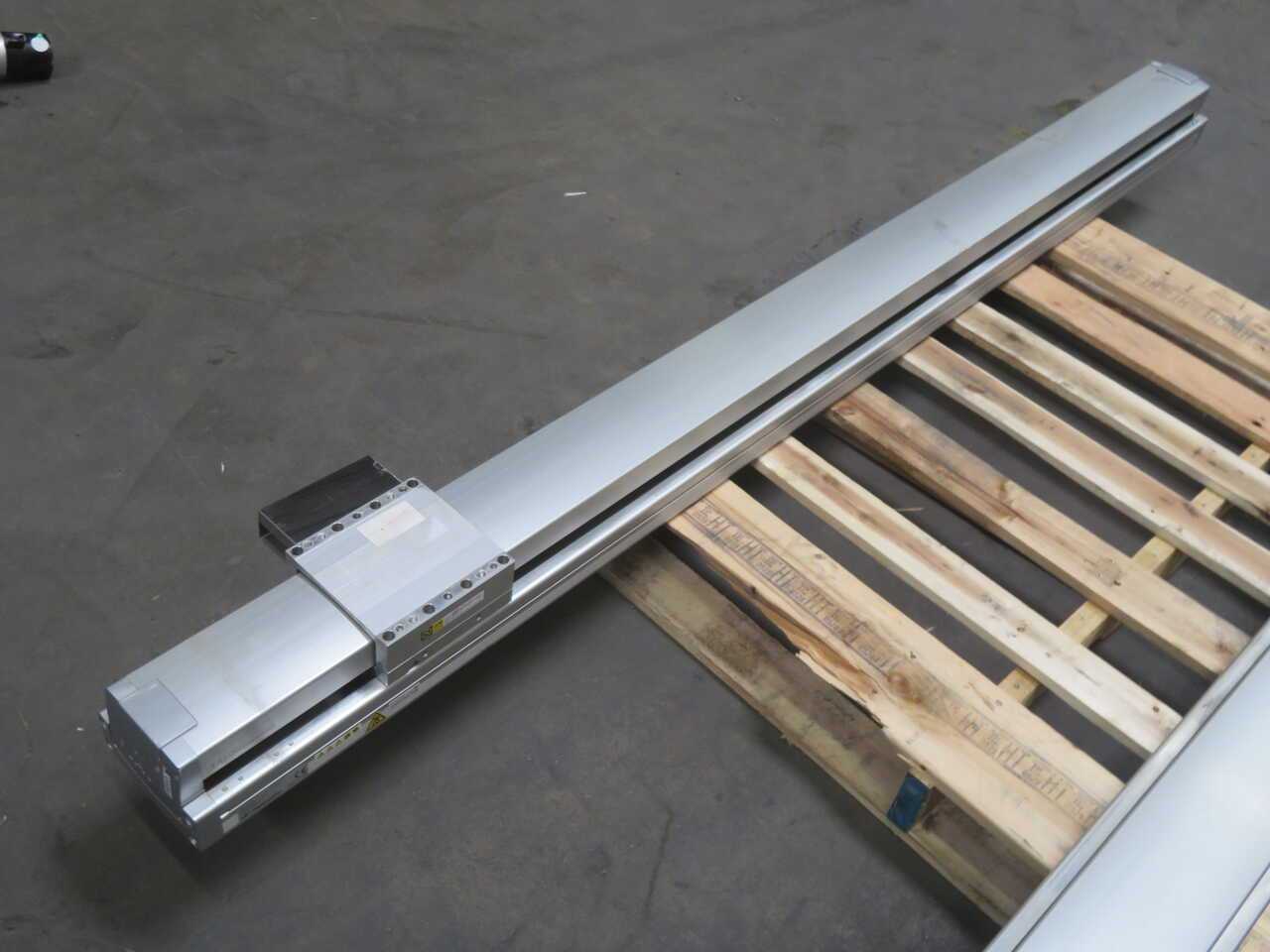

IAI NS-LXMS-I-400-20-1600-T2-M-AQ-CT3-RT LINEAR ACTUATOR 400W 1600MM STROKE

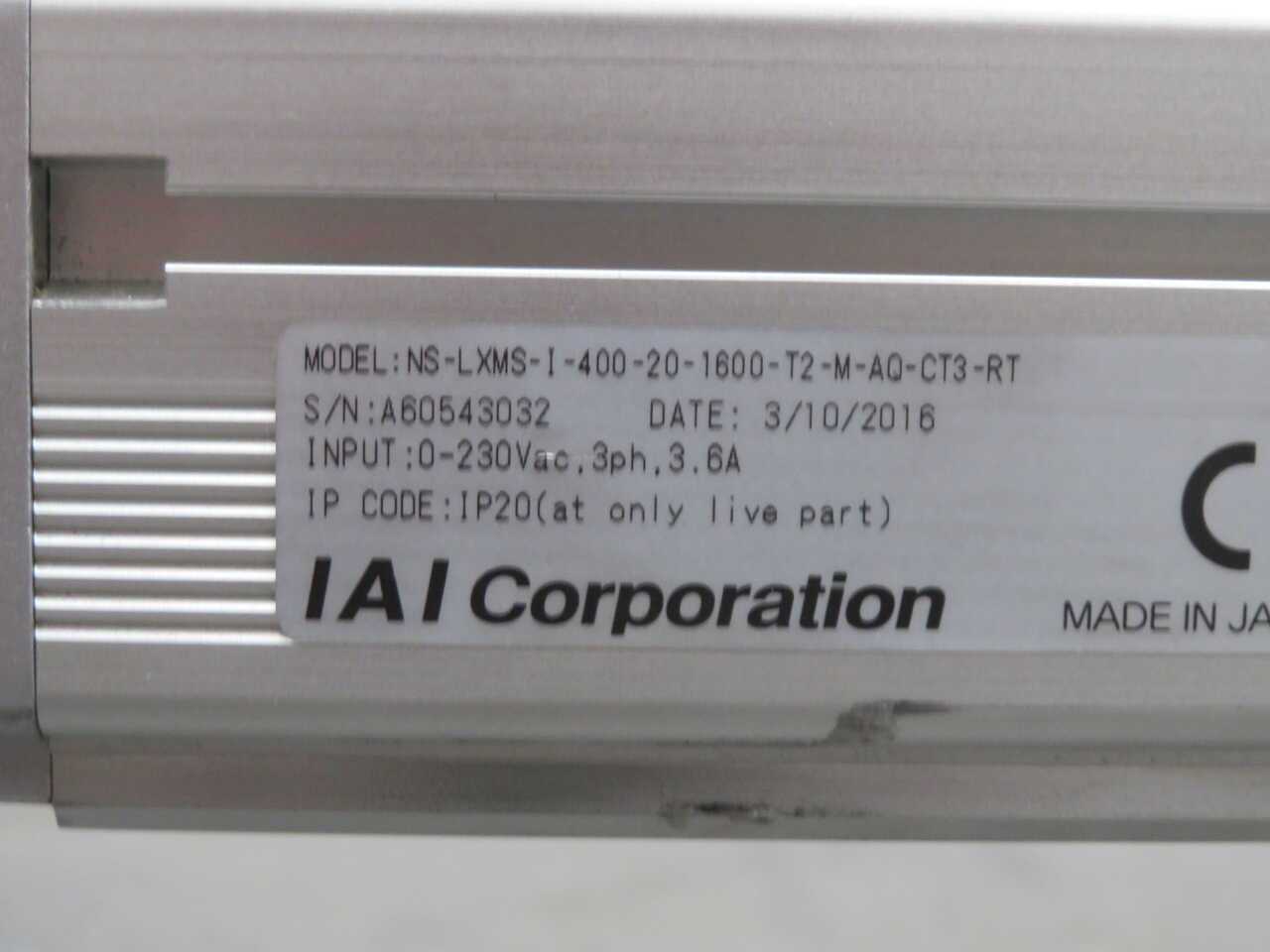

THE IAI NS-LXMS-I-400-20-1600-T2-M-AQ-CT3-RT IS A LARGE, SINGLE-AXIS NUT-ROTATION TYPE LINEAR ROBOT ACTUATOR DESIGNED FOR HORIZONTAL INDUSTRIAL AUTOMATION APPLICATIONS. BUILT ON AN ALUMINUM BASE WITH A WHITE ALUMITE TREATMENT, IT FEATURES A SINGLE SLIDER MECHANISM AND A MAIN UNIT WIDTH OF 145MM. THE SYSTEM IS DRIVEN BY A 400W AC SERVO MOTOR OPERATING ON A THREE-PHASE INPUT VOLTAGE OF 0-230VAC (3.6A). IT UTILIZES A 20MM LEAD BALL SCREW DRIVE SYSTEM TO DELIVER A STROKE LENGTH OF 1600MM, OFFERING A MAXIMUM HORIZONTAL PAYLOAD CAPACITY OF 80KG AND A MAXIMUM SPEED OF 1300MM/S. THE ACTUATOR FEATURES A POSITIONING REPEATABILITY OF ±0.01MM AND A RATED HORIZONTAL ACCELERATION OF 0.3G. THIS CONFIGURATION INCLUDES AN INCREMENTAL ENCODER (I), A 5-METER ROBOT CABLE (M), AN AQ SEAL FOR GUIDE LUBRICATION AND ENVIRONMENTAL PROTECTION, A CT3 STANDARD CABLE TRACK, AND A GUIDE EQUIPPED WITH A BALL-RETAINING MECHANISM (RT). THE UNIT IS COMPATIBLE WITH T2 SERIES CONTROLLERS, INCLUDING THE XSEL-P/Q, SSEL, AND SCON SYSTEMS, ENABLING ADVANCED PROGRAM CONTROL AND POSITIONER OPERATION.
