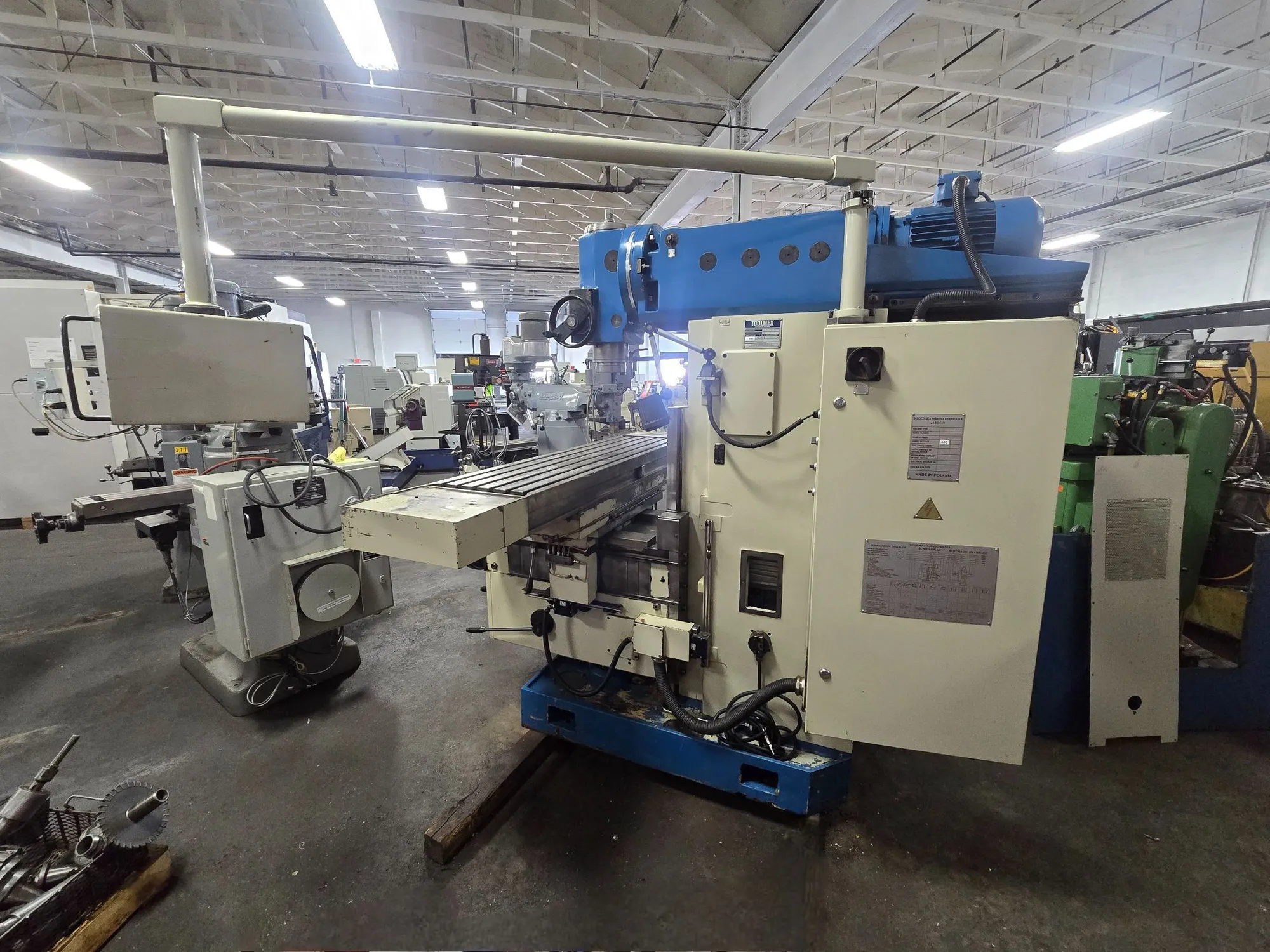

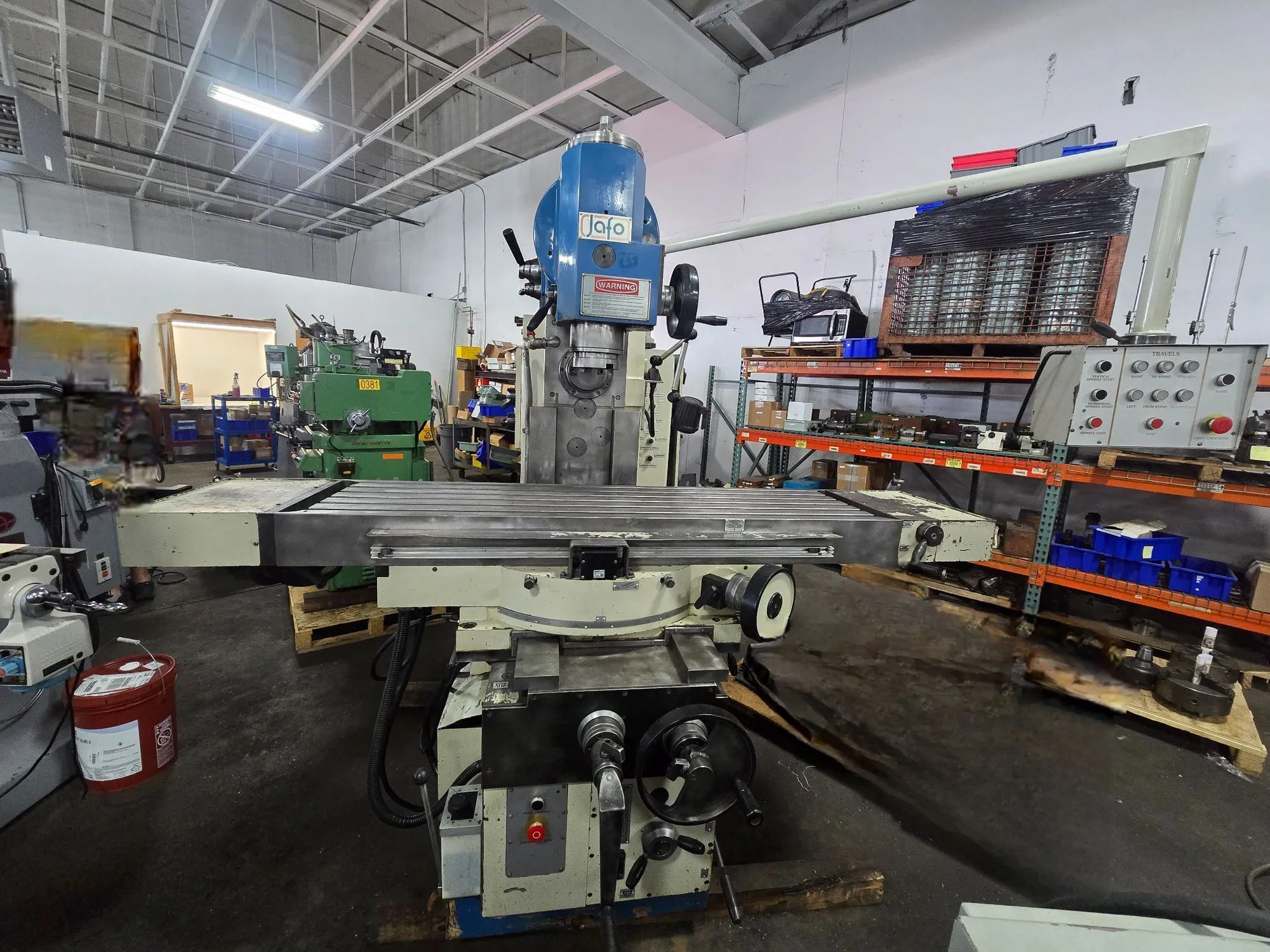

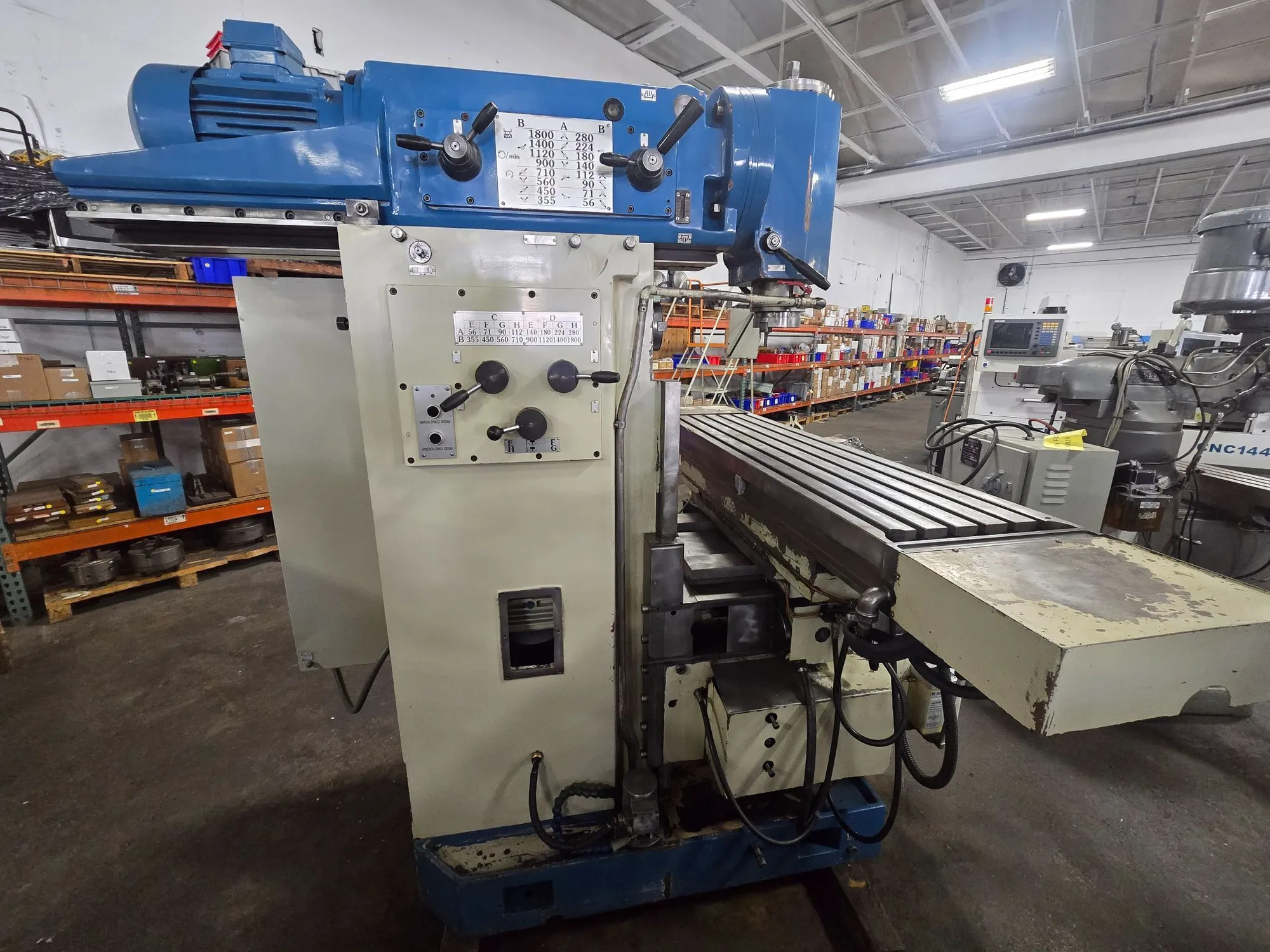

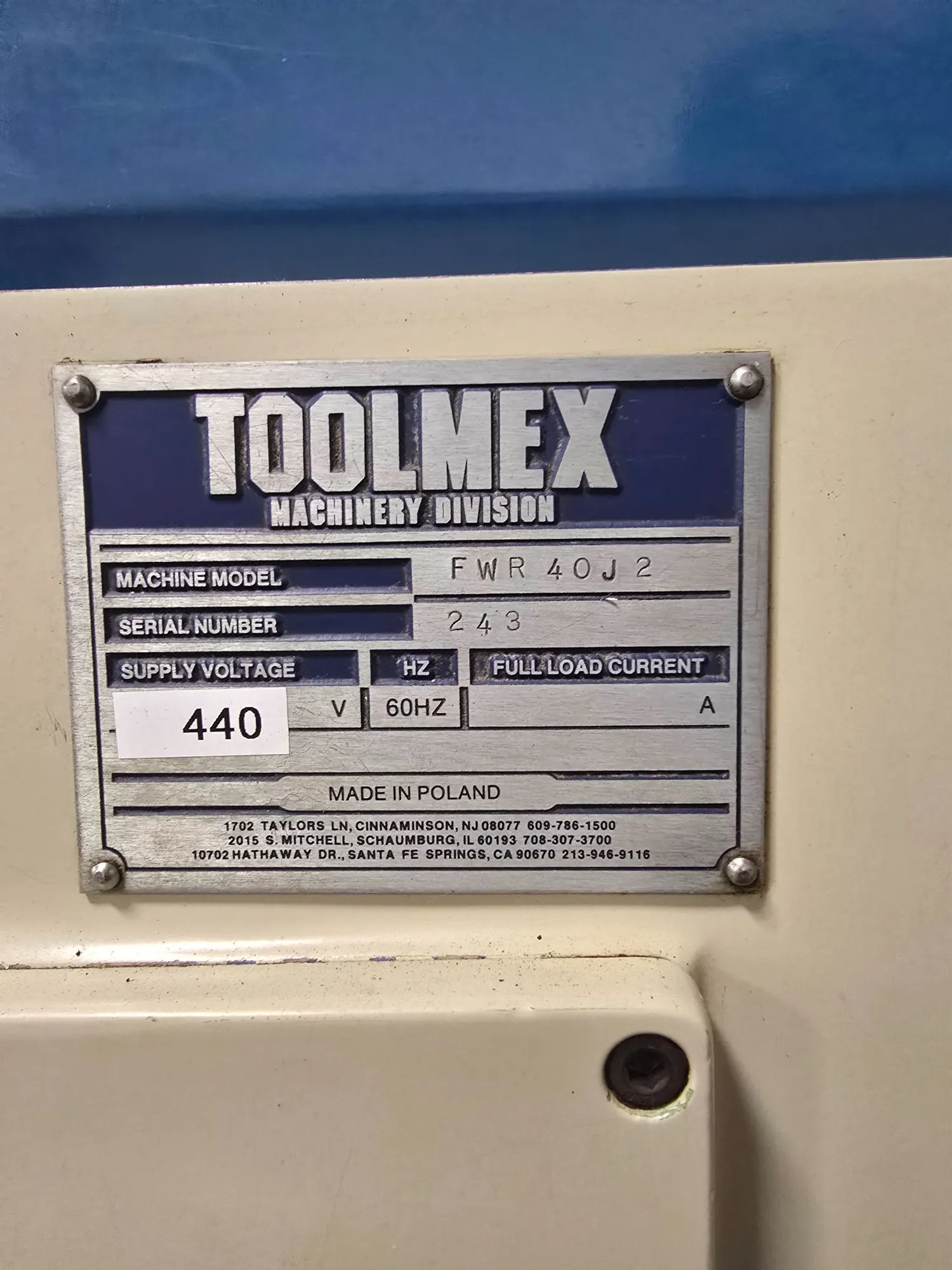

JAFO/TOOLMEX FWR 40J2 UNIVERSAL HORIZ MILL, 400X1400MM TABLE, ISO 50 TAPER, 9.8 HP

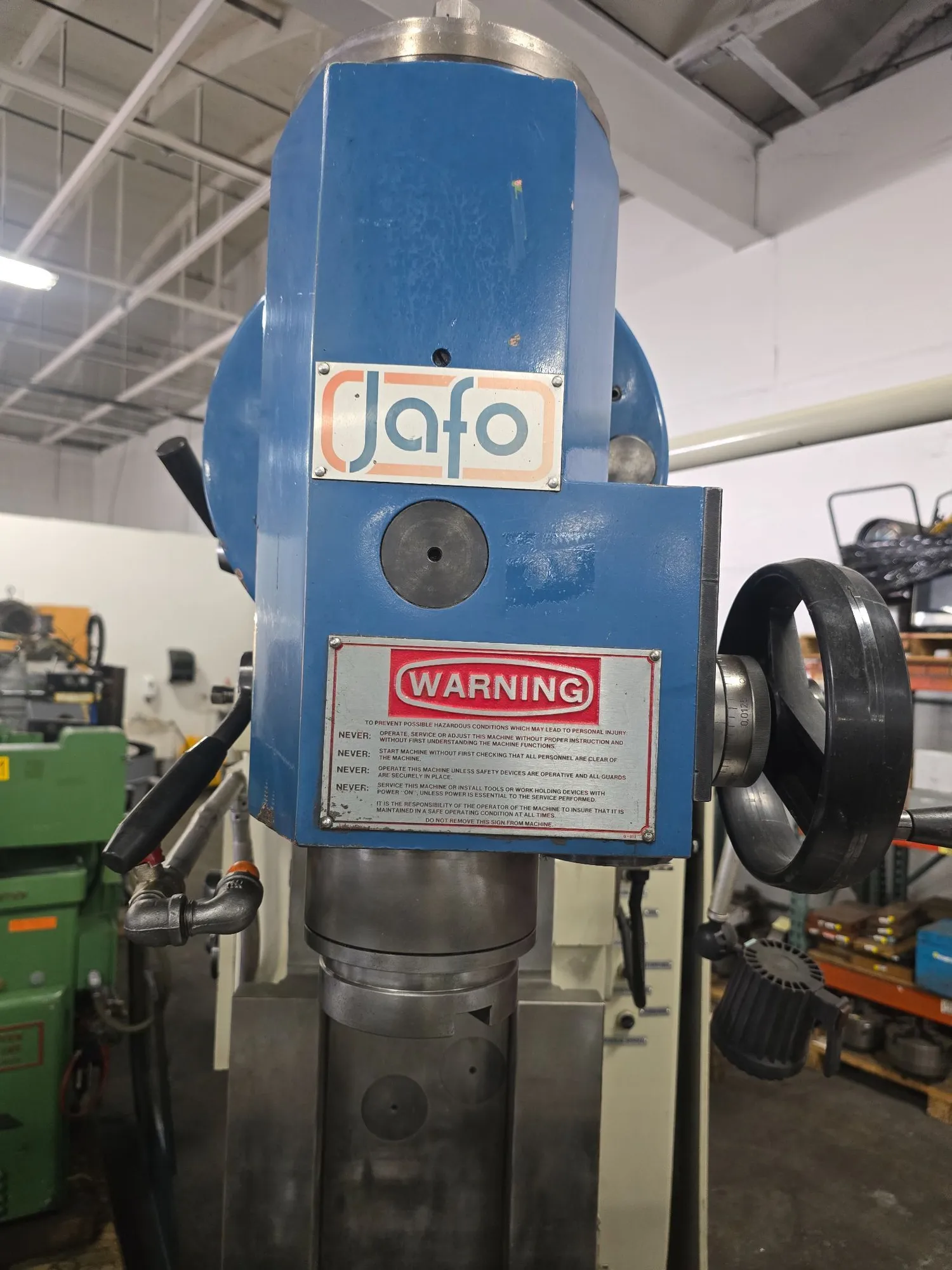

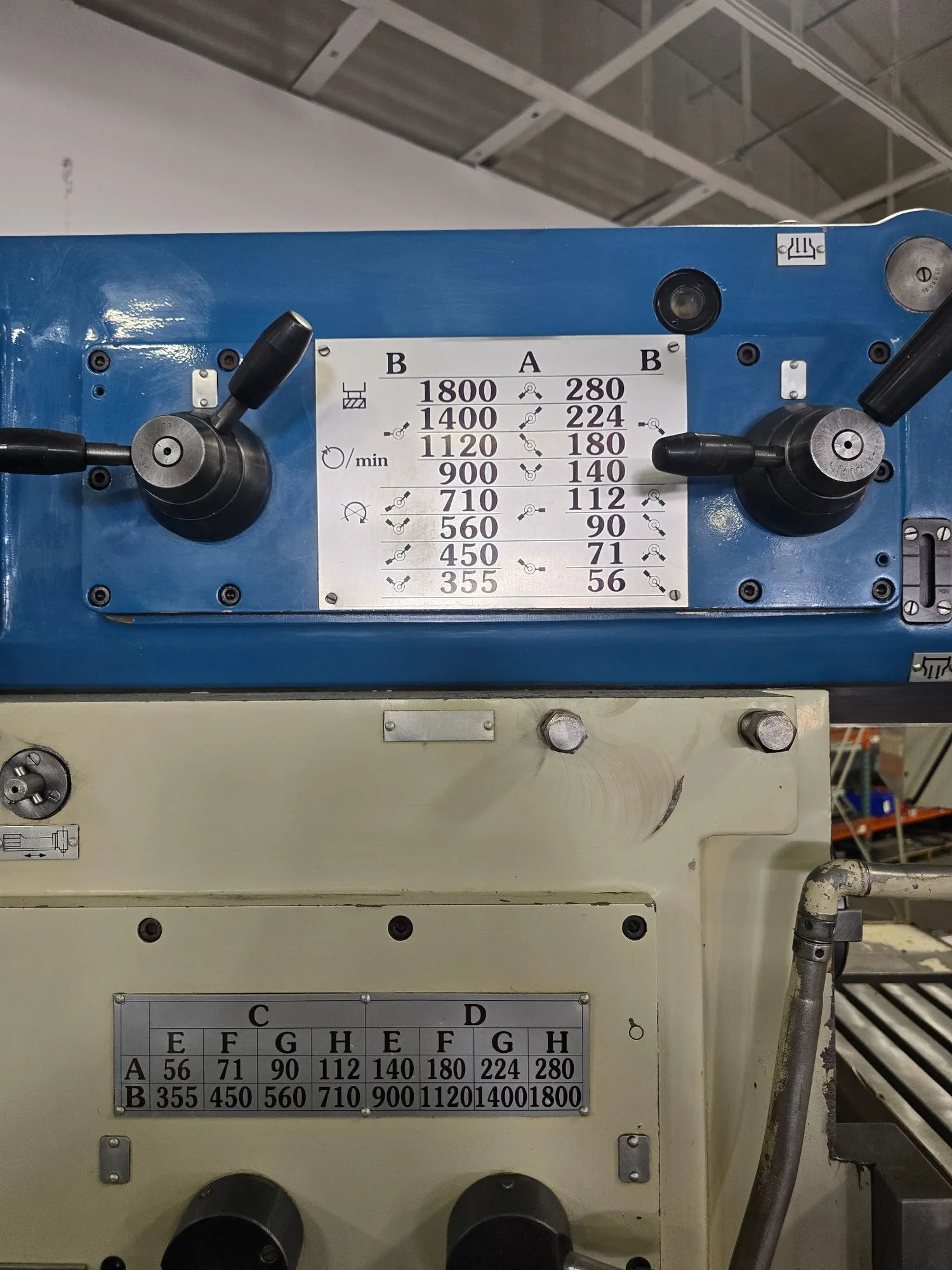

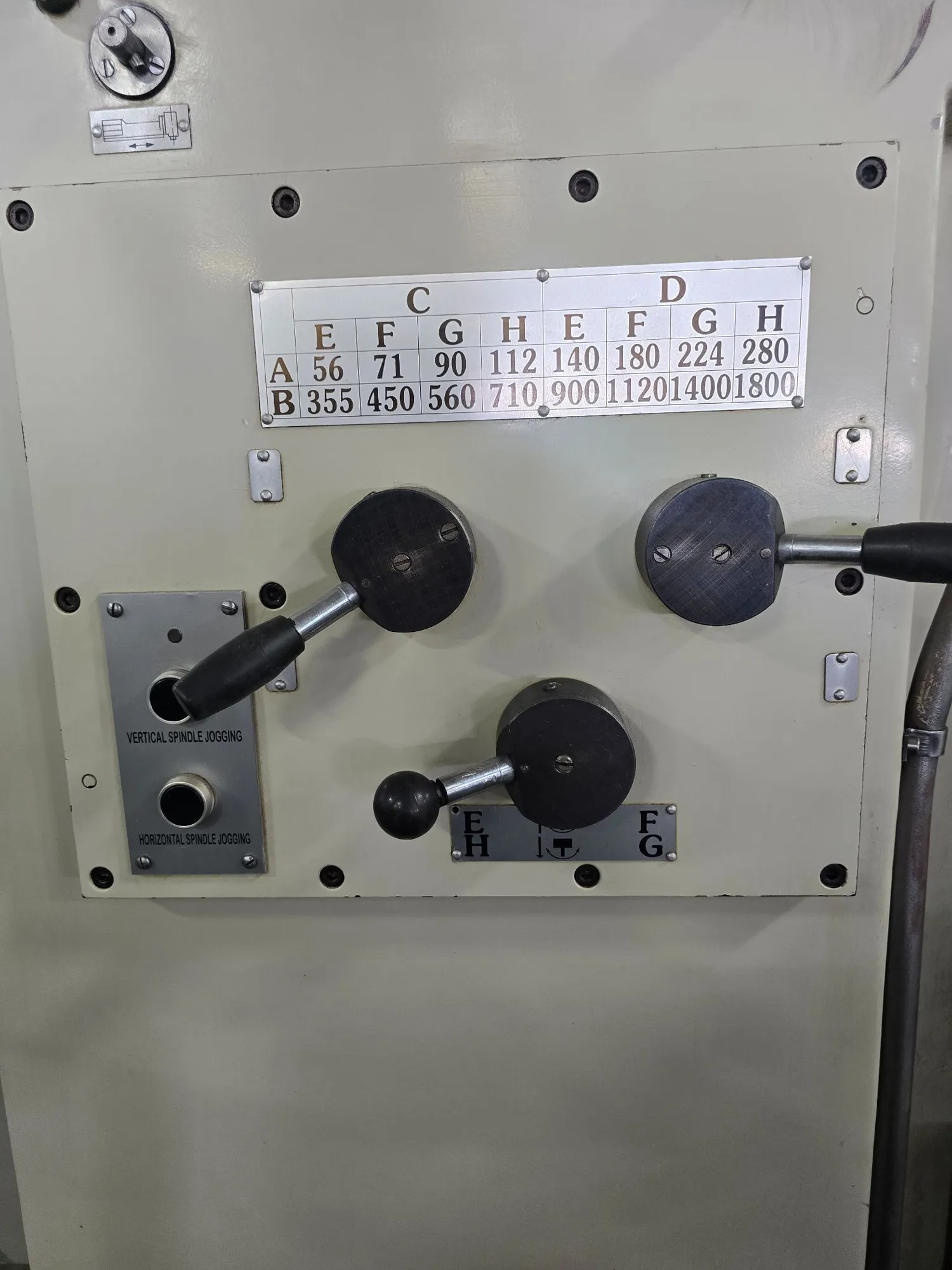

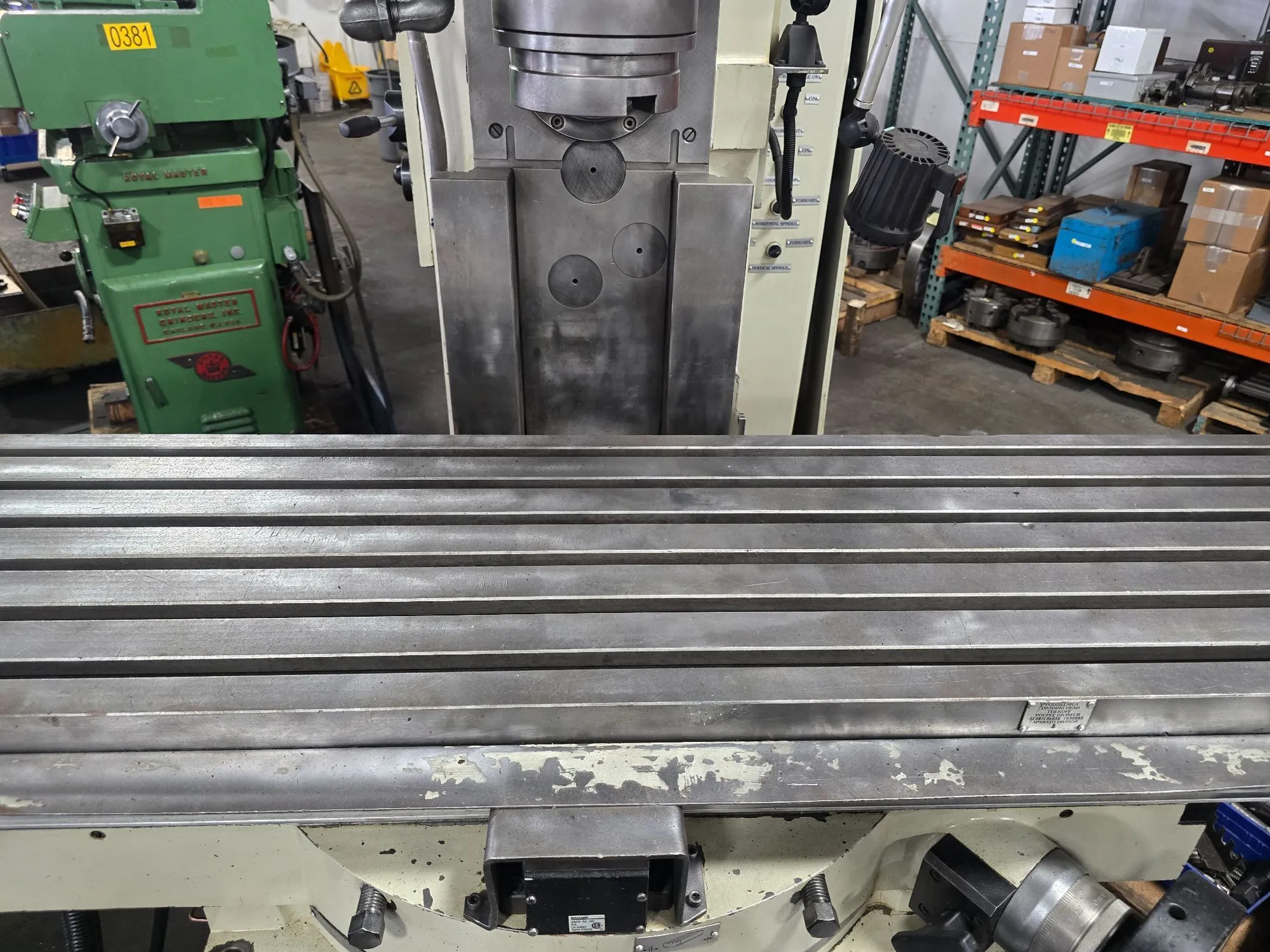

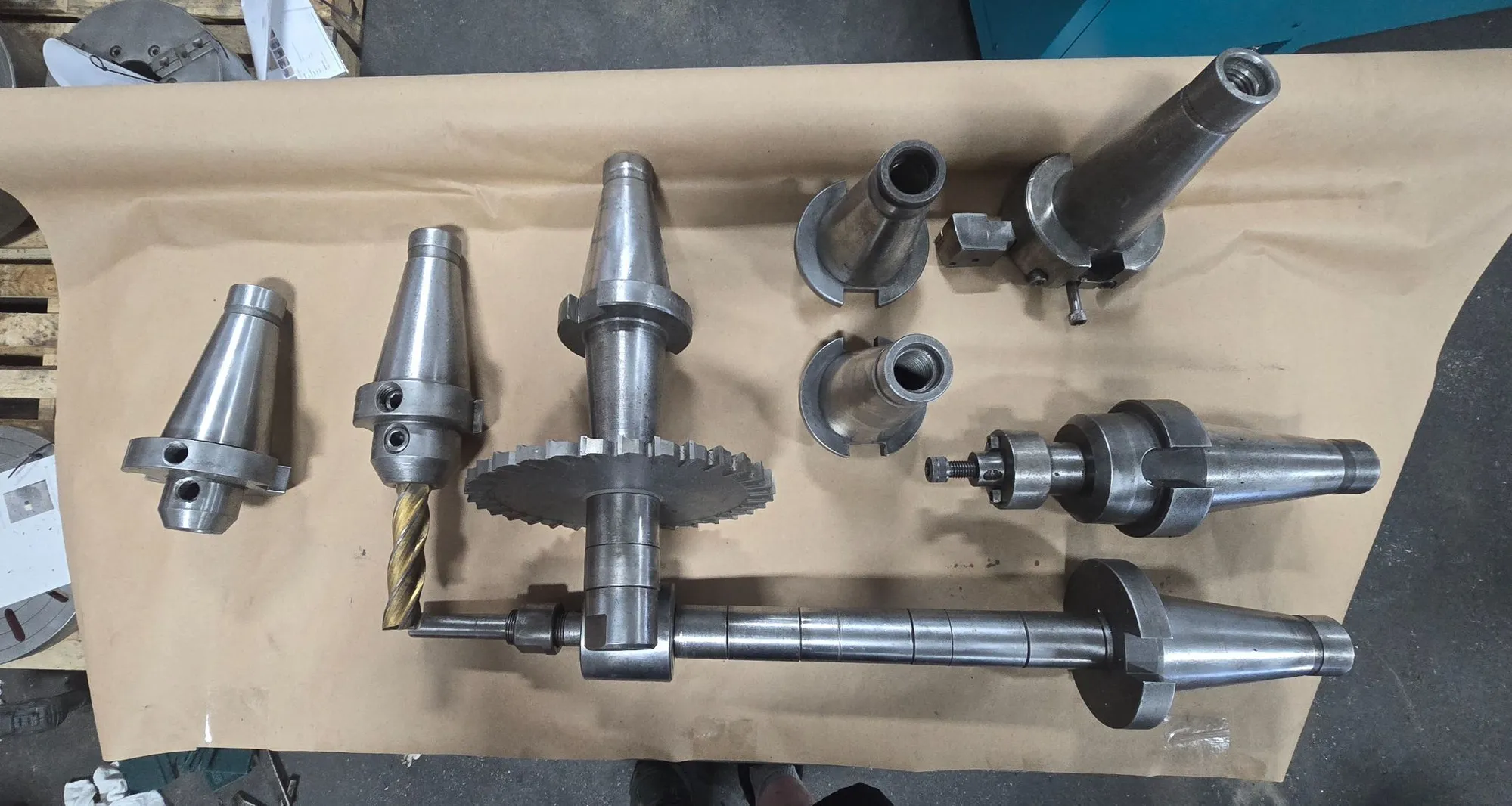

THE JAFO/TOOLMEX MODEL FWR 40J2 IS A UNIVERSAL HORIZONTAL MILLING MACHINE FEATURING A MOTORIZED OVERARM AND A UNI-SWIVEL HEAD (J2). THE SPECIFICATIONS INCLUDE A TABLE SIZE OF 400X1400MM, WITH MAXIMUM TRAVELS OF 1000 MM (39.37") LONGITUDINAL (X-AXIS), 350 MM (13.78") CROSS (Y-AXIS), AND 500 MM VERTICAL (Z-AXIS). BOTH THE HORIZONTAL AND VERTICAL SPINDLES UTILIZE AN ISO 50 DIN 2080 TAPER. THE HORIZONTAL SPINDLE OFFERS 16 GEAR STEPS FOR SPEEDS RANGING FROM 56-1800 RPM, WHILE THE VERTICAL SPINDLE ALLOWS FOR STEPLESS SPEED ADJUSTMENT FROM 70-2500 RPM. ALL AXES FEATURE STEPLESS FEEDS ADJUSTMENT. THE MACHINE HAS A 9.8 HP POWER RATING ON THE SPINDLE, A MAX QUILL TRAVEL OF 150 MM, AND A MAX WORKPIECE HEIGHT OF 750 MM. CONTROL IS MANUAL AND MECHANICAL. THE OVERALL DIMENSIONS ARE 86.61 IN (LENGTH), 102.36 IN (DEPTH), AND 82.68 IN (HEIGHT), WITH A WEIGHT OF 7936.63 LB.
