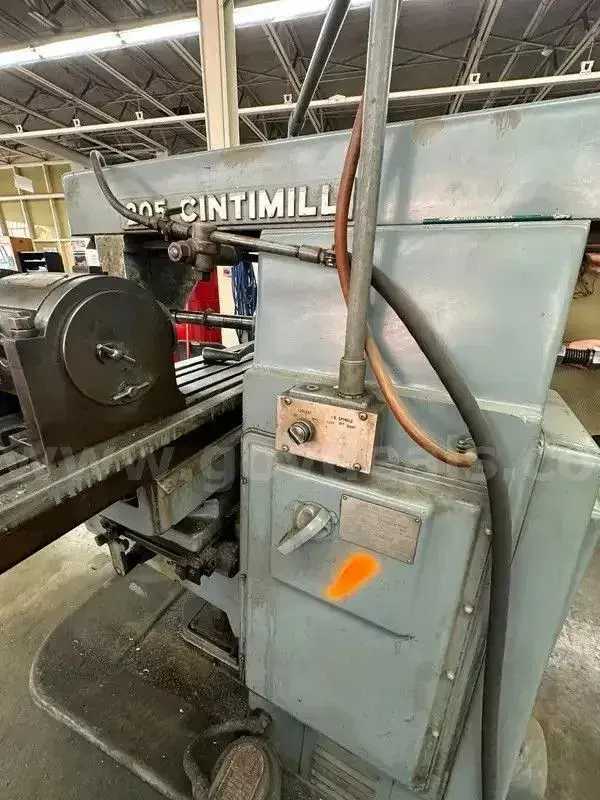

Cincinnati Milacron Cintimill 205 Horizontal Mill With Large Dividing Head, 5 HP, 1800 RPM

Asking Price:
$7,950.00

Financing From: $132/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

Dimensions - 97 x 85 Weight - 4050 205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL HORIZONTAL MILL w/I.O.S VERTICAL-HEAD MILLING SPINDLE Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL" EQUIPPED WITH: Cincinnati Universal Dividing Head Knee Motor - Bijur One Shot Lube System Arbor Support & Arbor - Built-In Backlash Eliminator Coolant System (Built-In) CATALOG SPECIFICATIONS: Table Dimensions (Overall), W x L 12" x 52.75" Table Longitudinal Travel (X-Axis) 28" Table Swivel, Range 45-DEGREES R & L Saddle In-Out Cross Travel (Z-Axis) 10" Knee Vertical Travel (Y-Axis) 14" Spindle Taper #50 NSTD (32) Spindle Speeds, Range 40 to 1800 RPM (12) Longitudinal and Cross Feeds 1/2 to 30 IPM (12) Vertical Feeds, Range 1/4 to 15 IPM Power Rapid Traverse, Long & Cross 85 IPM Power Rapid Traverse, Vertical 42.5 IPM Spindle Motor, Horsepower 5 HP Feed Motor, Horsepower 1 HP Floor Space Required, W x D 8' x 7' Weight, Approximately 4050 LBS NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE. 205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL HORIZONTAL MILL w/I.O.S VERTICAL-HEAD MILLING SPINDLE Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL" EQUIPPED WITH: Cincinnati Universal Dividing Head Knee Motor - Bijur One Shot Lube System Arbor Support & Arbor - Built-In Backlash Eliminator Coolant System (Built-In) CATALOG SPECIFICATIONS: Table Dimensions (Overall), W x L 12" x 52.75" Table Longitudinal Travel (X-Axis) 28" Table Swivel, Range 45-DEGREES R & L Saddle In-Out Cross Travel (Z-Axis) 10" Knee Vertical Travel (Y-Axis) 14" Spindle Taper #50 NSTD (32) Spindle Speeds, Range 40 to 1800 RPM (12) Longitudinal and Cross Feeds 1/2 to 30 IPM (12) Vertical Feeds, Range 1/4 to 15 IPM Power Rapid Traverse, Long & Cross 85 IPM Power Rapid Traverse, Vertical 42.5 IPM Spindle Motor, Horsepower 5 HP Feed Motor, Horsepower 1 HP Floor Space Required, W x D 8' x 7' Weight, Approximately 4050 LBS NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE. 205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL HORIZONTAL MILL w/I.O.S VERTICAL-HEAD MILLING SPINDLE Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL" EQUIPPED WITH: Cincinnati Universal Dividing Head Knee Motor - Bijur One Shot Lube System Arbor Support & Arbor - Built-In Backlash Eliminator Coolant System (Built-In) CATALOG SPECIFICATIONS: Table Dimensions (Overall), W x L 12" x 52.75" Table Longitudinal Travel (X-Axis) 28" Table Swivel, Range 45-DEGREES R & L Saddle In-Out Cross Travel (Z-Axis) 10" Knee Vertical Travel (Y-Axis) 14" Spindle Taper #50 NSTD (32) Spindle Speeds, Range 40 to 1800 RPM (12) Longitudinal and Cross Feeds 1/2 to 30 IPM (12) Vertical Feeds, Range 1/4 to 15 IPM Power Rapid Traverse, Long & Cross 85 IPM Power Rapid Traverse, Vertical 42.5 IPM Spindle Motor, Horsepower 5 HP Feed Motor, Horsepower 1 HP Floor Space Required, W x D 8' x 7' Weight, Approximately 4050 LBS NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE.

Core Specifications

Manufacturer: CINCINNATI MILACRON

Model: CINTIMILL 205

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
