KEYENCE CV-5500, CONTROLS PLCS, 2 CAM IN, 16 DI, 24 DO, ETH, RS-232C, USB, 2 STROBE CH, 24 VDC

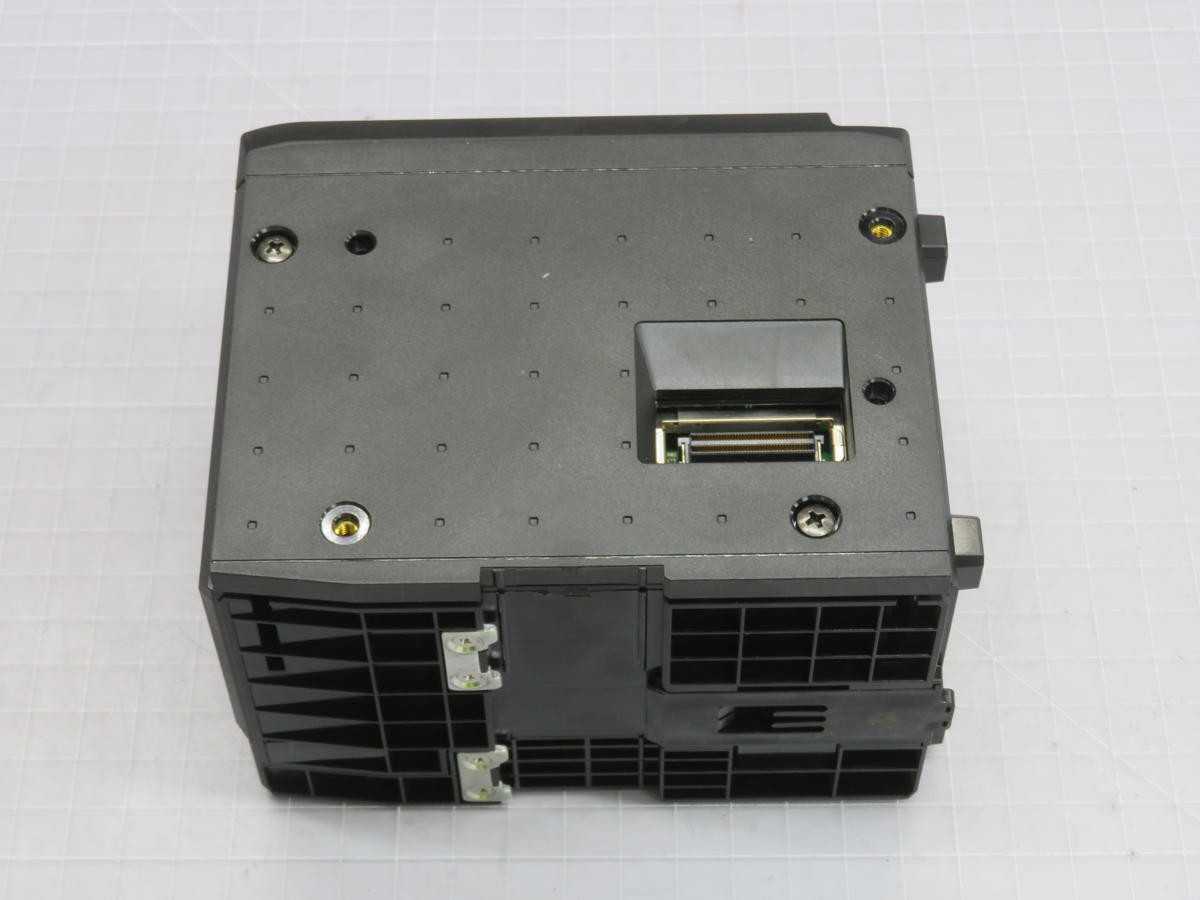

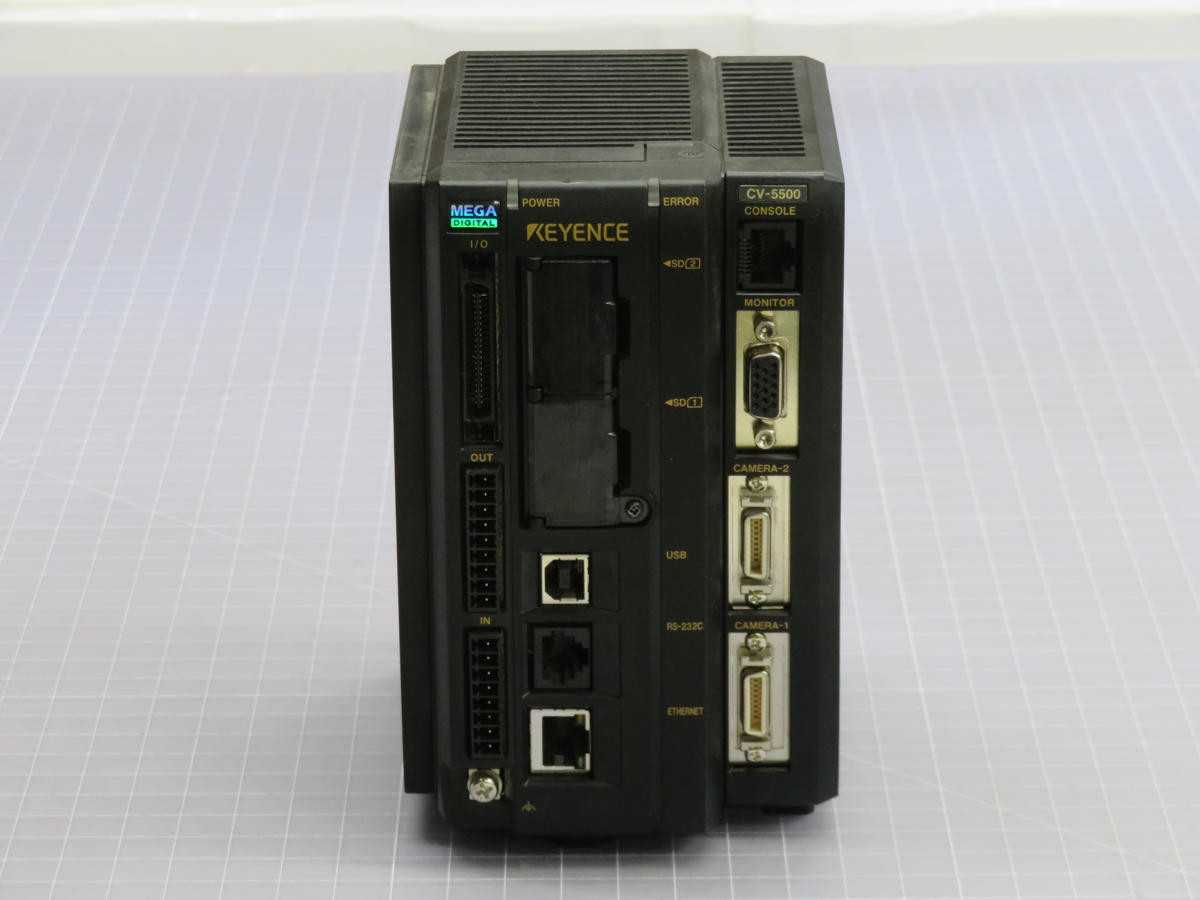

THE KEYENCE CV-5500 IS A DIGITAL IMAGE SENSOR AND CONTROLLER ENGINEERED FOR MACHINE VISION APPLICATIONS WITHIN INDUSTRIAL CONTROL SYSTEMS. THIS CONTROLLER SUPPORTS THE SIMULTANEOUS CONNECTION OF UP TO TWO DIGITAL CAMERAS FOR IMAGE ACQUISITION. IT INTEGRATES 16 PHOTO-COUPLER INPUTS AND 24 PHOTO-COUPLER OUTPUTS FOR ROBUST SYSTEM INTERFACING. COMMUNICATION CAPABILITIES INCLUDE A 100BASE-TX ETHERNET PORT, AN RS-232C SERIAL INTERFACE, AND USB PORTS. AN ONBOARD COMPACTFLASH CARD SLOT FACILITATES EXTERNAL DATA STORAGE. THE UNIT ALSO PROVIDES TWO DEDICATED CHANNELS FOR STROBE LIGHTING CONTROL. DISPLAY OUTPUT IS MANAGED VIA A D-SUB 15-PIN CONNECTOR, SUPPORTING XGA OR SVGA MONITORS. THE SYSTEM OPERATES ON A 24 VDC ±10% POWER SUPPLY.
