KEYENCE LJV7060B SENSORS, 24-48 MM Z-RANGE, 0.2 ΜM Z-REPEAT, 64 KHZ SPEED, IP67

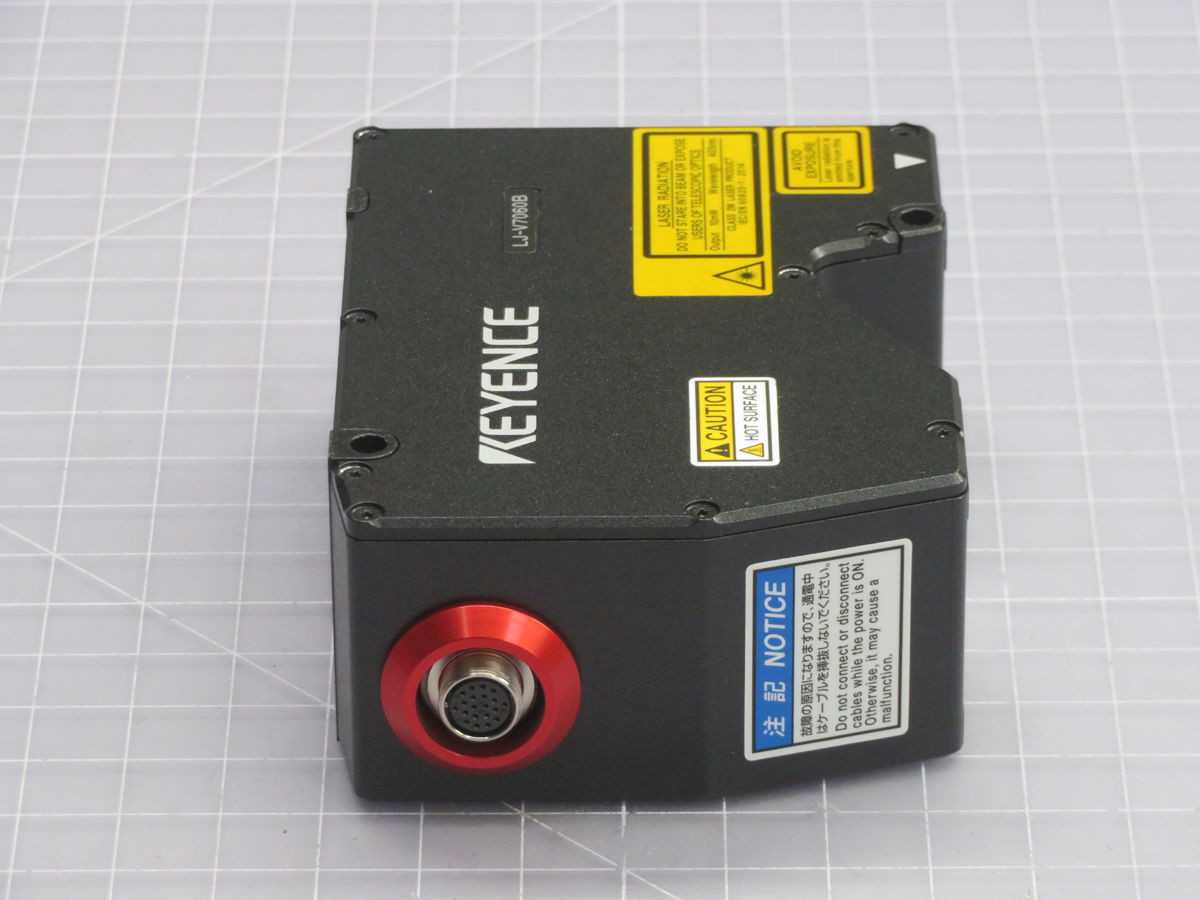

THE KEYENCE LJV7060B IS A 2D LASER DISPLACEMENT SENSOR HEAD DESIGNED FOR HIGH-PRECISION PROFILING AND MEASUREMENT. IT UTILIZES A BLUE SEMICONDUCTOR LASER LIGHT SOURCE WITH A WAVELENGTH OF 405 NM, EMITTING A VISIBLE BEAM CLASSIFIED AS A CLASS 2M LASER. OPERATING ON THE PRINCIPLE OF 2D LASER TRIANGULATION, THE SENSOR PROVIDES A Z-AXIS MEASUREMENT RANGE OF 36 ±12 MM (24 TO 48 MM ABSOLUTE) AND AN X-AXIS MEASUREMENT RANGE OF 28 MM AT A NOMINAL DISTANCE OF 36 MM. IT ACHIEVES A Z-AXIS REPEATABILITY OF 0.2 ΜM AND AN X-AXIS RESOLUTION OF 28 ΜM, WITH A LASER LINE LENGTH OF 28 MM. THE LJV7060B SUPPORTS A MAXIMUM SAMPLING SPEED OF 64 KHZ. PHYSICALLY, THE SENSOR HEAD MEASURES APPROXIMATELY 56 MM (W) × 138 MM (H) × 80 MM (D) AND WEIGHS APPROXIMATELY 1100 G. IT FEATURES AN IP67 ENCLOSURE RATING FOR ENVIRONMENTAL PROTECTION.
