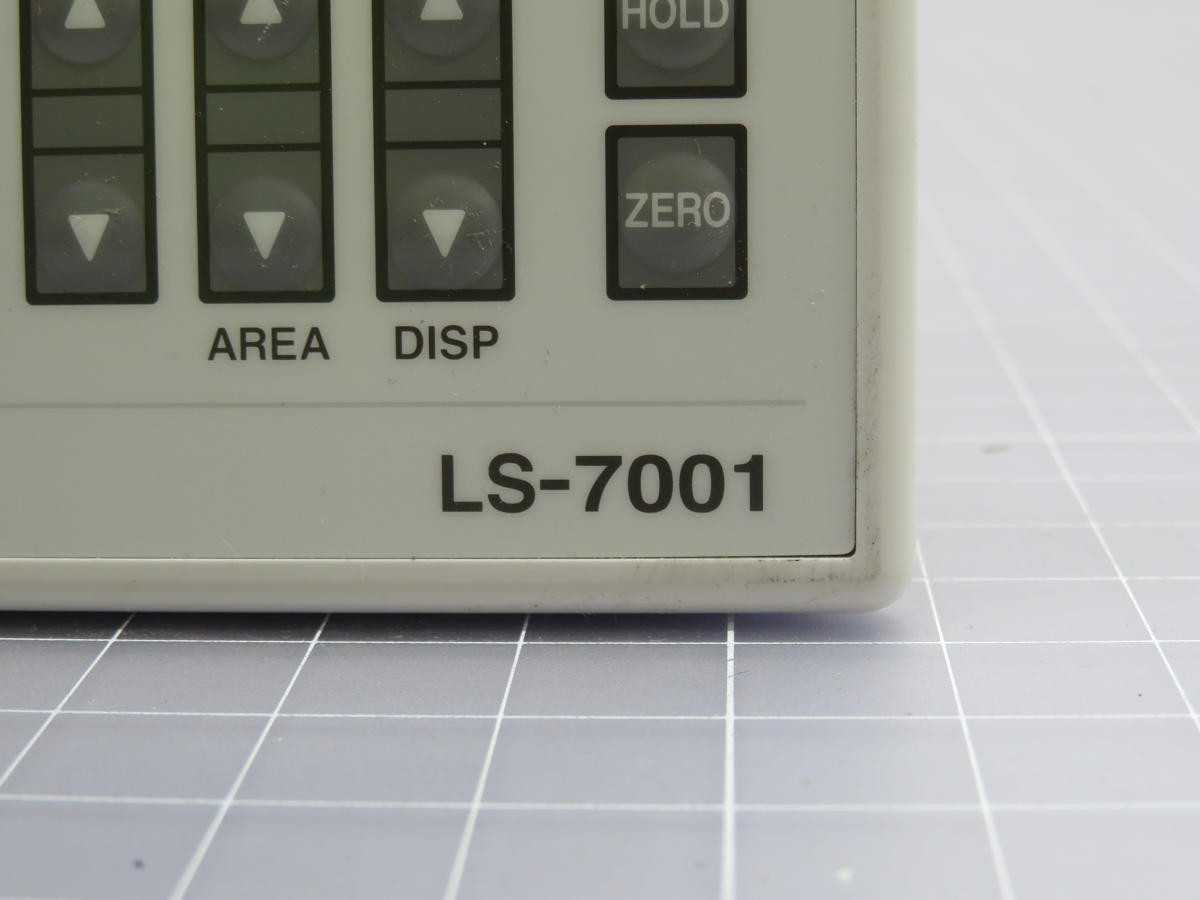

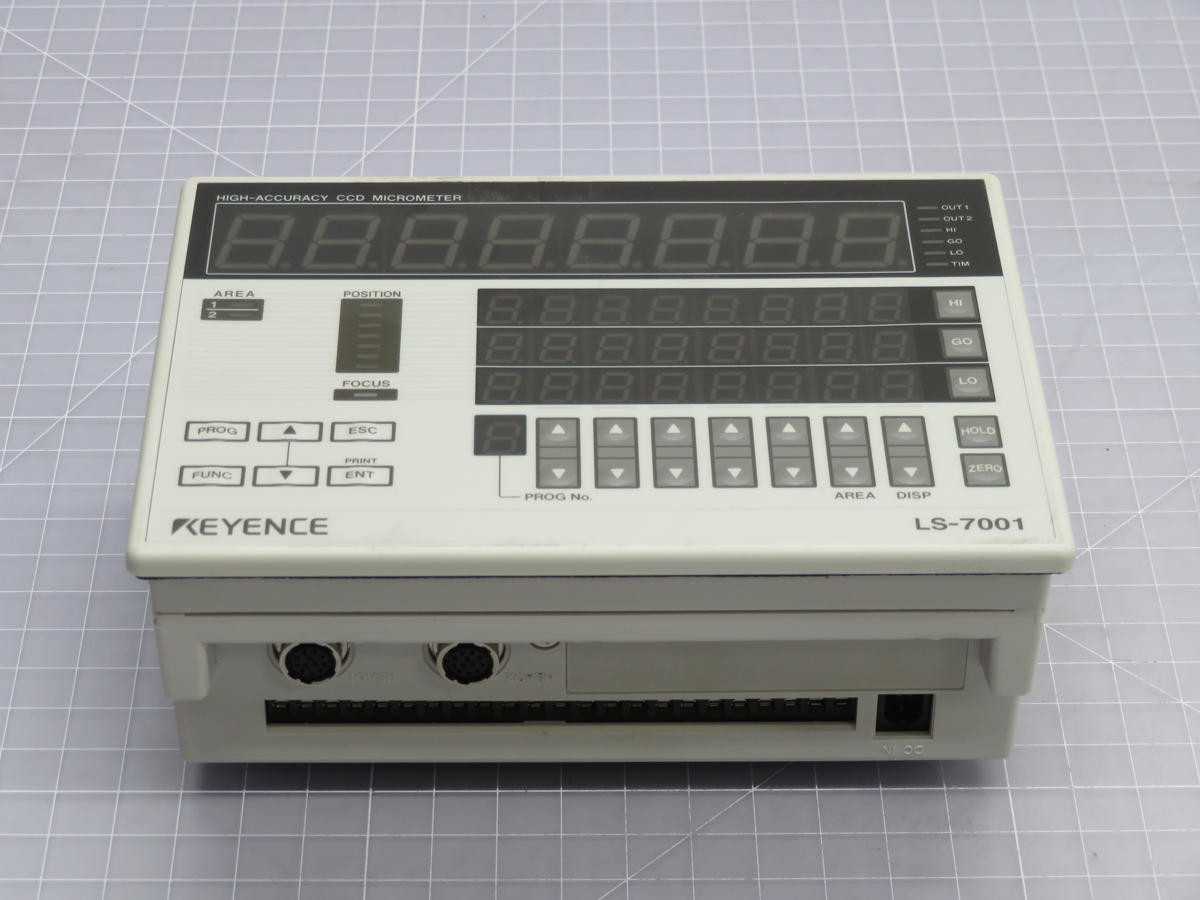

KEYENCE LS-7001 SENSOR HEAD, 0.05-10 MM RANGE, 0.01 ΜM RESOLUTION, 2400 SAMPLES/SEC

THE KEYENCE LS-7001 IS A HIGH-ACCURACY CCD MICROMETER SENSOR HEAD DESIGNED FOR NON-CONTACT MEASUREMENT APPLICATIONS. IT FEATURES A MEASUREMENT RANGE OF 0.05 TO 10 MM, CAPABLE OF DETECTING A MINIMUM DIAMETER OF 0.05 MM. THE SENSOR HEAD EMPLOYS A RED SEMICONDUCTOR LASER LIGHT SOURCE WITH A WAVELENGTH OF 670 NM AND UTILIZES A 2048-ELEMENT CCD LINE SENSOR FOR PRECISE DETECTION. IT DELIVERS A RESOLUTION OF 0.01 ΜM, ACHIEVING A REPEATABILITY OF ±0.03 ΜM AND A LINEARITY OF ±0.05 ΜM. MEASUREMENT ACQUISITION SPEEDS REACH UP TO 2400 SAMPLES PER SECOND IN FAST MODE OR 1200 SAMPLES PER SECOND IN NORMAL MODE. CONSTRUCTED FROM ALUMINUM DIE-CAST, THE SENSOR HEAD HAS PHYSICAL DIMENSIONS OF 32 MM (W) X 64 MM (D) X 134 MM (H) AND WEIGHS APPROXIMATELY 600 G. IT IS RATED FOR IP64 PROTECTION AND OPERATES WITHIN A TEMPERATURE RANGE OF 0 TO 50 °C.
