KEYSIGHT N6700B N6744B MODULAR POWER SUPPLY MAINFRAME, 400W, 120/240 VAC, 1 PHASE, 35V, 3A

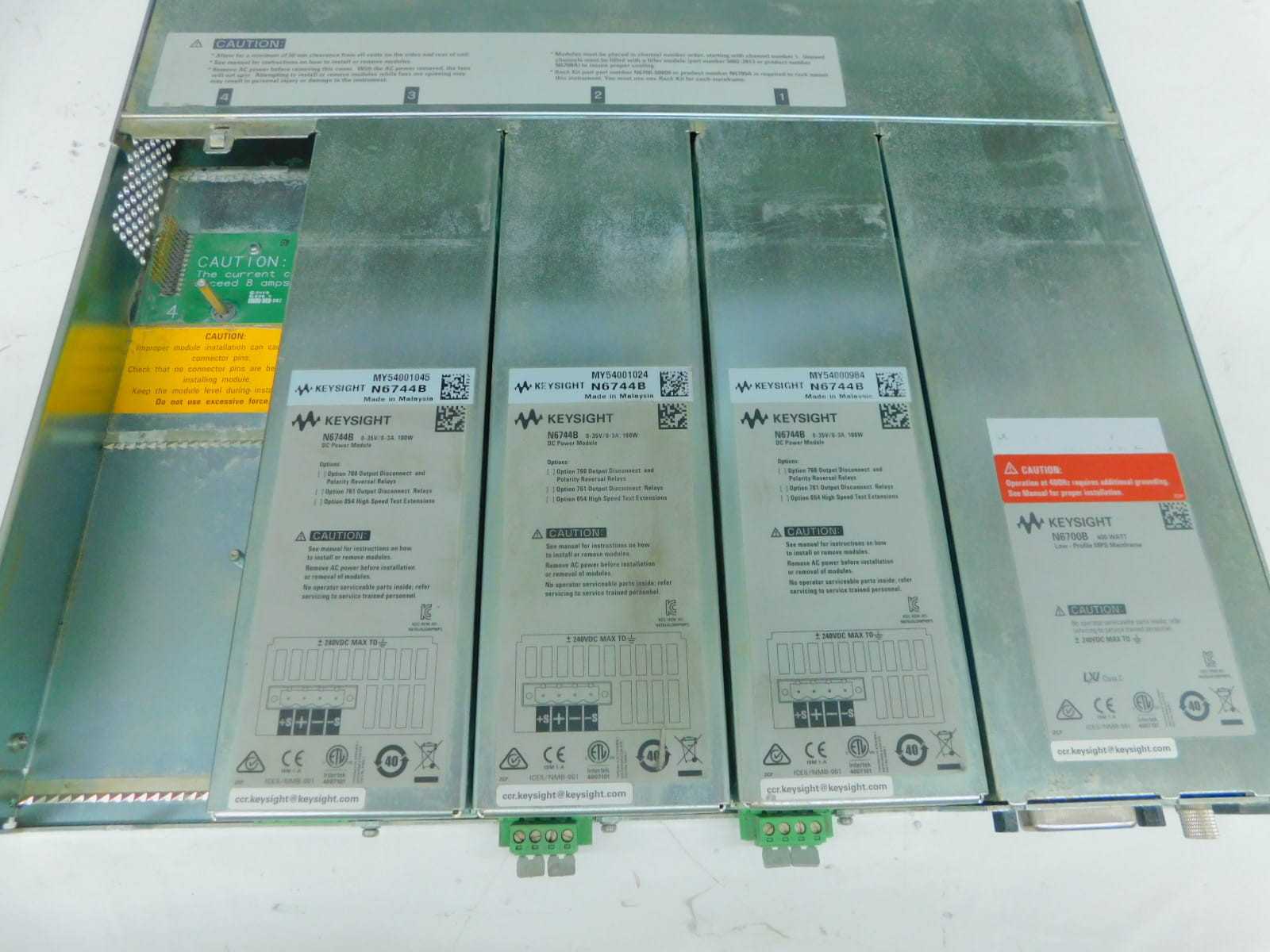

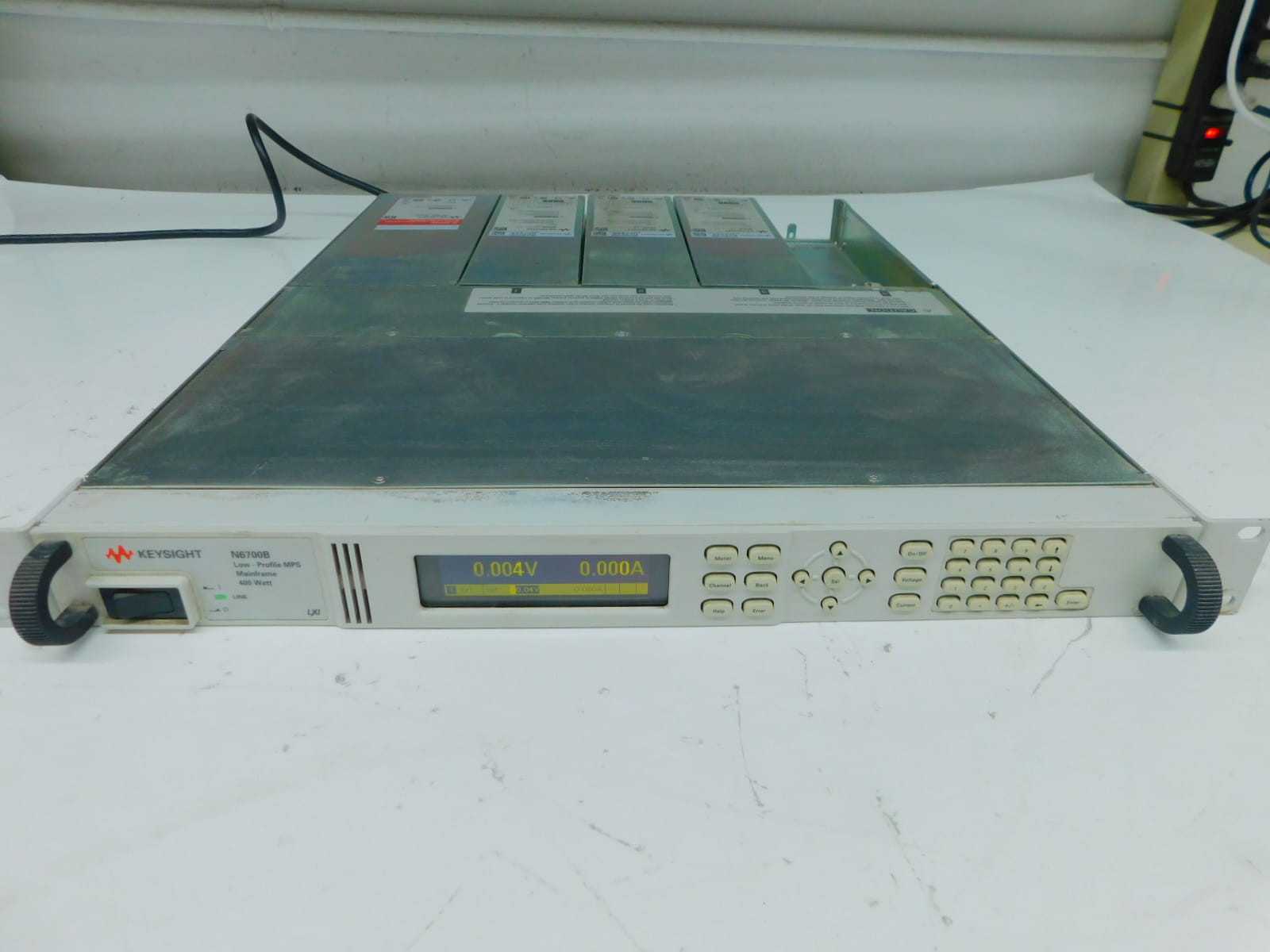

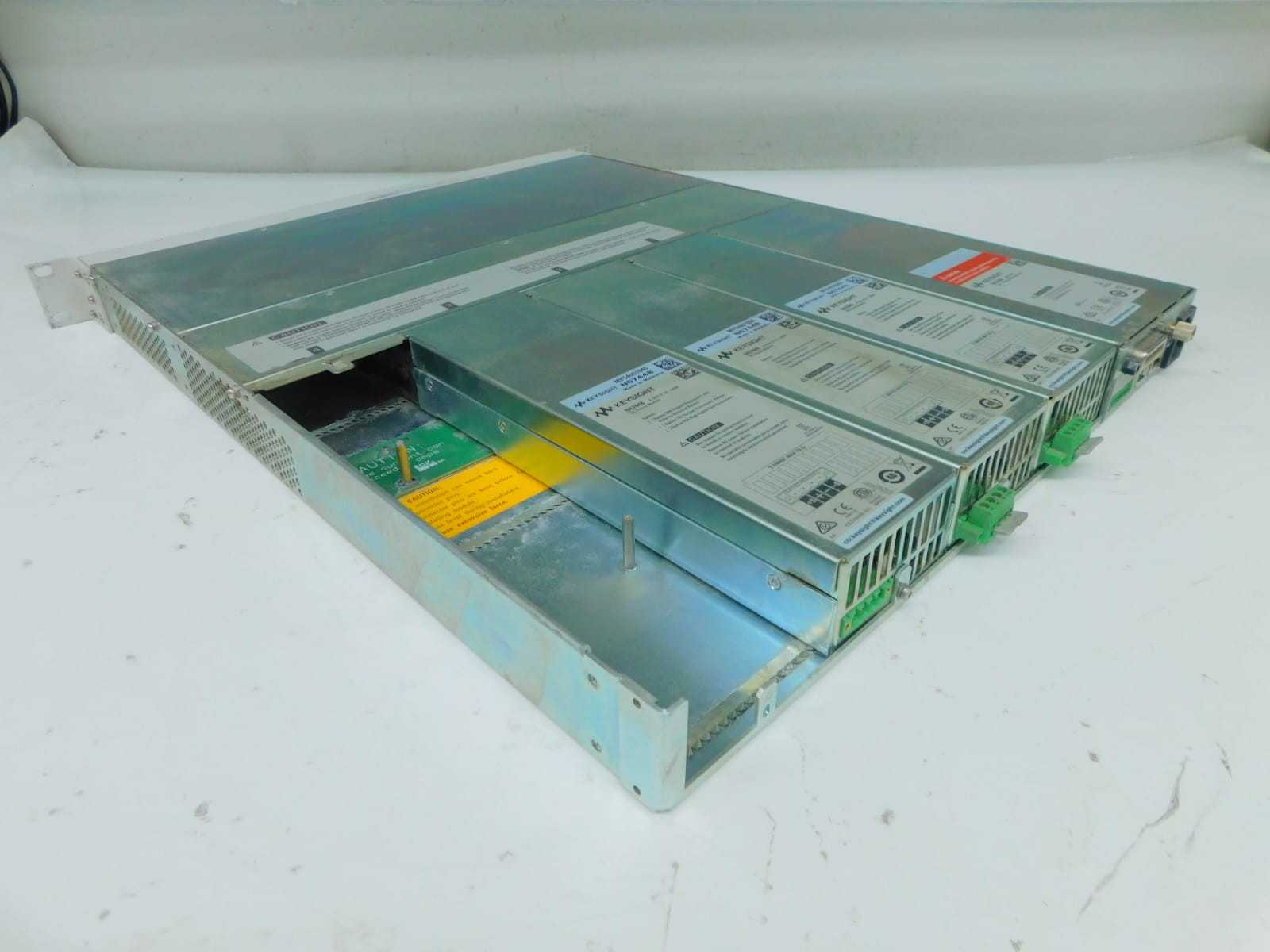

THE KEYSIGHT N6700B IS A 1U LOW-PROFILE MODULAR POWER SUPPLY MAINFRAME DESIGNED FOR AUTOMATED TEST ENVIRONMENTS, CAPABLE OF HOSTING UP TO FOUR DC POWER MODULES WITH A MAXIMUM TOTAL OUTPUT POWER OF 400 W. THIS UNIT FEATURES UNIVERSAL AC INPUT OF 120/240 VAC AND INCLUDES STANDARD CONNECTIVITY VIA GPIB, USB 2.0, AND 10/100 BASE-T ETHERNET LAN, WITH FULL LXI CLASS C COMPLIANCE. THE SYSTEM IS CONFIGURED WITH THREE MODULES, INCLUDING THE N6744B, WHICH IS A 105 W BASIC DC POWER MODULE. THE N6744B PROVIDES A SINGLE OUTPUT WITH RATINGS OF UP TO 35 V AND 3 A. IT FEATURES A PROGRAMMING ACCURACY OF 0.1% + 35 MV FOR VOLTAGE AND 0.15% + 20 MA FOR CURRENT, WITH A LOW RIPPLE AND NOISE SPECIFICATION OF 5 MV RMS. THE SYSTEM SUPPORTS ADVANCED FEATURES SUCH AS PROGRAMMABLE VOLTAGE SLEW RATES, OUTPUT SEQUENCING WITH ADJUSTABLE DELAY TIMES, AND 4-WIRE REMOTE SENSING TO COMPENSATE FOR VOLTAGE DROPS IN LOAD LEADS. COMPREHENSIVE HARDWARE PROTECTION INCLUDES OVER-VOLTAGE (OVP), OVER-CURRENT (OCP), AND OVER-TEMPERATURE (OTP) CIRCUITS. THE MAINFRAME'S COMPACT DESIGN ALLOWS FOR HIGH-DENSITY RACK MOUNTING WITH SIDE-VENTED COOLING, ENABLING OTHER INSTRUMENTS TO BE MOUNTED DIRECTLY ABOVE OR BELOW THE UNIT.
