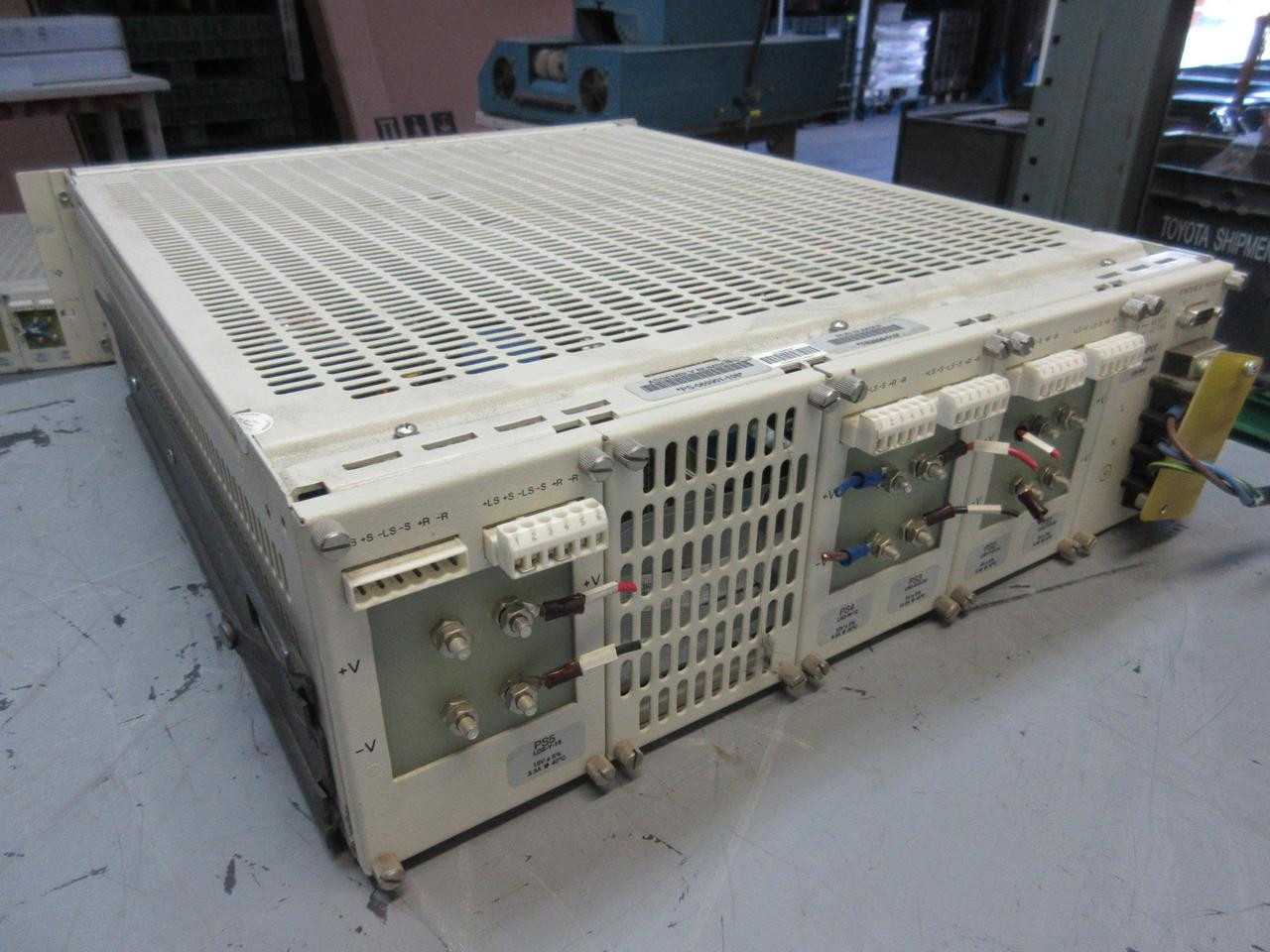

LAMBDA PS-060901-108 UPS POWER SUPPLY, 0-6 VDC OUT, 0-90 A OUT, 540 W MAX POWER, 0.01% REGULATION

THE LAMBDA PS-060901-108 IS A REGULATED DC POWER SUPPLY DESIGNED FOR INDUSTRIAL AND LABORATORY APPLICATIONS, CATEGORIZED AS A UPS POWER SUPPLY. IT PROVIDES A VARIABLE OUTPUT VOLTAGE RANGE OF 0 TO 6 VDC AND A VARIABLE OUTPUT CURRENT RANGE OF 0 TO 90 AMPS, DELIVERING A MAXIMUM POWER OUTPUT OF 540 WATTS. THE UNIT SUPPORTS DUAL INPUT VOLTAGE CONFIGURATIONS, ACCEPTING EITHER 105-125 VAC OR 208-250 VAC AT 50/60 HZ, TYPICALLY SELECTABLE. OPERATIONAL MODES INCLUDE BOTH CONSTANT VOLTAGE (CV) AND CONSTANT CURRENT (CC). KEY FEATURES INCLUDE REMOTE SENSING, REMOTE PROGRAMMING CAPABILITY, AND INTEGRATED PROTECTION MECHANISMS SUCH AS OVERVOLTAGE PROTECTION (OVP), OVERCURRENT PROTECTION (OCP), AND THERMAL PROTECTION. LOAD AND LINE REGULATION ARE SPECIFIED AT 0.01% PLUS 1MV. OUTPUT RIPPLE AND NOISE ARE CHARACTERIZED BY 1MV RMS AND 5MV PEAK-TO-PEAK.
