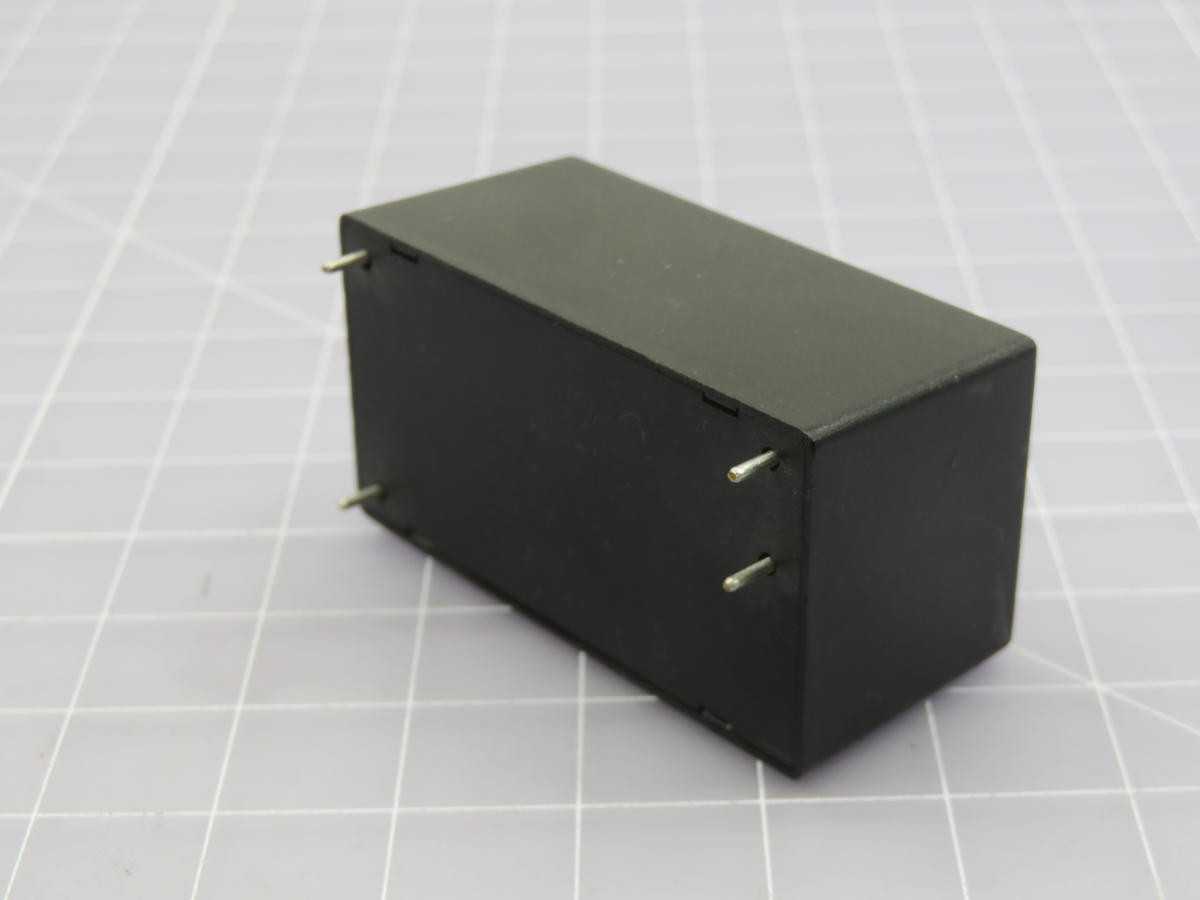

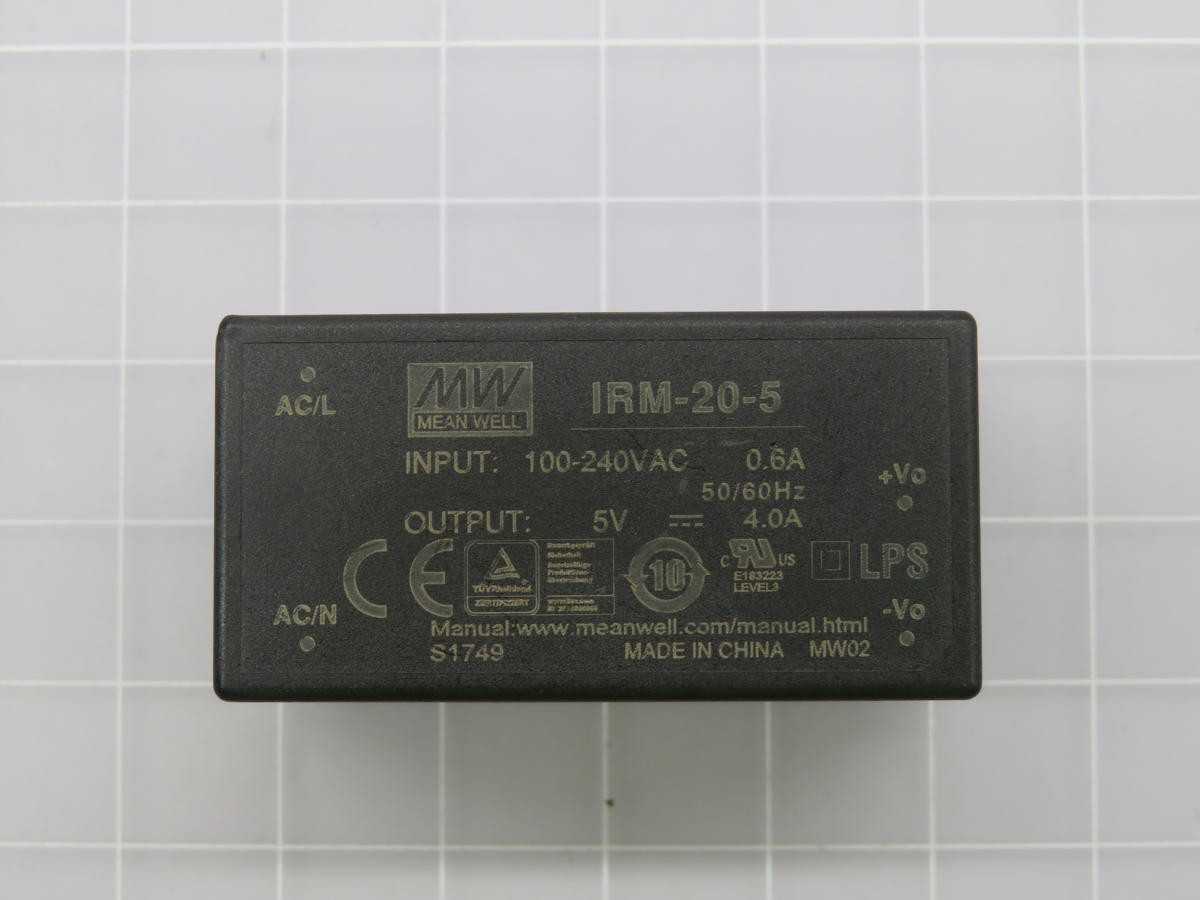

MEAN WELL IRM-20-5 AC/DC PSU, 20W POWER, 5VDC 4A OUTPUT, 52X27.2X24 MM DIMENSIONS

THE MEAN WELL IRM-20-5 IS AN AC/DC SINGLE OUTPUT ENCAPSULATED POWER SUPPLY MODULE RATED FOR 20W. IT ACCEPTS A UNIVERSAL INPUT VOLTAGE RANGE OF 85 TO 305 VAC, PROVIDING A REGULATED 5 VDC OUTPUT AT 4.0 A. THIS UNIT ACHIEVES AN EFFICIENCY OF UP TO 85% AND MAINTAINS A NO-LOAD POWER CONSUMPTION BELOW 0.075W. INTEGRATED PROTECTION FEATURES INCLUDE SHORT CIRCUIT, OVERLOAD, AND OVER VOLTAGE SAFEGUARDS. DESIGNED FOR OPERATION ACROSS A WIDE TEMPERATURE SPECTRUM FROM -30 TO +70°C, IT FEATURES AN I/P-O/P ISOLATION VOLTAGE OF 3KVAC. THE MODULE HAS COMPACT DIMENSIONS OF 52MM X 27.2MM X 24MM (L X W X H) AND IS SUITABLE FOR PCB MOUNTING. IT COMPLIES WITH SAFETY STANDARDS SUCH AS UL62368-1 AND TUV EN62368-1.
