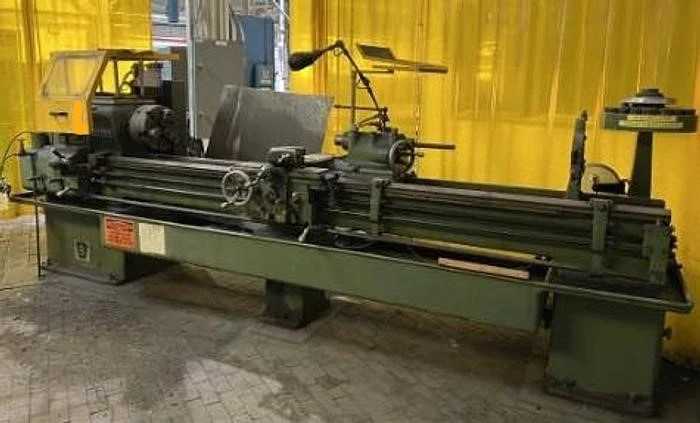

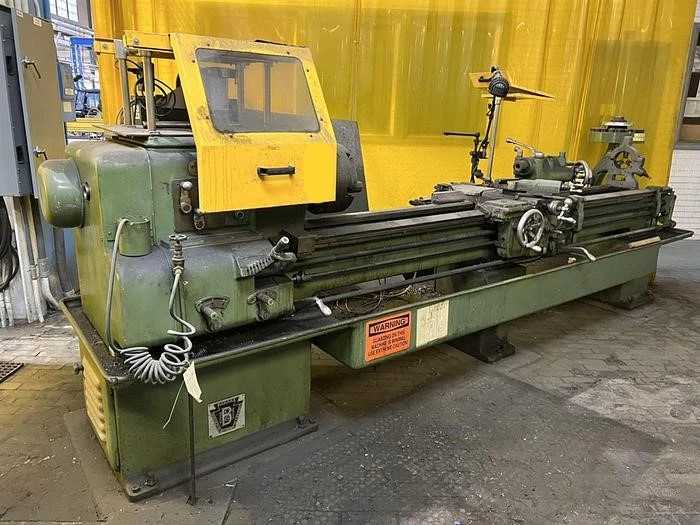

Leblond Heavy-Duty Engine Lathe 16.5" Swing x 102" Centers, Taper/DRO, 1250 RPM

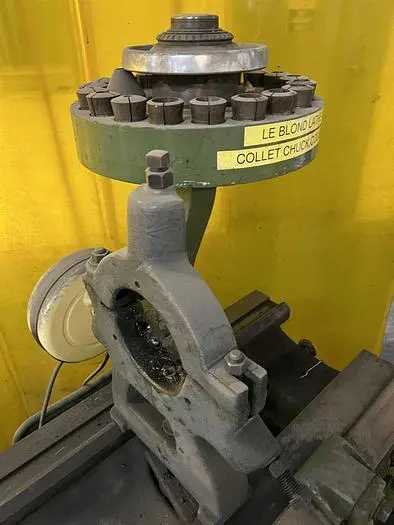

THE LEBLOND SERIES "14 HEAVY-DUTY" ENGINE LATHE OFFERS A 16.5-INCH ACTUAL SWING OVER THE BED WAYS AND A 9.75-INCH SWING OVER THE CROSS SLIDE, WITH A 102-INCH DISTANCE BETWEEN CENTERS. THE SPINDLE FEATURES A 1.34-INCH BORE AND PROVIDES 24 SPEEDS RANGING FROM 25 TO 1250 RPM. THIS MODEL IS EQUIPPED WITH A TAPER ATTACHMENT, A 12-INCH 3-JAW CHUCK, A COLLET CHUCK WITH COLLETS, AND POWER RAPID TRAVERSE. OTHER FEATURES INCLUDE HARD WAYS, A THREADING DIAL, A STEADY REST, AND A FOLLOW REST. CARRIAGE LONGITUDINAL FEEDS RANGE FROM .0021 TO .126 IPR, AND THREAD CHANGES ARE AVAILABLE FROM 2 TO 120 TPI. THE MACHINE HAS AN APPROXIMATE WEIGHT OF 6500 POUNDS.
