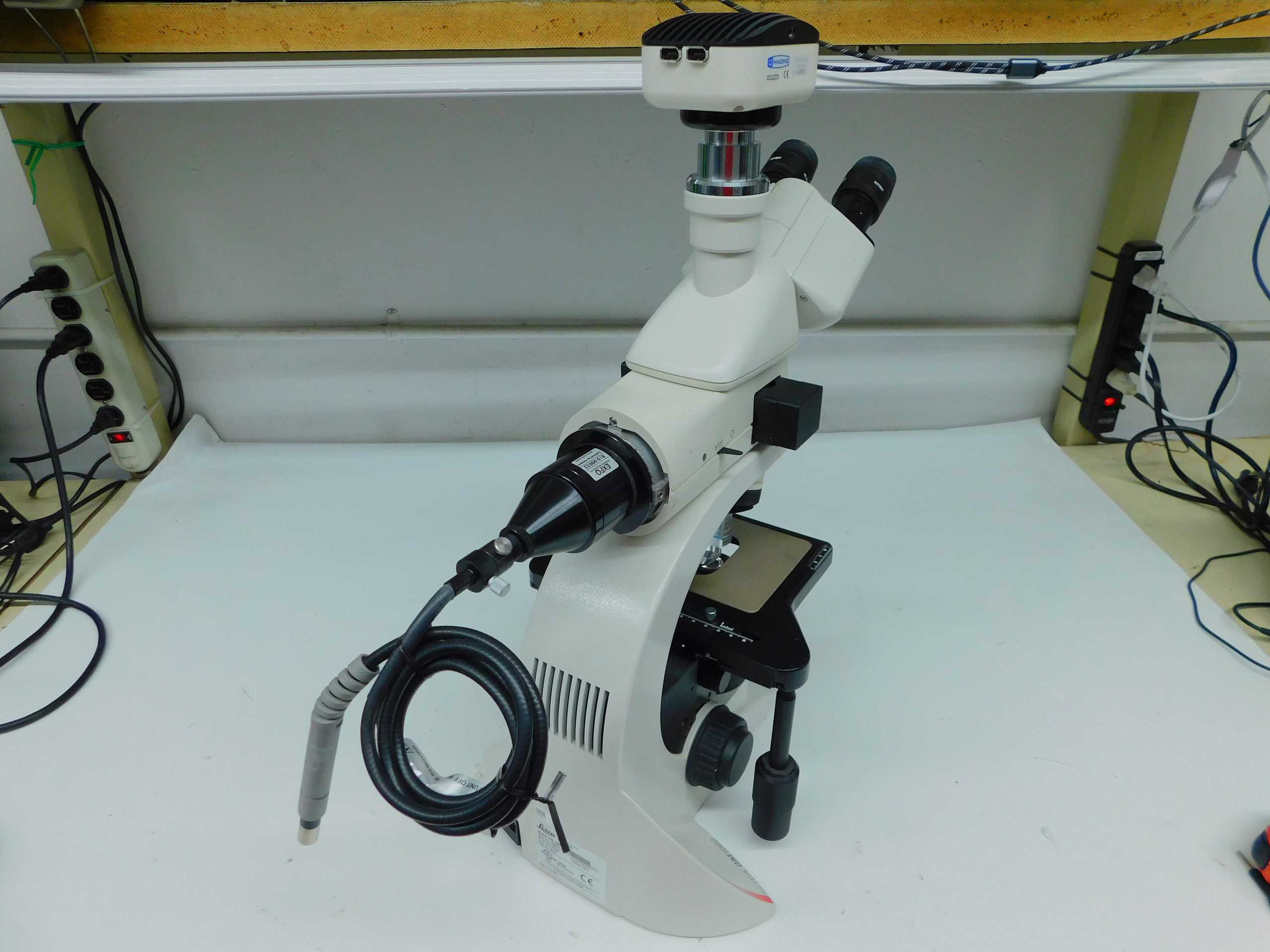

Leica DM1000 System Microscope With 5-Position Nosepiece And Hi Plan Objectives

THE LEICA DM1000 IS AN ERGONOMICALLY DESIGNED SYSTEM MICROSCOPE OPTIMIZED FOR CLINICAL LABORATORY APPLICATIONS INCLUDING CYTOLOGY, HEMATOLOGY, AND PATHOLOGY. IT FEATURES A MODULAR DESIGN WITH A 5-POSITION REVOLVING NOSEPIECE AND HIGH-PERFORMANCE HI PLAN PLANACHROMAT OBJECTIVES THAT OFFER IMPROVED FIELD-FLATTENING AND CHROMATIC CORRECTION. THE OPTICAL SYSTEM IS DESIGNED FOR TRANSMITTED LIGHT AND CAN BE CONFIGURED FOR CONTRAST METHODS SUCH AS BRIGHTFIELD, DARKFIELD, PHASE CONTRAST, QUALITATIVE POLARIZATION, AND FLUORESCENCE. STANDARD TECHNICAL SPECIFICATIONS INCLUDE A 140 X 140 MM MECHANICAL STAGE WITH AN ULTRA-HARD CERAMIC SURFACE AND A TRAVEL RANGE OF 76 MM X 25 MM. THE FOCUSING MECHANISM UTILIZES A COAXIAL COARSE AND FINE DRIVE WITH INTEGRATED THERMAL COMPENSATION TO PREVENT FOCUS DRIFT. ERGONOMIC HIGHLIGHTS INCLUDE HEIGHT-ADJUSTABLE FOCUS KNOBS, SYMMETRICAL ARRANGEMENT OF STAGE AND FOCUS CONTROLS, AND A CHOICE OF FIXED 15 DEGREE OR ADJUSTABLE TILTING EYETUBES WITH FIELD OF VIEW OPTIONS UP TO 25 MM. THIS MODEL IS COMPATIBLE WITH SEVERAL ILLUMINATION SOURCES, INCLUDING A 12V 30W HALOGEN LAMP OR LONG-LIFE LED ILLUMINATION PROVIDING CONSTANT COLOR TEMPERATURE. THE SYSTEM OPERATES ON A UNIVERSAL POWER SUPPLY OF 90-250 V AT 47-63 HZ AND CAN BE EQUIPPED WITH AN ICC50 W CAMERA FOR DIGITAL IMAGING VIA HDMI, WIFI, OR USB. ITS COMPACT FOOTPRINT MEASURES APPROXIMATELY 26 CM WIDE, 21 CM DEEP, AND 45 CM HIGH, WEIGHING ROUGHLY 4.8 KG.
