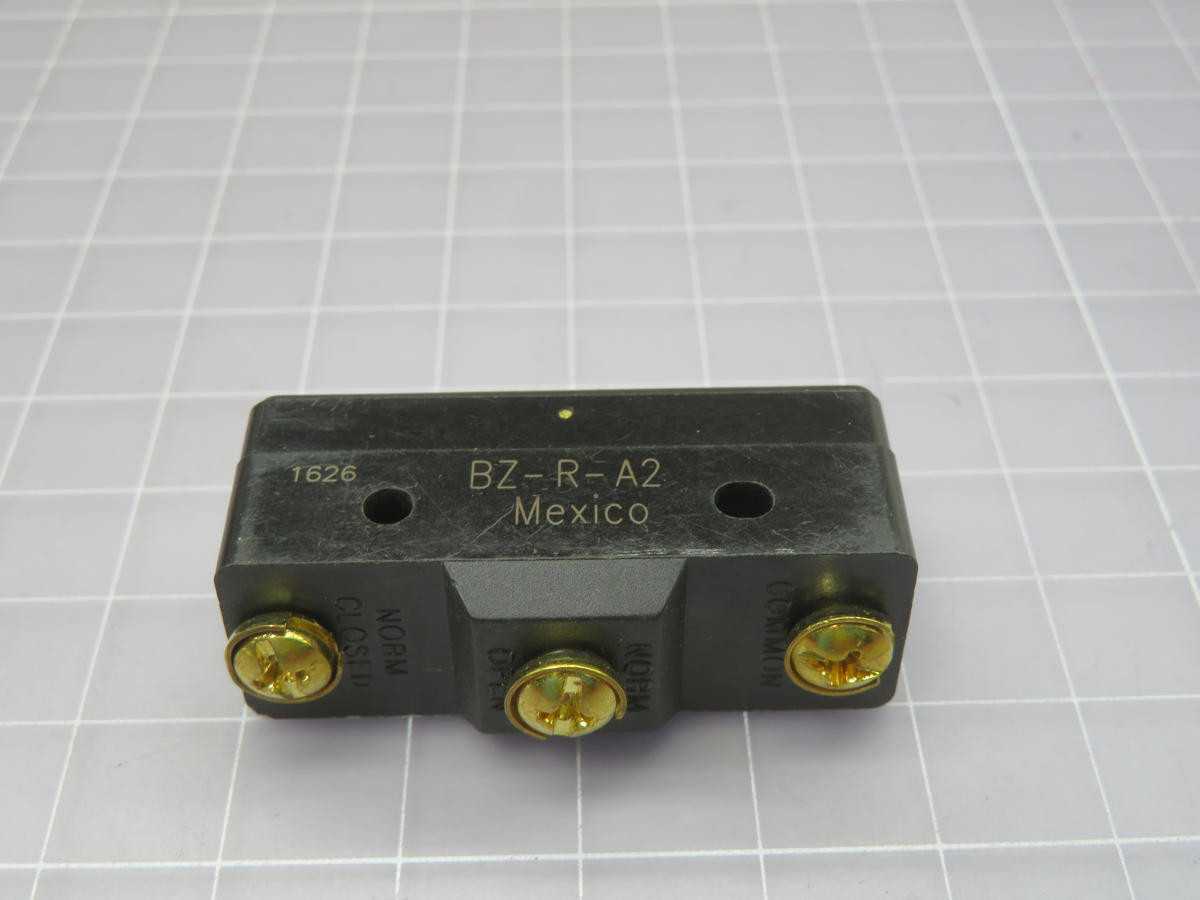

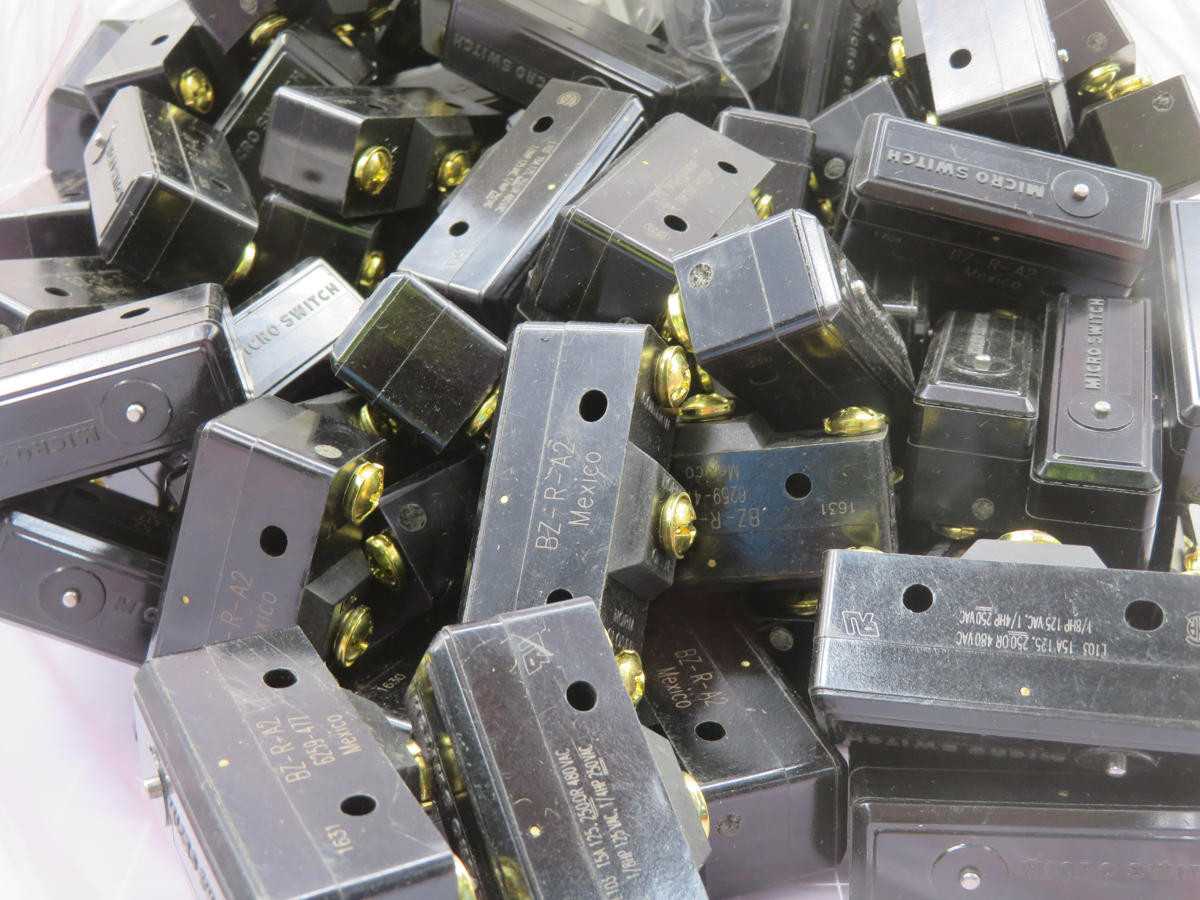

LOT OF 175 HONEYWELL BZ-R-A2 BASIC SWITCH

THE HONEYWELL BZ-R-A2 IS A STANDARD BASIC SNAP MICRO SWITCH. IT FEATURES A 15A, 250VAC ELECTRICAL RATING, FURTHER SPECIFIED FOR 125/250/480 VAC, 1/8 HP AT 125 VAC, 1/4 HP AT 250 VAC, 1/2A AT 125 VDC, AND 1/4A AT 250 VDC. THIS SPDT (SINGLE POLE DOUBLE THROW) SWITCH UTILIZES A PIN PLUNGER ACTUATOR AND SCREW TERMINALS FOR CONNECTIVITY. CONSTRUCTED WITH A HIGH-QUALITY PHENOLIC HOUSING, IT IS DESIGNED FOR AN OPERATING TEMPERATURE RANGE OF -55°C TO 85°C. KEY OPERATIONAL SPECIFICATIONS INCLUDE A MAXIMUM OPERATING FORCE OF 7.0 OZ (1.95 N), MINIMUM RELEASE FORCE OF 2.0 OZ (0.56 N), MAXIMUM PRETRAVEL OF 0.050 INCH (1.27 MM), AND MAXIMUM DIFFERENTIAL TRAVEL OF 0.005 INCH (0.13 MM). THE SWITCH OFFERS A MECHANICAL LIFE OF 20,000,000 OPERATIONS AND AN ELECTRICAL LIFE OF 500,000 OPERATIONS, CARRYING UL AND CSA AGENCY APPROVALS.
