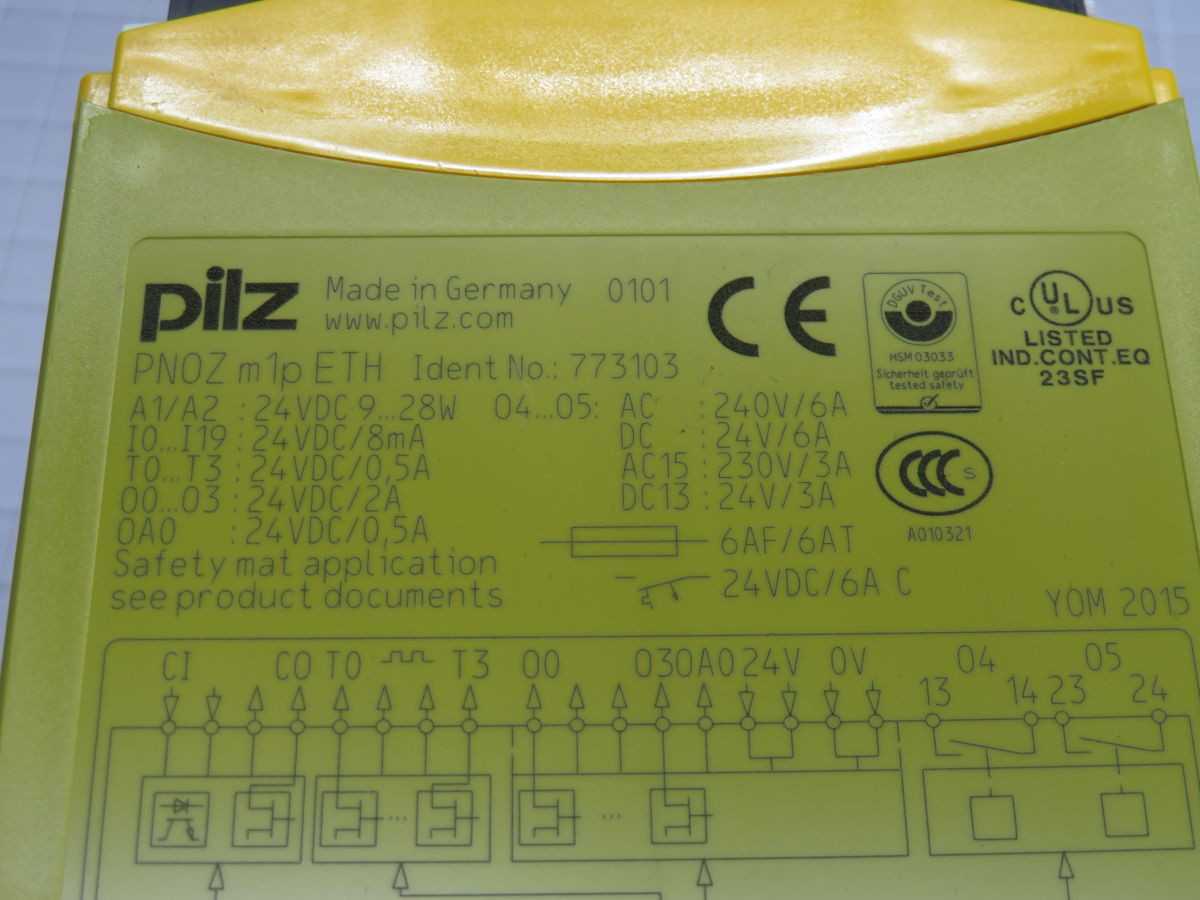

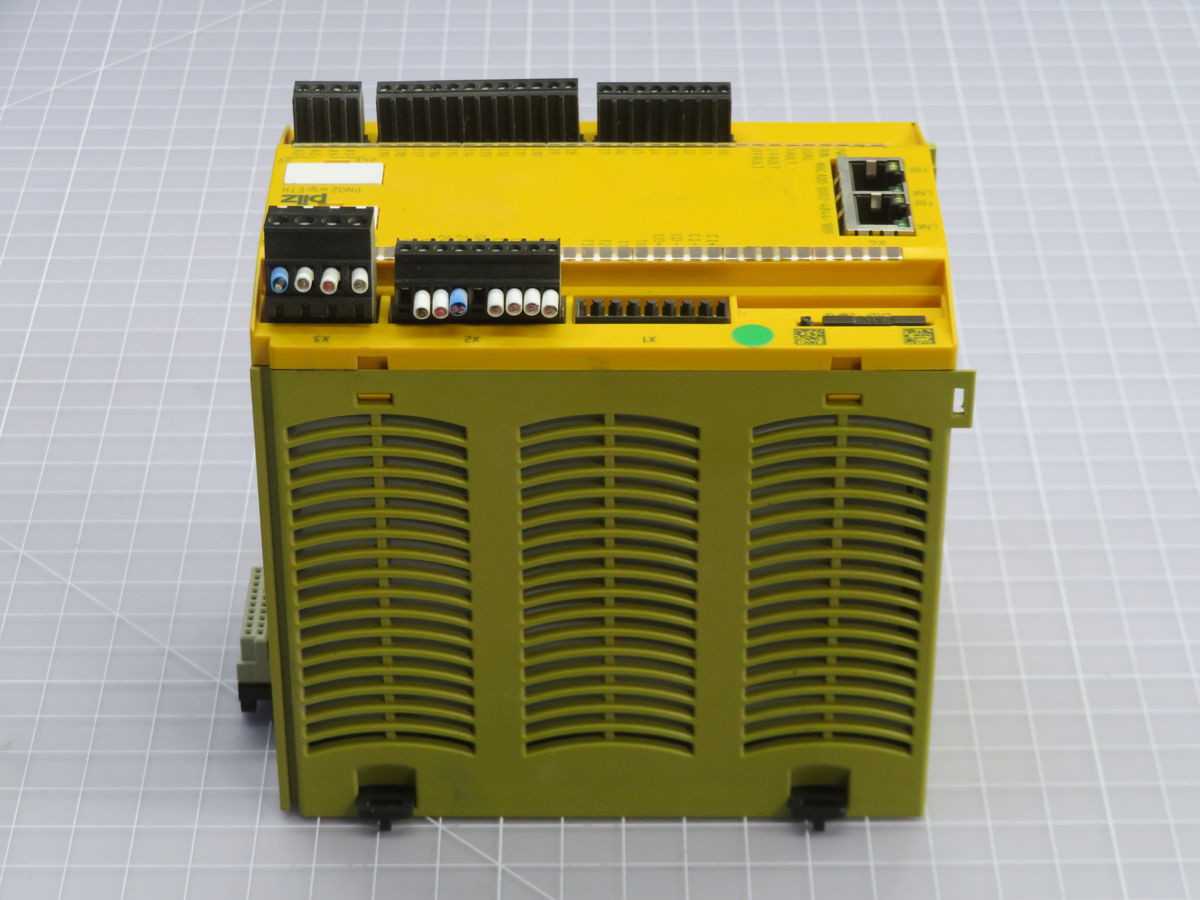

PILZ PNOZ M1P ETH, SAFETY CONTROL MODULE, 24VDC, 20 DI, 4 SO, 2 RO, 4 TPO, 1 CO, 2 ETHERNET, 6A/240VAC RO

THE PILZ PNOZ M1P ETH 773103 BASE UNIT IS A SAFETY CONTROL MODULE ENGINEERED FOR OPERATION AT 24VDC. IT INTEGRATES 20 DIGITAL INPUTS, 4 SEMICONDUCTOR OUTPUTS, 2 RELAY OUTPUTS, 4 TEST PULSE OUTPUTS, AND 1 CASCADING OUTPUT. FOR NETWORK CONNECTIVITY, THE MODULE INCLUDES TWO ETHERNET INTERFACES. TERMINAL OPTIONS COMPRISE BOTH SCREW AND SPRING-LOADED TYPES. THE RELAY OUTPUTS ARE RATED FOR A MAXIMUM SWITCHING CURRENT OF 6A, CAPABLE OF HANDLING VOLTAGES UP TO 240VAC.
