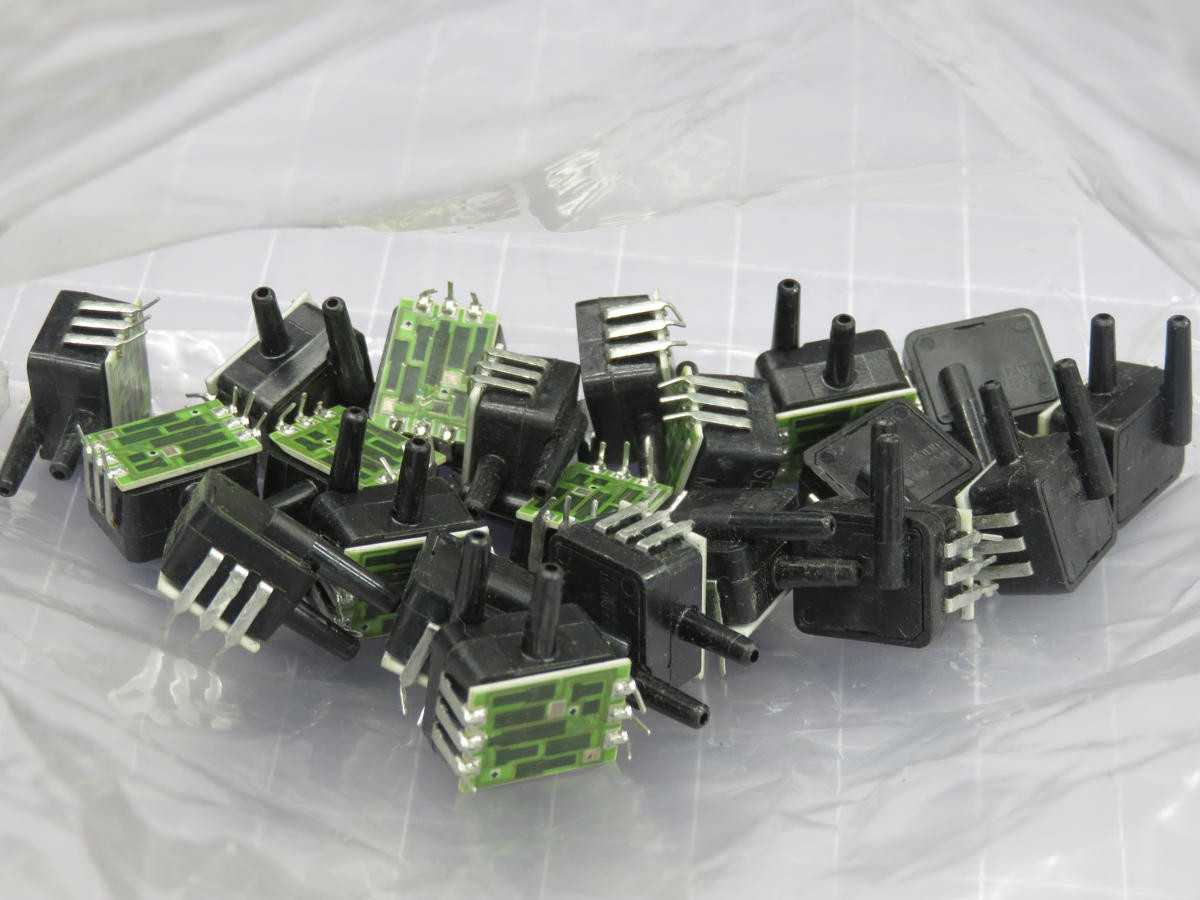

LOT OF 20 HONEYWELL SDX05D4 PRESSURE SENSOR

THE HONEYWELL SDX05D4 IS A SILICON DIAPHRAGM PRESSURE SENSOR ENGINEERED FOR DIFFERENTIAL PRESSURE MEASUREMENT. IT OPERATES WITHIN A NOMINAL PRESSURE RANGE OF 0 TO 5 PSI. THIS SENSOR PROVIDES A RATIOMETRIC MILLIVOLT OUTPUT, TYPICALLY GENERATING 18 MV PER VOLT OF EXCITATION AT FULL SCALE. IT SUPPORTS AN EXCITATION VOLTAGE RANGE FROM 1.0 VDC UP TO 20 VDC. PERFORMANCE SPECIFICATIONS INCLUDE A TYPICAL NON-LINEARITY AND HYSTERESIS OF ±0.5% OF FULL SCALE. THE DEVICE IS DESIGNED FOR OPERATION ACROSS A TEMPERATURE RANGE OF -40°C TO 85°C AND IS COMMONLY PACKAGED FOR BOARD-LEVEL INTEGRATION.
