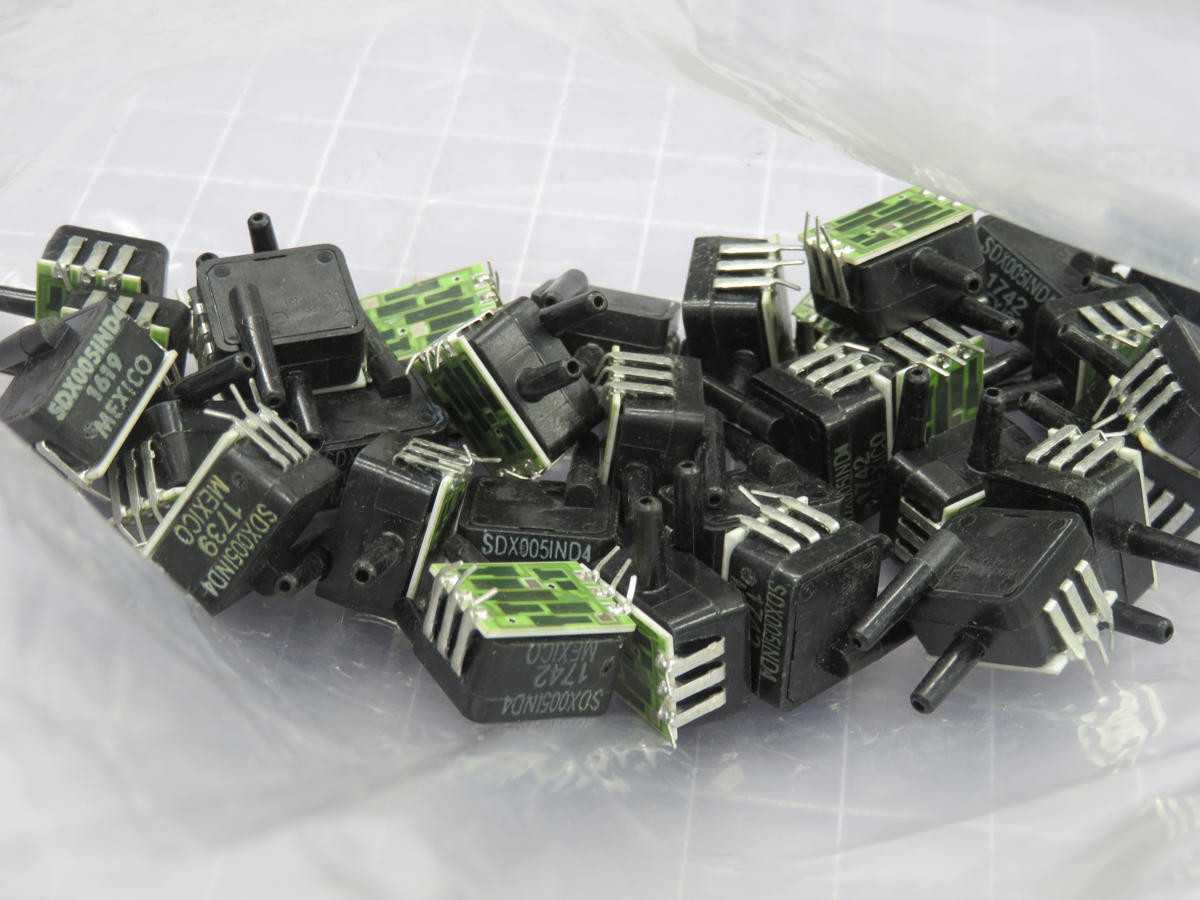

LOT OF 35 HONEYWELL SDX005IND4 PRESSURE SENSOR/TRANSDUCER

THE HONEYWELL SDX005IND4 IS A SILICON PRESSURE SENSOR DESIGNED FOR MEASURING DIFFERENTIAL PRESSURE WITHIN A RANGE OF 0 TO 5 PSI. THIS DEVICE PROVIDES A RATIOMETRIC UNAMPLIFIED ANALOG MILLIVOLT OUTPUT, WITH A TYPICAL FULL SCALE SPAN (FSS) OUTPUT OF 150 MV (±30 MV). THE SENSOR IS TEMPERATURE COMPENSATED, ENSURING STABLE PERFORMANCE ACROSS AN OPERATING TEMPERATURE RANGE OF -40 TO 85 °C (-40 TO 185 °F). IT REQUIRES A NOMINAL SUPPLY VOLTAGE OF 10 VDC, WITH AN ACCEPTABLE OPERATING RANGE FROM 8 VDC TO 12 VDC. PERFORMANCE SPECIFICATIONS INCLUDE A TYPICAL NON-LINEARITY OF ±0.25% FSS AND A MAXIMUM HYSTERESIS AND REPEATABILITY OF ±0.15% FSS.
