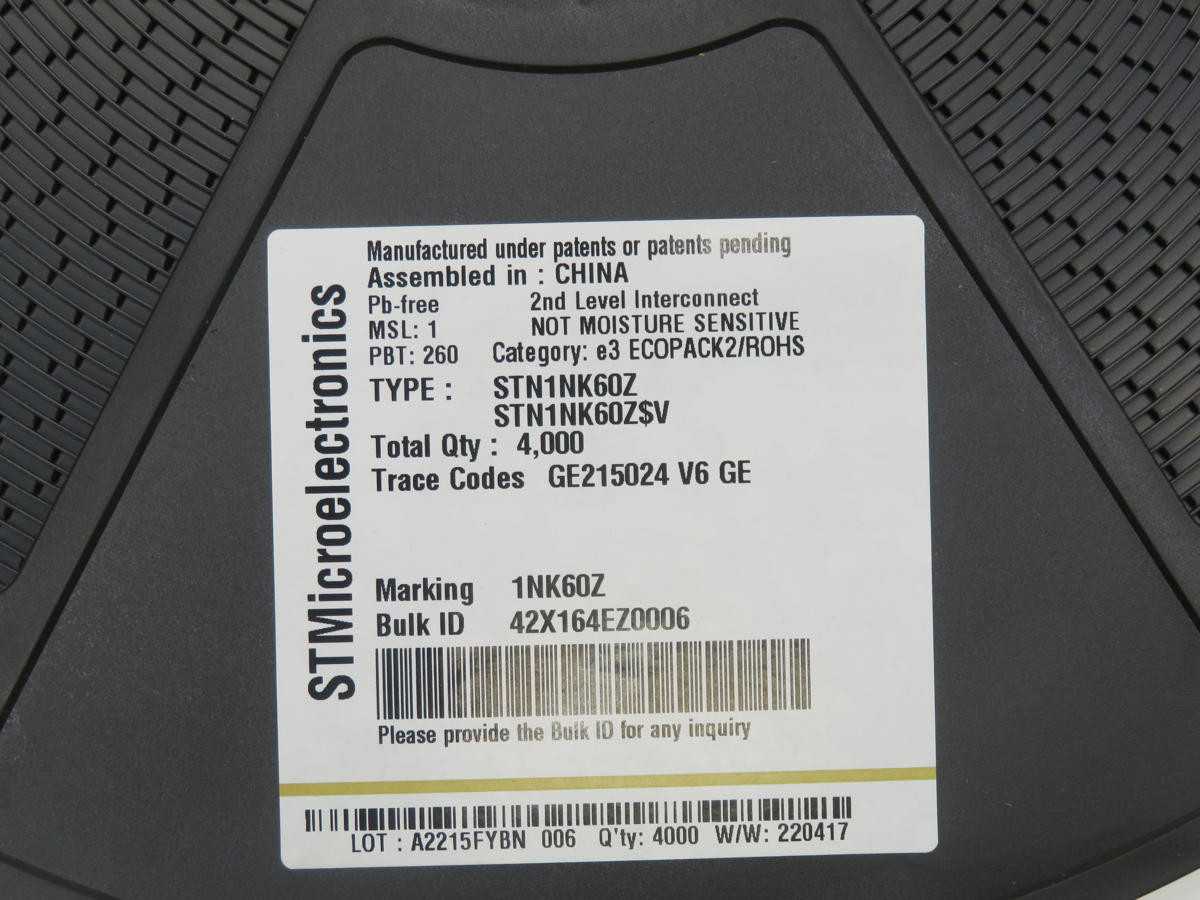

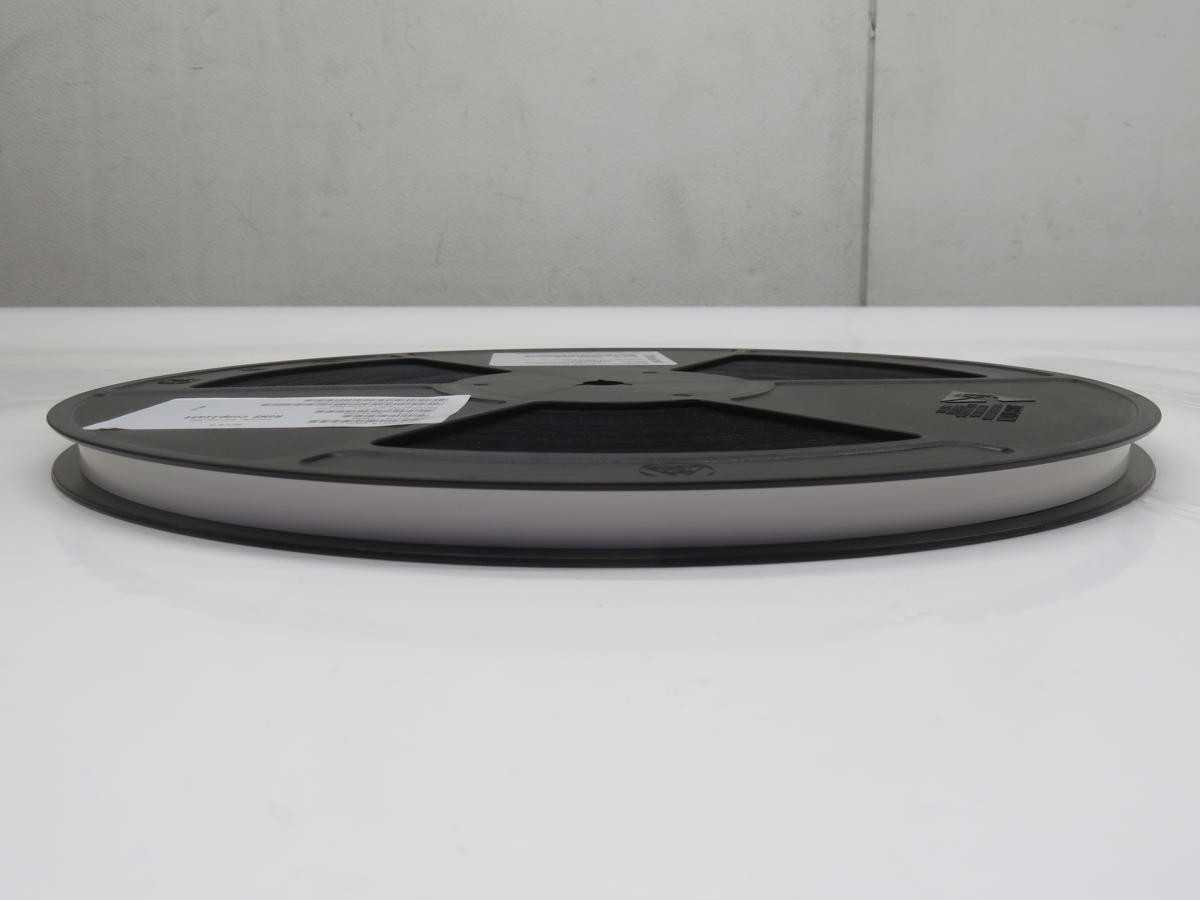

LOT OF 4000 STMICROELECTRONICS STN1NK60Z A2215FYBN MOSFET N-CH 600 VOLT 0.25A ZENER SUPERMESH
Aucto ID: #111969
Ends in:
bcf83ae2-09ec-4910-bd09-52302932e931
Location: El Paso, Texas, United States
Logistics:
Rigging:
Included
Loading:
Included
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller - Since 2026
3106Product Description
THE STMICROELECTRONICS STN1NK60Z IS AN N-CHANNEL ZENER SUPERMESH POWER MOSFET. IT IS ENGINEERED FOR HIGH VOLTAGE APPLICATIONS, FEATURING A DRAIN-SOURCE BREAKDOWN VOLTAGE (VDSS) OF 600V. THE DEVICE MAINTAINS A CONTINUOUS DRAIN CURRENT (ID) RATING OF 0.25A AT A CASE TEMPERATURE OF 25°C. ITS MAXIMUM ON-STATE RESISTANCE (RDS(ON)) IS SPECIFIED AT 13 OHM WHEN MEASURED WITH VGS=10V AND ID=0.12A. THE STN1NK60Z IS SUPPLIED IN A SOT-223 PACKAGE, PROVIDING A TOTAL POWER DISSIPATION (PTOT) OF 1.5 W. KEY ELECTRICAL CHARACTERISTICS INCLUDE A TYPICAL GATE CHARGE (QG) OF 4 NC AND A TYPICAL INPUT CAPACITANCE (CISS) OF 100 PF. THE MAXIMUM GATE-SOURCE VOLTAGE (VGS) RANGE IS ±30V.
Core Specifications
Manufacturer: STMICROELECTRONICS
Model: STN1NK60Z A2215FYBN
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Category:
INDUSTRIAL PARTS > ELECTRICAL COMPONENTS > ELECTRONIC COMPONENTSLogistics
Rigging Responsibility:
Included
Loading Responsibility:
Included
Shipping Responsibility:
Buyer
