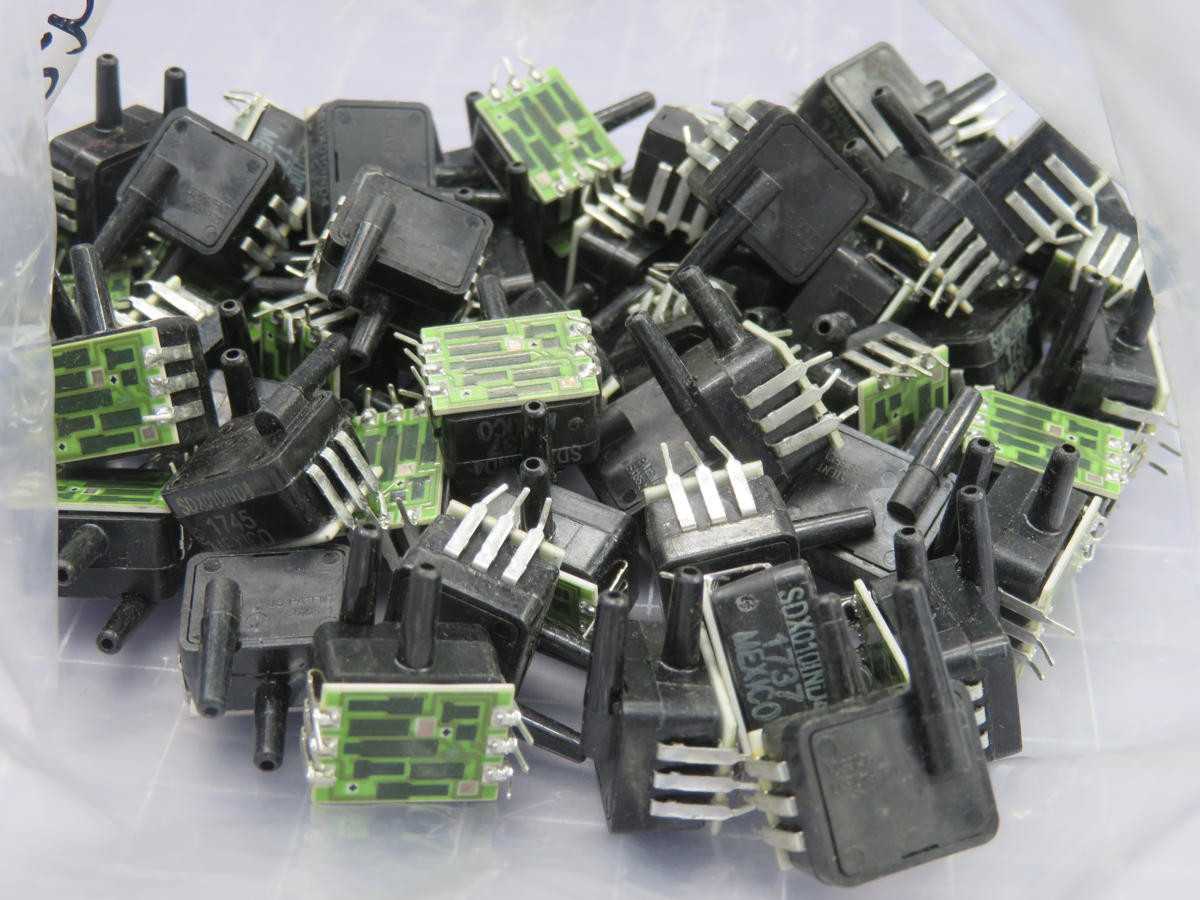

Lot of 50 Honeywell SDX010IND4 Silicon Pressure Sensor

THE HONEYWELL SDX010IND4 IS A SILICON DIFFERENTIAL PRESSURE SENSOR WITH A FULL-SCALE PRESSURE RANGE OF 0 TO 10 INCHES OF WATER (IN H2O). THIS UNCOMPENSATED AND UNAMPLIFIED DEVICE PROVIDES A RATIOMETRIC MILLIVOLT OUTPUT, DESIGNED TO OPERATE FROM A TYPICAL SUPPLY VOLTAGE OF 5 VDC OR 10 VDC. IT EXHIBITS AN ACCURACY OF ±0.25% FULL SCALE SPAN (FSS) FOR NON-LINEARITY AND HYSTERESIS. THE SENSOR MAINTAINS OPERATIONAL INTEGRITY ACROSS AN AMBIENT TEMPERATURE RANGE OF -40°C TO 85°C. FEATURING A RESPONSE TIME OF LESS THAN 1 MILLISECOND, THE SENSOR IS COMPATIBLE WITH DRY AIR AND NON-CORROSIVE GASES. IT IS PACKAGED IN A DUAL IN-LINE PACKAGE (DIP) FOR THROUGH-HOLE MOUNTING APPLICATIONS.
