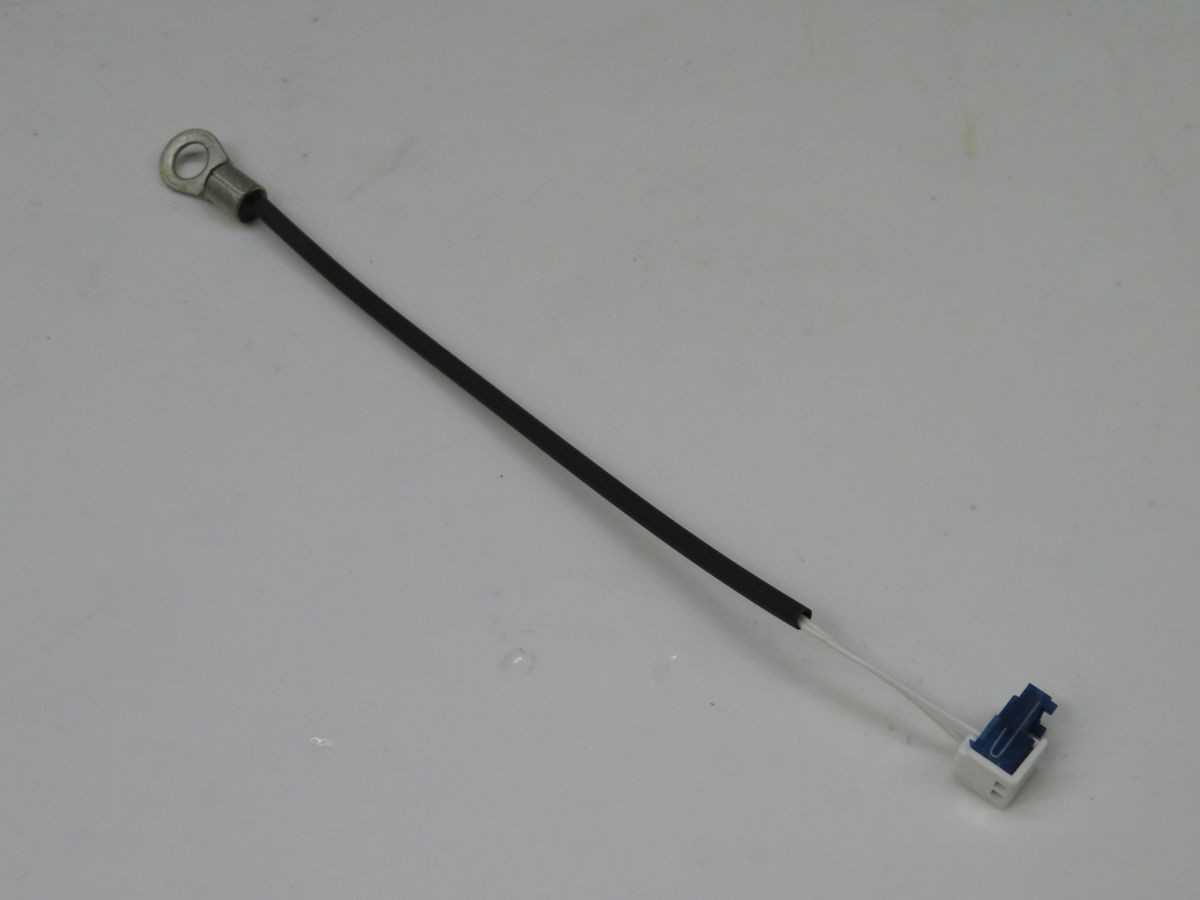

LOT OF 50 MEASUREMENT SPECIALTIES GA10K3D1060 SENSOR

THE MEASUREMENT SPECIALTIES GA10K3D1060 IS AN NTC THERMISTOR DESIGNED FOR PRECISE TEMPERATURE MEASUREMENT AND COMPENSATION. THIS SENSOR FEATURES A NOMINAL RESISTANCE OF 10 KΩ AT 25°C, MAINTAINED WITHIN A TOLERANCE OF ±3%. IT EXHIBITS A B-CONSTANT VALUE OF 3977K, DETERMINED BETWEEN 25°C AND 85°C, WITH A TOLERANCE OF ±1%. THE OPERATIONAL TEMPERATURE RANGE FOR THIS COMPONENT SPANS FROM -40°C TO +125°C. CONSTRUCTED WITH AN EPOXY-COATED BEAD, THE THERMISTOR IS EQUIPPED WITH RADIAL TINNED COPPER CLAD STEEL LEADS. TYPICAL PERFORMANCE METRICS INCLUDE A DISSIPATION CONSTANT OF 2 MW/°C IN STILL AIR AND A THERMAL TIME CONSTANT OF APPROXIMATELY 10 SECONDS, ALSO IN STILL AIR.
