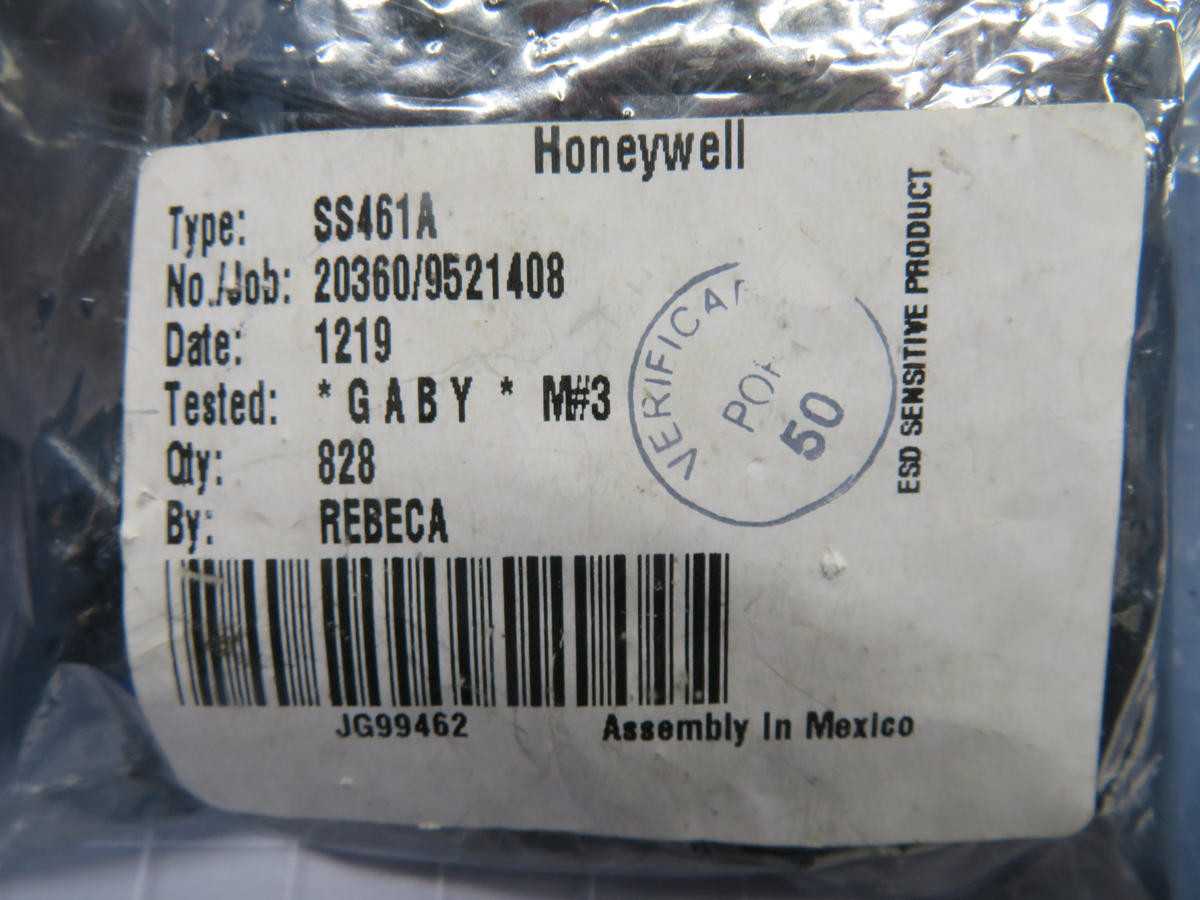

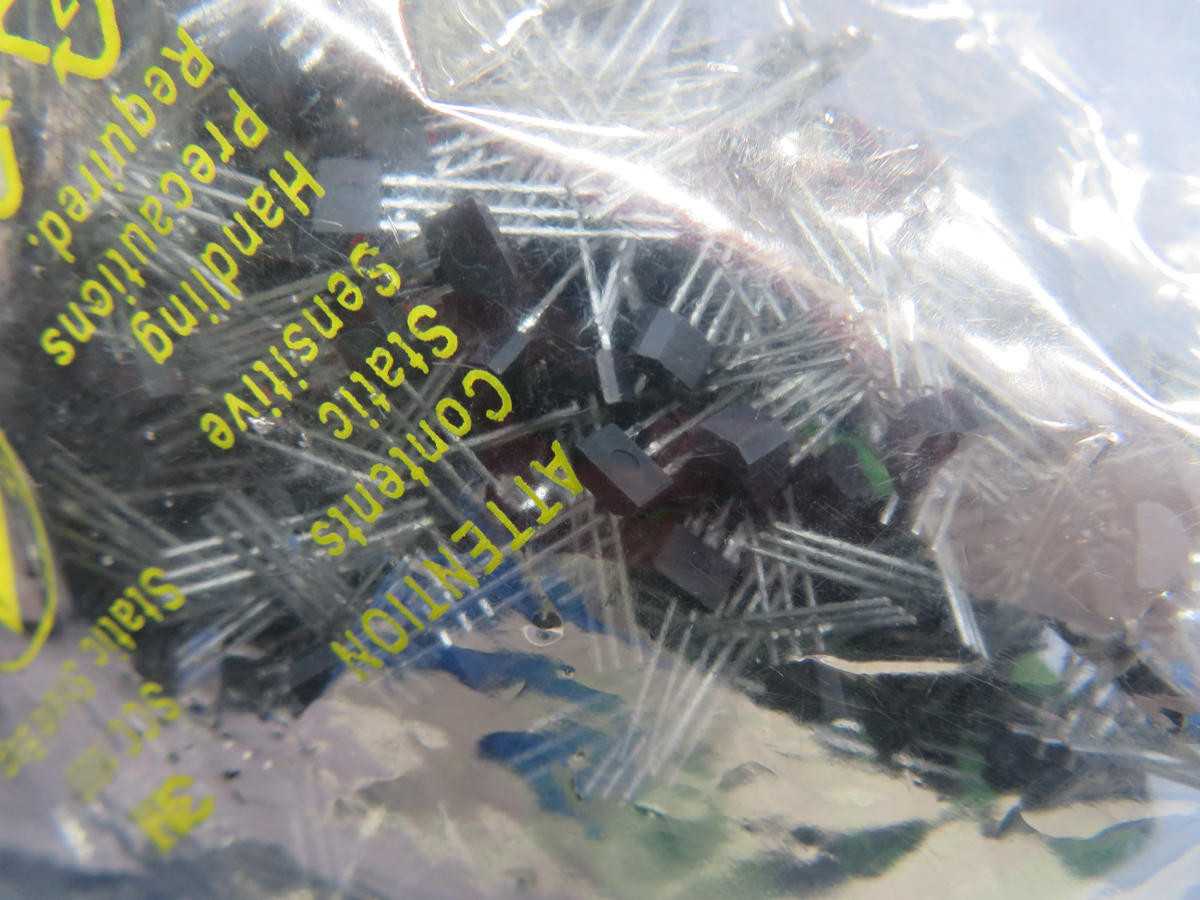

LOT OF 800 HONEYWELL SS461A HALL EFFECT SENSOR

THE HONEYWELL SS461A IS A LATCHING DIGITAL HALL-EFFECT SENSOR DESIGNED FOR MAGNETIC FIELD DETECTION. IT OPERATES FROM A SUPPLY VOLTAGE RANGE OF 3.8 VDC TO 30 VDC. THE SENSOR FEATURES AN OPEN-COLLECTOR OUTPUT CAPABLE OF SINKING A MAXIMUM CURRENT OF 20 MA. IT PROVIDES A LATCHED OUTPUT STATE, ACTIVATING WHEN EXPOSED TO A SOUTH POLE MAGNETIC FIELD GREATER THAN THE OPERATING POINT (BOP) OF 65 GAUSS (TYPICAL) AND DEACTIVATING WHEN EXPOSED TO A NORTH POLE MAGNETIC FIELD LESS THAN THE RELEASE POINT (BRP) OF -65 GAUSS (TYPICAL). THIS DEVICE EXHIBITS A TYPICAL HYSTERESIS OF 130 GAUSS. HOUSED IN A FLAT TO-92-STYLE PACKAGE WITH THREE IN-LINE LEADS, IT IS SPECIFIED FOR AN OPERATING TEMPERATURE RANGE OF -40°C TO 150°C.
