LOT OF 9 HONEYWELL 19C300PG1L SENSOR 300PSIG 0.1V

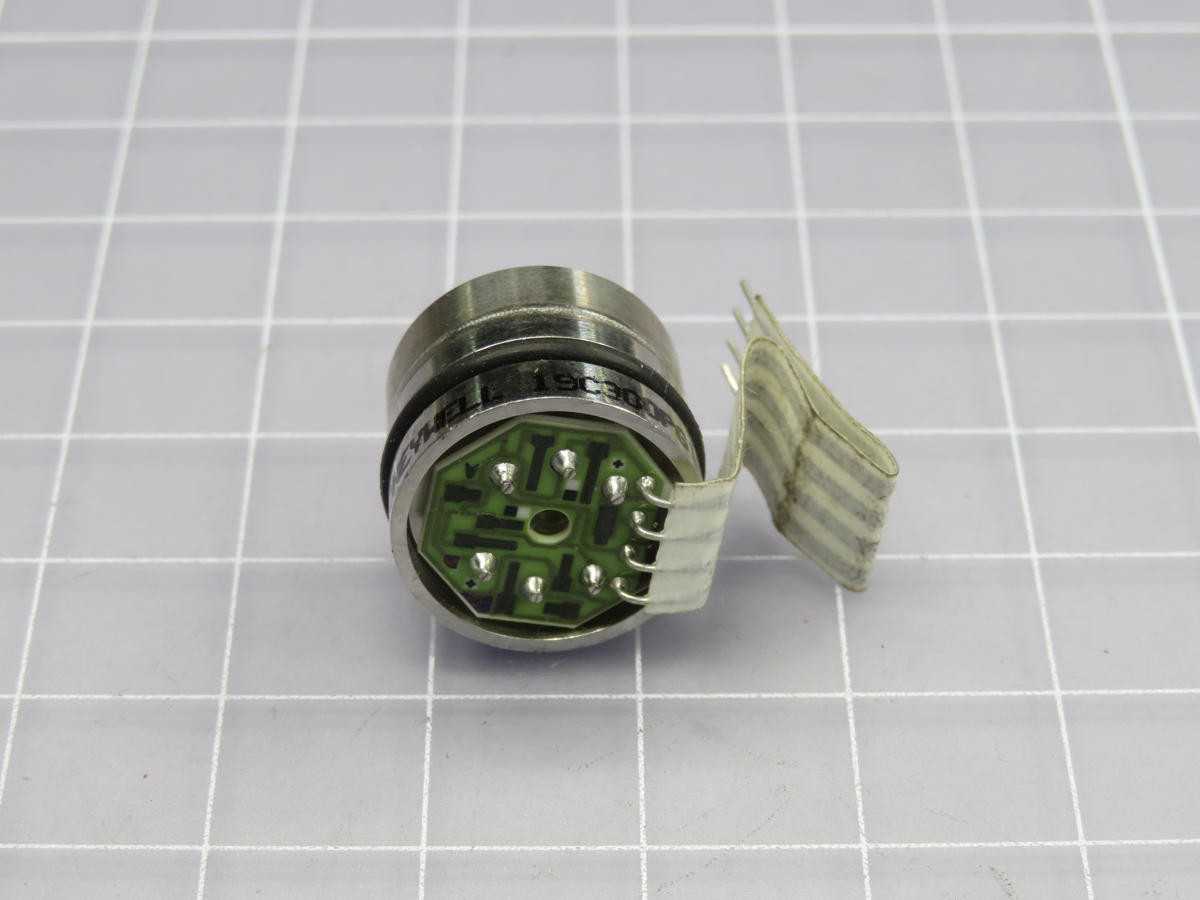

THE HONEYWELL 19C300PG1L IS AN UNCOMPENSATED, UNAMPLIFIED PRESSURE TRANSDUCER CONFIGURED AS A VENTED GAUGE CELL. IT PROVIDES A RATIOMETRIC MILLIVOLT OUTPUT, MEASURING PRESSURE FROM 0 PSI TO 300 PSI (0 KPA TO 2068.43 KPA). WITH A NOMINAL OPERATING SUPPLY VOLTAGE OF 10 VDC, THE SENSOR DELIVERS A FULL-SCALE OUTPUT OF 100 MV. IT FEATURES A TYPICAL COMBINED ERROR BAND ACCURACY OF ±0.50 %FSO. THE DEVICE OPERATES ACROSS A TEMPERATURE RANGE OF -40 °C TO 125 °C AND IS COMPENSATED FOR TEMPERATURES BETWEEN 0 °C AND 50 °C. CONSTRUCTED IN A CYLINDRICAL FORM FACTOR, IT INCORPORATES A BODY O-RING FOR SEALING AND HAS A RESPONSE TIME OF 1 MS.
