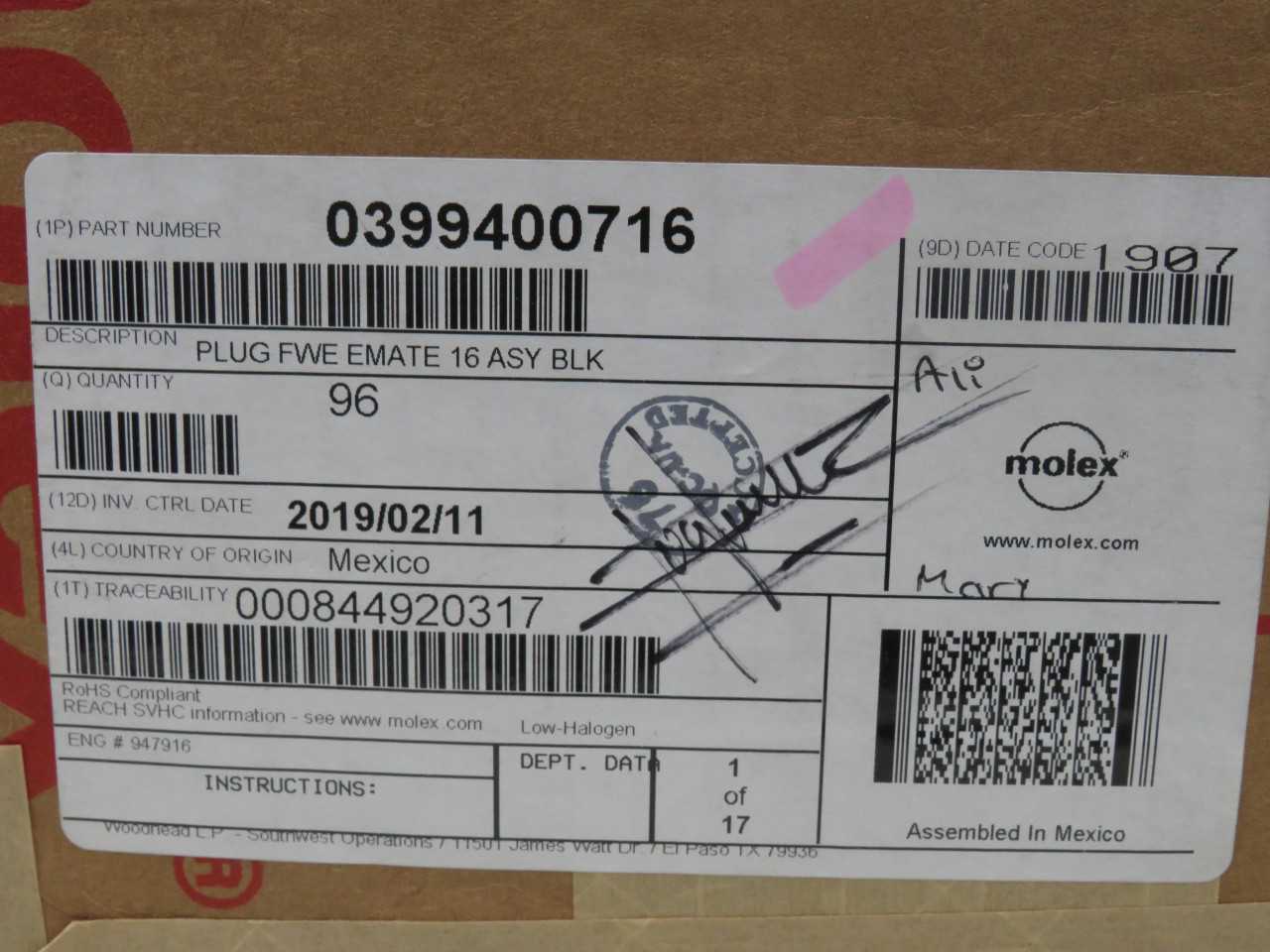

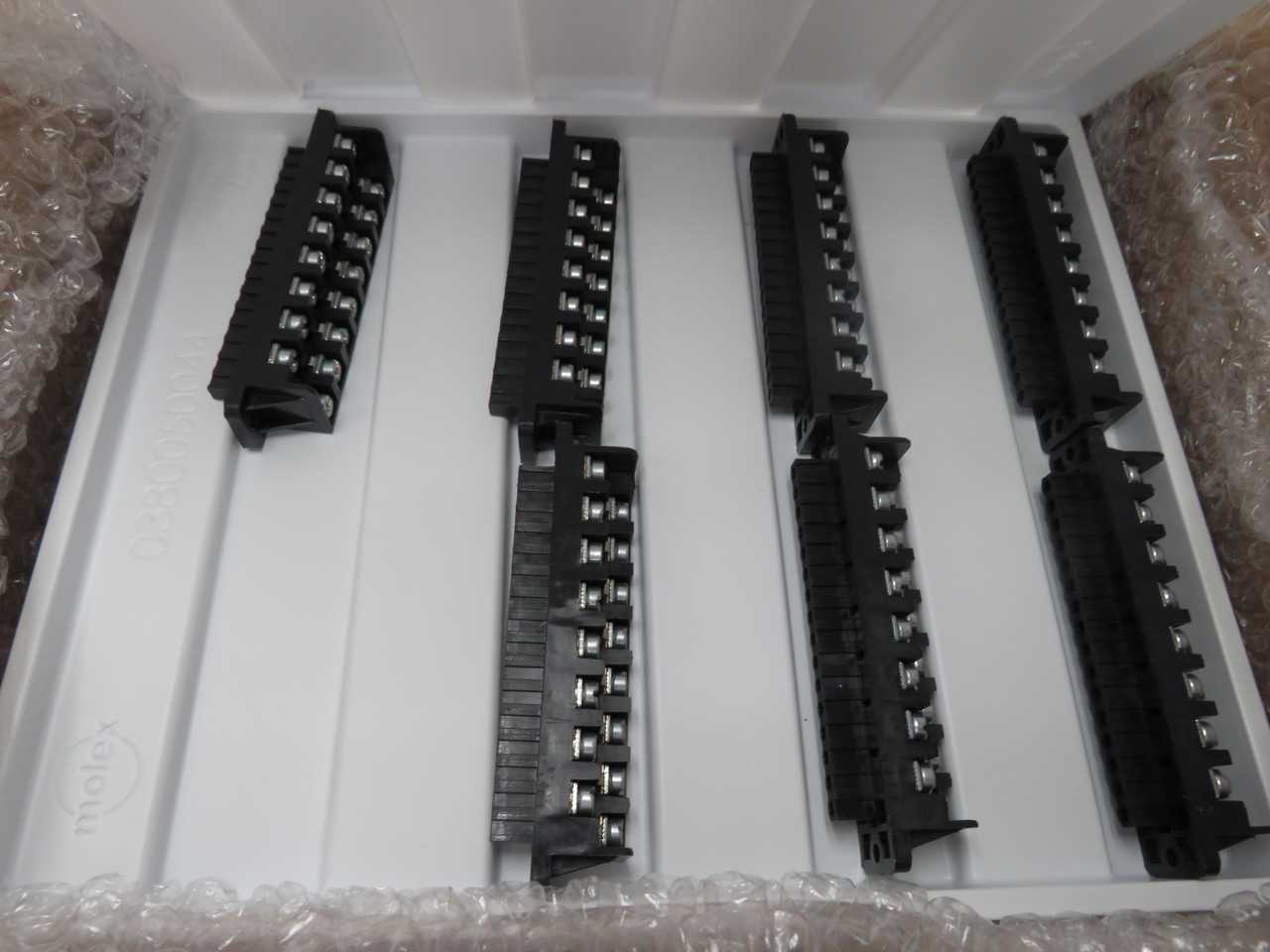

LOT OF 90 MOLEX 0399400716 TERM BLOCK PLUG 16POS 5.08MM

THE MOLEX 0399400716 IS A 16-POSITION EUROSTYLE PLUGGABLE TERMINAL BLOCK WITH A 5.08MM PITCH. THIS FRONT WIRE ENTRY PLUG IS RATED FOR A MAXIMUM CURRENT OF 15.0A AND A MAXIMUM VOLTAGE OF 300V. IT ACCOMMODATES WIRE GAUGES FROM 12 TO 28 AWG (0.08 TO 2.50 MM²) VIA SCREW TERMINATION. THE COMPONENT FEATURES A POLYAMIDE 6/6 HOUSING AND TIN-PLATED BRASS CONTACTS, SUPPORTING OPERATION ACROSS A TEMPERATURE RANGE OF -40°C TO +105°C. IT IS DESIGNED FOR WIRE-TO-BOARD AND WIRE-TO-WIRE CONNECTION APPLICATIONS.
