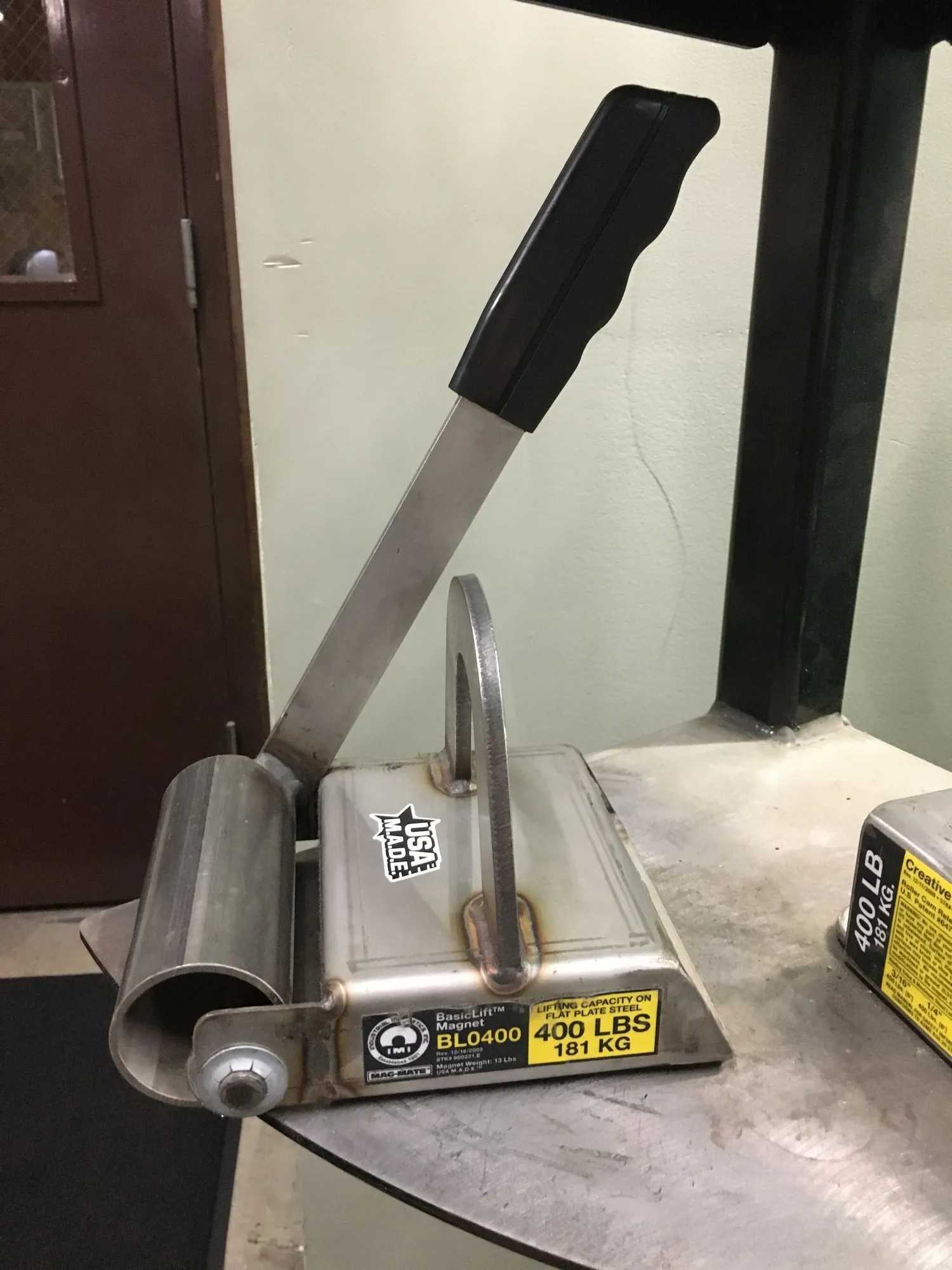

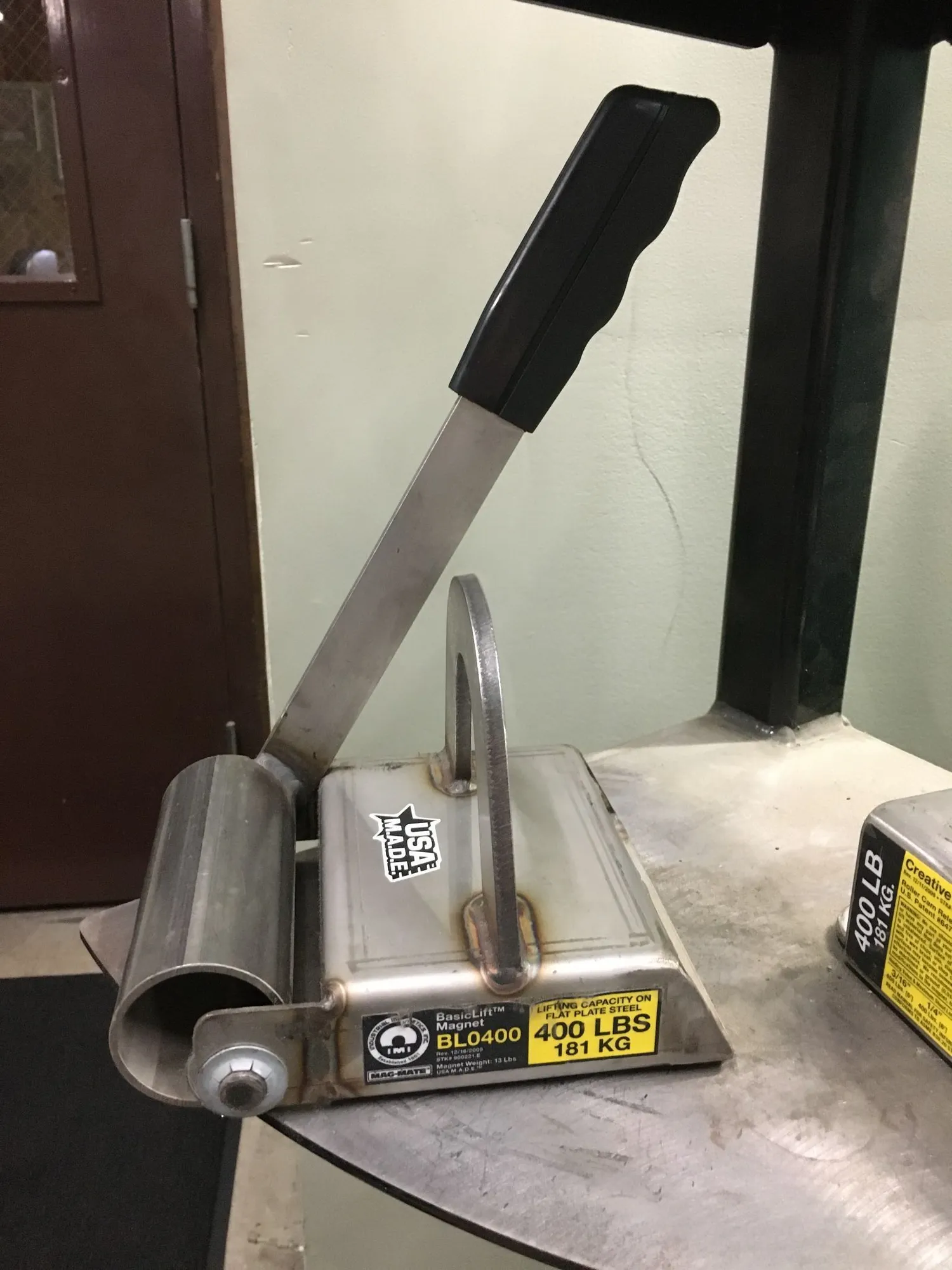

Mag-Mate BL0400 Permanent Ceramic Lift Magnet, 400 lbs Flat Capacity

The Mag-Mate Basiclift BL0400 is a permanent ceramic lifting magnet designed for basic material handling applications, including flat steel plate, angle iron, and square tube. It features a maximum rated flat capacity of 400 lbs with a 2:1 design factor for safety margin. The minimum material thickness required for magnet activation is 3/16 inches, which provides a maximum rated capacity of 375 lbs at that thickness, while a full 3-inch material thickness is required to achieve the maximum rated capacity of 400 lbs. Constructed with a lightweight and durable stainless steel casing, the unit utilizes a full-width roller cam mechanism for manual on/off control and secure load detachment. It includes a tall lift lug measuring 2-3/4 inches in both bail opening height and width, making it compatible with standard crane hooks and hoists. The magnet's physical dimensions include an overall height of 5-1/2 inches, an overall length of 7-1/2 inches, an overall width of 6-1/2 inches, and a 12-inch handle length. The internal ceramic magnet block measures 1-5/8 inches high, 4-1/2 inches wide, and 3-3/8 inches long. The unit weighs approximately 11 lbs and is engineered to withstand working environments with a maximum heat-resistant temperature of 300°F (148°C).
