Mazak Quick Turn Nexus 200-II CNC Turning Center For Precision Machining

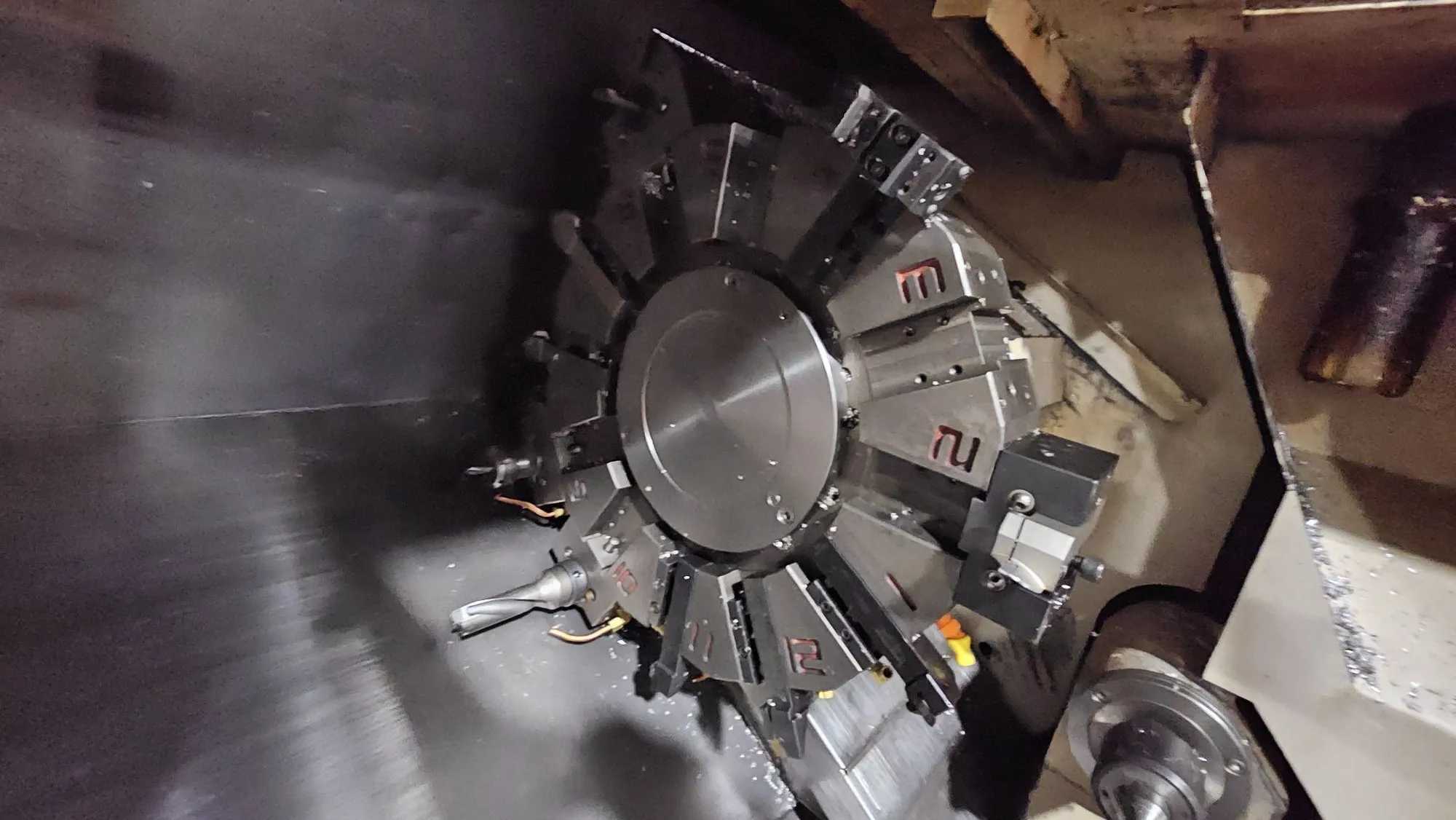

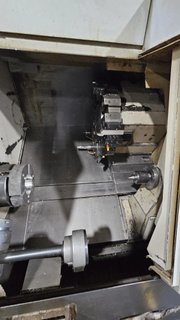

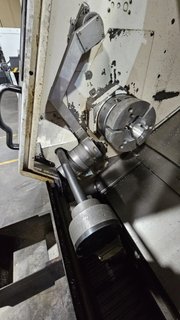

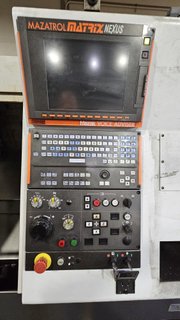

The 2007 Mazak Quick Turn Nexus 200-II is a 2-axis CNC turning center equipped with a Mazatrol Matrix Nexus control system and 12,200 cut hours. Designed for precision machining, it features a maximum turning diameter of 13.78 inches (350 mm), a maximum turning length of 20.16 inches (512 mm), and a swing over bed of 24.02 inches (610 mm). The machine accommodates a bar capacity of 2.56 inches (66 mm) and is powered by a 35 HP spindle capable of reaching speeds up to 5,000 RPM. Tooling is supported by a 12-station drum turret. Axis travels include an X-axis travel of 7.50 inches (191 mm) and a Z-axis travel of 21.125 inches (537 mm), with rapid traverse rates of 1,181 IPM on the X-axis and 1,299 IPM on the Z-axis. Electrical requirements are 40.3 kVA, 220/480V, 3-phase power at 60Hz. The unit has physical dimensions of 137 x 80 x 80 inches and weighs 12,500 lbs.
