Medgraphics Elite Dx, Medical Equipment, Whole-Body Plethysmograph, 120 VAC 1 Phase Power

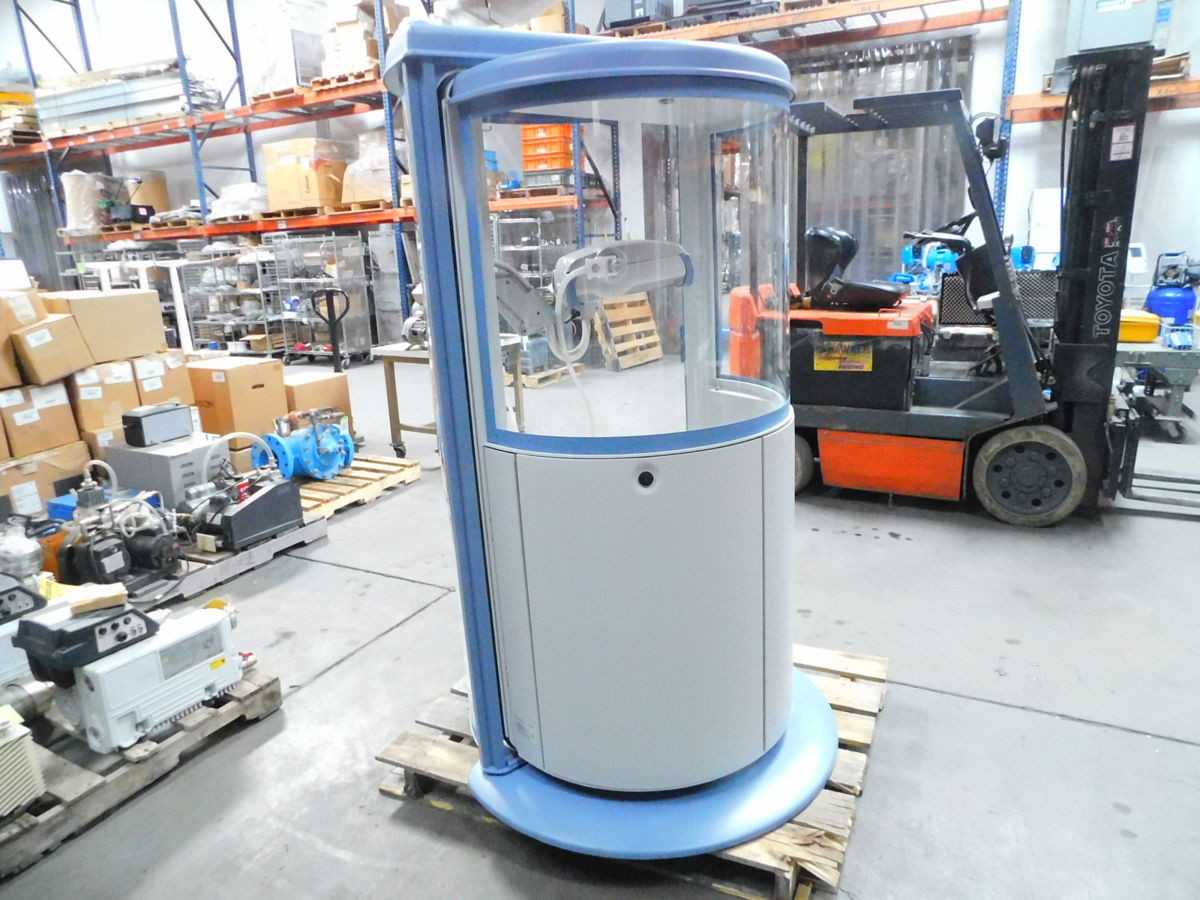

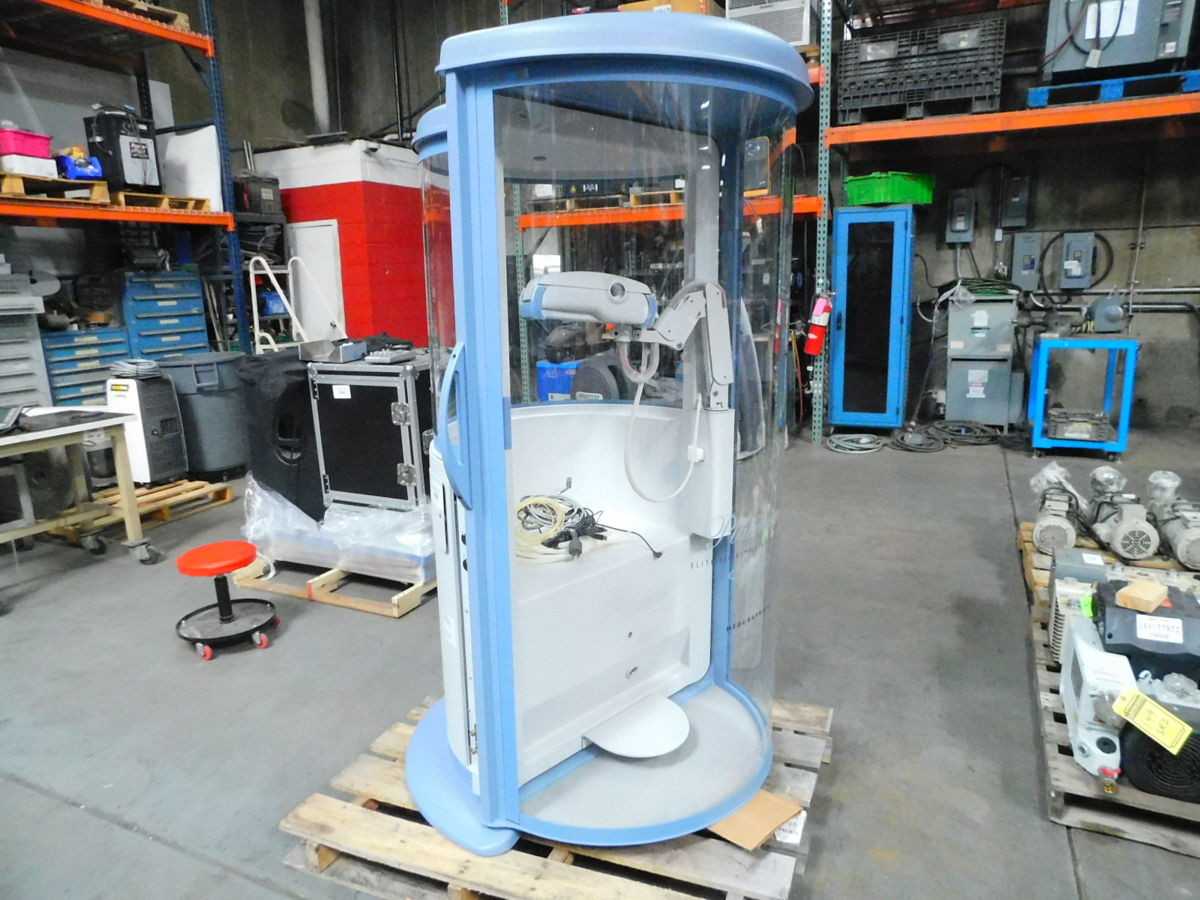

The Medgraphics Elite Dx Platinum Elite series plethysmograph (M7358) is a whole-body plethysmograph designed for comprehensive pulmonary function testing. This system measures static and dynamic lung volumes, including functional residual capacity (FRC), residual volume (RV), and total lung capacity (TLC). It also assesses airway resistance (RAW) and specific airway conductance (SGAW). The unit operates on a power input of 120 VAC, 1 phase. It integrates with the BreezeSuite software platform for data acquisition, analysis, and reporting, ensuring compliance with ATS/ERS guidelines for accuracy and performance in lung mechanics measurements.
