NORD 205E-750-340-A GEAR MOTORS, 0.75 KW POWER, 380-480V VOLTAGE, 50/60HZ FREQ, 4 POLES, IP66

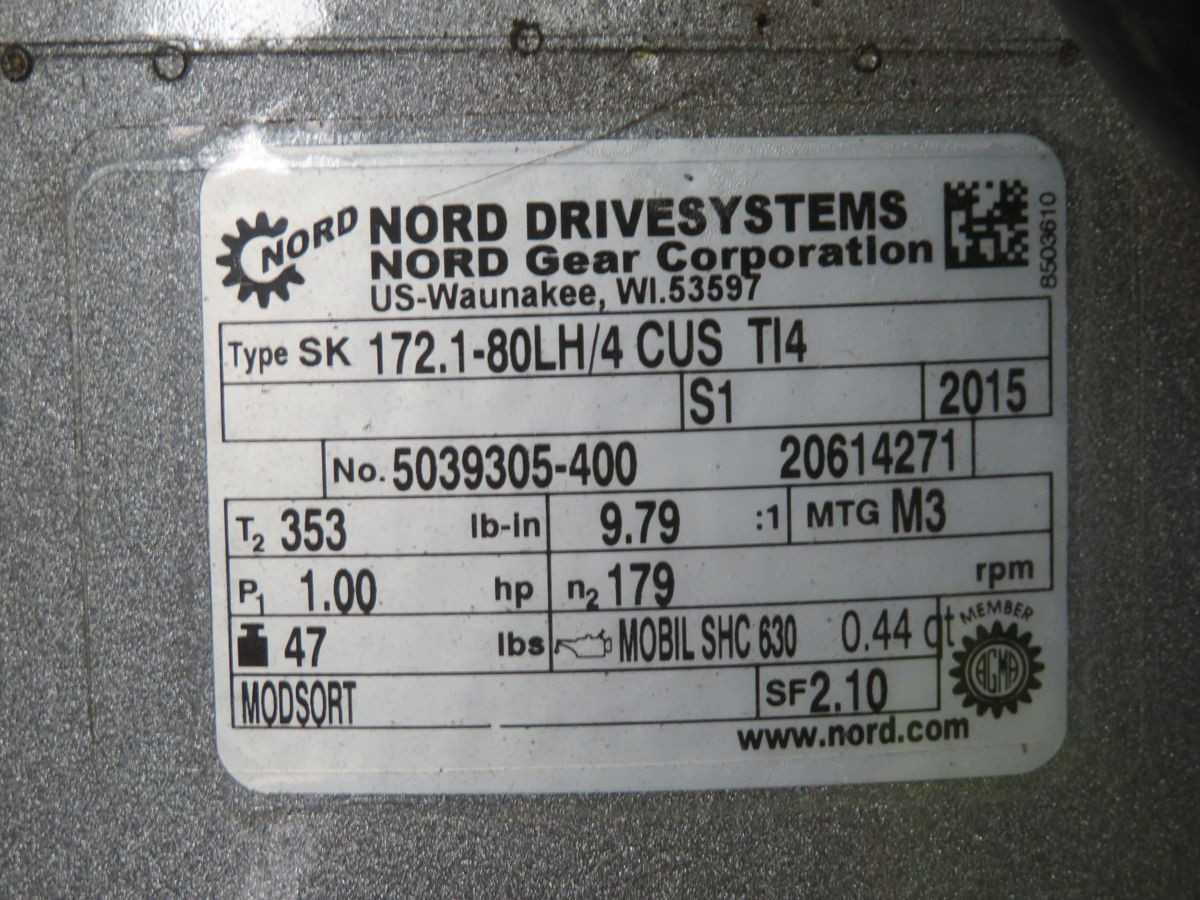

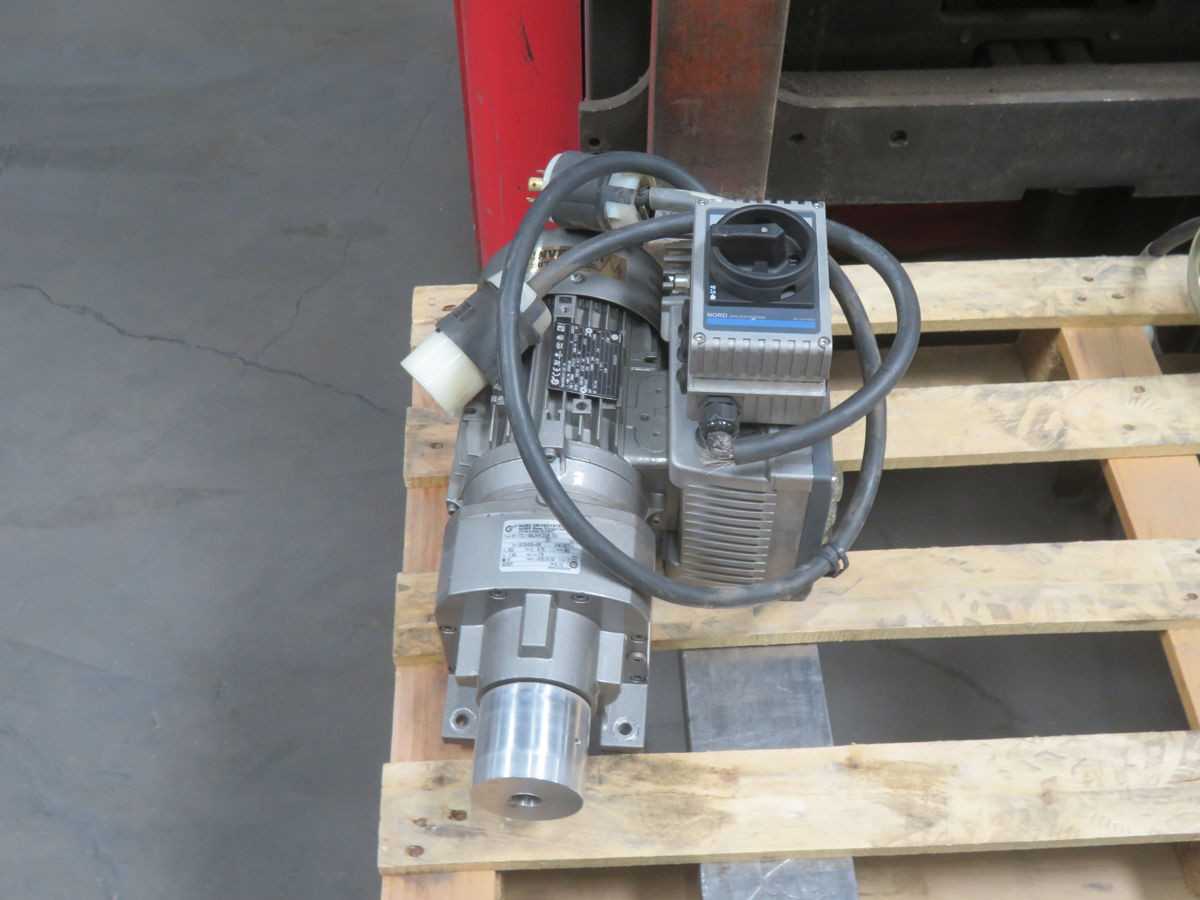

THE NORD SK 205E-750-340-A SK 172.1-80LH/4 CUS TI4 GEARMOTOR ASSEMBLY IS A DECENTRALIZED DRIVE SOLUTION INTEGRATING A NORDAC FLEX FREQUENCY INVERTER, A NORDBLOC.1 HELICAL INLINE GEARBOX, AND A HIGH-EFFICIENCY 4-POLE MOTOR. THE NORDAC FLEX SK 205E INVERTER HAS A RATED POWER OUTPUT OF 0.75 KW, OPERATING WITH A THREE-PHASE SUPPLY VOLTAGE TYPICALLY RANGING FROM 380V TO 480V AT 50/60 HZ. THIS CONFIGURATION INCORPORATES A 4-POLE MOTOR, DELIVERING PRECISE SPEED CONTROL SUITABLE FOR HIGH-SPEED LOGISTICS AND AUTOMATED SORTING SYSTEMS. THE NORDBLOC.1 SK 172.1 SERIES HELICAL INLINE GEARBOX OPTIMIZES POWER TRANSMISSION FROM THE MOTOR. THE SYSTEM DESIGN ELIMINATES THE REQUIREMENT FOR A CENTRAL CONTROL CABINET, PROVIDING A DIRECT "BOLT-ON" INSTALLATION SOLUTION. THE NORDAC FLEX INVERTER TYPICALLY FEATURES AN IP66 INGRESS PROTECTION RATING, ENSURING ROBUST PERFORMANCE IN INDUSTRIAL ENVIRONMENTS.
