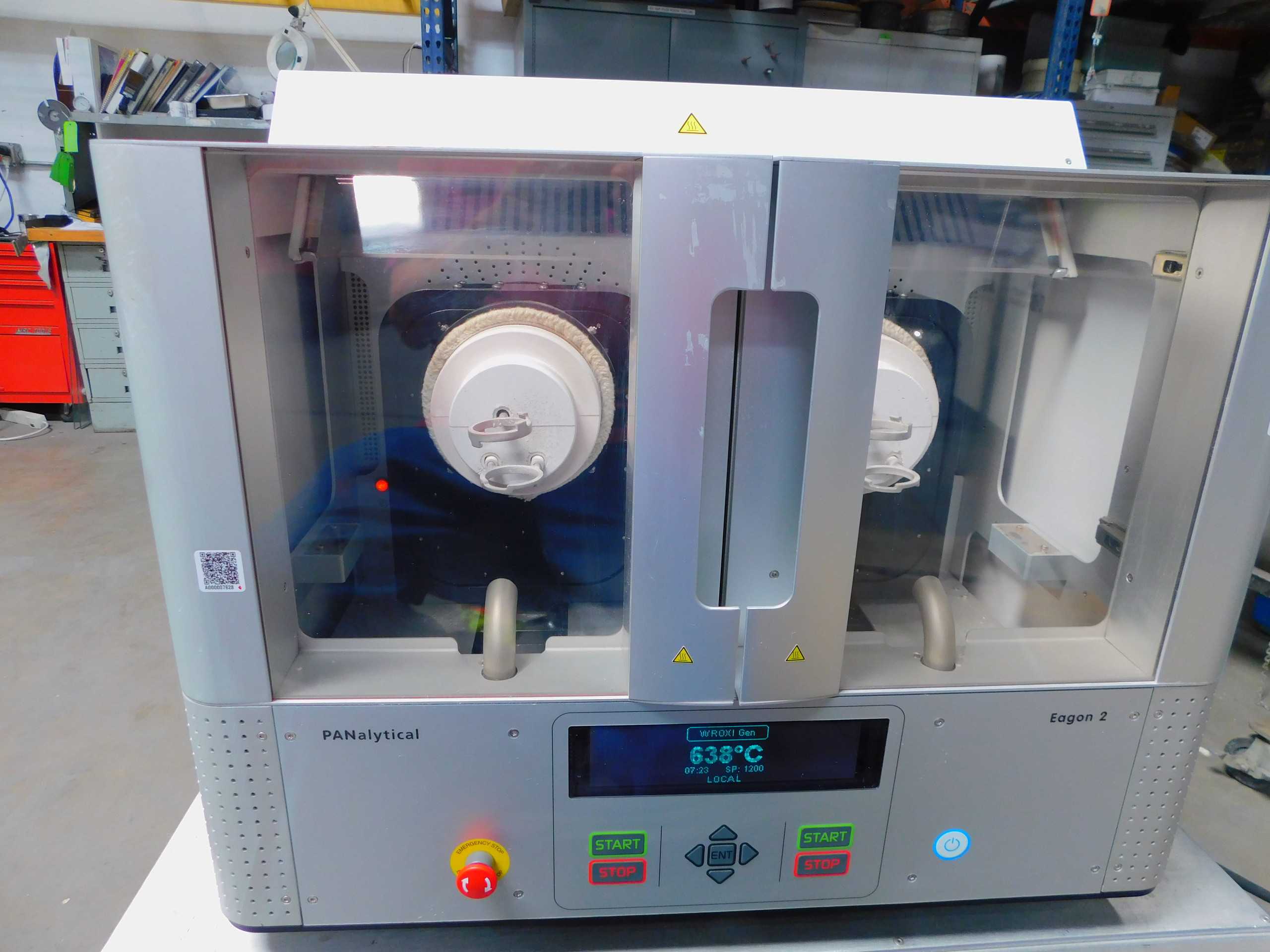

Panalytical Eagon 2 Automated Fusion Bead Sample Preparation System

EXCELLENT PHYSICAL AND WORKING CONDITION. JUST MISSING MELTING CRUCIBLES AND MOLDS. ALUMINUM TABLE IS INCLUDED BUT OPTIONAL. A FULLY AUTOMATIC, ELECTRIC FUSION INSTRUMENT DESIGNED TO PREPARE HIGH-QUALITY GLASS DISKS (FUSION BEADS) FOR X-RAY FLUORESCENCE (XRF) ANALYSIS. IT FEATURES A DUAL-POSITION FURNACE THAT ALLOWS LABORATORY OPERATORS TO PROCESS TWO SAMPLES EITHER SIMULTANEOUSLY OR INDEPENDENTLY. KEY SPECIFICATIONS & PERFORMANCE: THROUGHPUT: UP TO 8 GLASS DISKS PER HOUR HEATING MODE: ELECTRICITY-POWERED MUFFLE FURNACE TECHNOLOGY (NO GAS REQUIRED) TEMPERATURE RANGE: 300°C TO 1200°C CAPACITY: 2 INDEPENDENT FUSION POSITIONS (SYNCHRONOUS OR ASYNCHRONOUS OPERATION) ELECTRICAL NEEDS: 220V / 32A / 50–60 HZ, SINGLE PHASE HOW THE FUSION PROCESS WORKS: LOADING: THE OPERATOR PLACES A PLATINUM/GOLD CRUCIBLE CONTAINING THE SAMPLE-FLUX MIXTURE INTO THE HOLDER, WITH A CASTING MOLD SET BELOW IT EXECUTION: THE USER SELECTS A RECIPE FROM THE PRE-DEFINED METHOD LIBRARY AND HITS START AGITATION: THE INTERNAL MECHANISM RAMPS UP THE HEAT, MELTING AND MIXING THE SAMPLE WITH AUTOMATED CRUCIBLE AGITATION; RELEASING AGENTS ARE AUTOMATICALLY INJECTED DURING THE MELT PHASE POURING & COOLING: THE MOLTEN LIQUID POURS INTO THE CASTING DISH INSIDE THE PROTECTED CHAMBER, WHERE A MULTI-SPEED INTEGRATED FAN QUENCHES THE SAMPLE, FORMING A FLAT GLASS BEAD READY FOR XRF CORE BENEFITS: HIGH OPERATOR SAFETY: FEATURES A "COLD-TO-COLD" CYCLE WITH SAFETY-INTERLOCKED DOORS, COMPLETELY ISOLATING USERS FROM MOVING PARTS, CRUCIBLES, AND HOT SURFACES SPILL PROTECTION: BUILT-IN CASTING DISH SENSORS DETECT A MISSING MOLD AND STOP THE POUR CYCLE TO PREVENT INSTRUMENT DAMAGE CONTAMINATION CONTROL: MOLD AND CRUCIBLE HOLDERS ARE MADE FROM PREMIUM CERAMIC, MINIMIZING CROSS-CONTAMINATION DURING HIGH-HEAT CYCLES PLUG-AND-PLAY INFRASTRUCTURE: LOWERS OVERHEAD BY ELIMINATING THE NEED FOR COOLING WATER, EXTERNAL COMPRESSED AIR LINES, OR VOLATILE GAS SUPPLIES | POWER: 240 VAC
