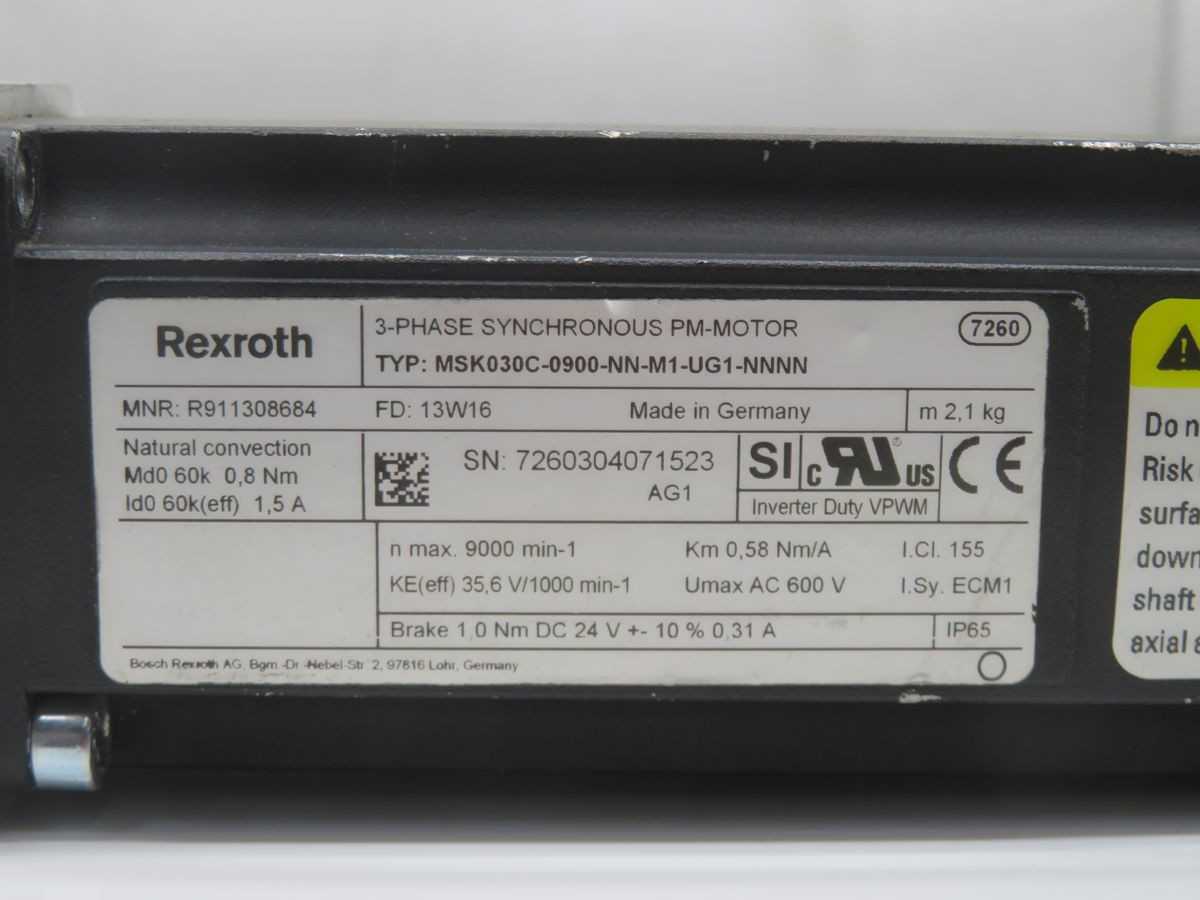

REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 SERVO MOTOR, 0.6KW POWER, 0.9NM TORQ

THE REXROTH MSK030C-0900-NN-M1-UG1-NNNN IS A 3-PHASE SYNCHRONOUS SERVO MOTOR WITH A NOMINAL POWER OUTPUT OF 0.6 KW, OPERATING AT 600 VAC WITH A NOMINAL CURRENT OF 1.5 AMPS. IT DELIVERS A NOMINAL TORQUE OF 0.9 NM AND A PEAK TORQUE OF 3.6 NM, ACHIEVING A MAXIMUM SPEED OF 9000 RPM. THE MOTOR UTILIZES NATURAL CONVECTION FOR COOLING AND FEATURES A MULTI-TURN HIPERFACE ENCODER, PROVIDING 128 SIGNAL PERIODS AND 4096 REVOLUTIONS OF ABSOLUTE POSITIONING. IT IS EQUIPPED WITH A PLAIN SHAFT INCLUDING A SHAFT SEALING RING AND OFFERS IP65 INGRESS PROTECTION. THE MOTOR HAS A MOMENT OF INERTIA OF 0.16 X 10^-4 KGM^2 AND WEIGHS 1.1 KG.
