SANDVIK COROMANT 570-SDXCL-32-11 COROTURN 107 HEAD FOR TURNING

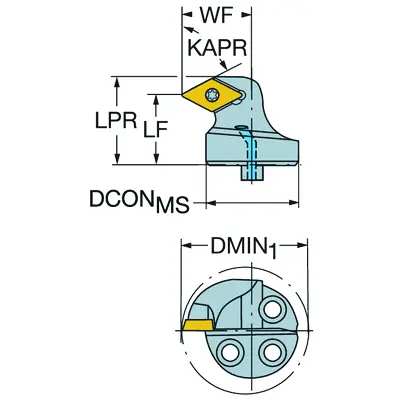

THE SANDVIK COROMANT 570-SDXCL-32-11 COROTURN 107 HEAD IS A RIGHT-HANDED TURNING TOOL COMPONENT DESIGNED FOR PRECISE TURNING TASKS. ITS TECHNICAL SPECIFICATIONS INCLUDE A TOOL CUTTING EDGE ANGLE (KAPR) OF 62.5° AND A LEAD ANGLE (PSIR) OF 27.5°. THE COMPONENT SUPPORTS A MAXIMUM RAMPING ANGLE (RMPX) OF 60° AND CAN BE USED FOR A MINIMUM BORE DIAMETER (DMIN) OF 1.5748 INCH. THE CONNECTION DIAMETER MACHINE SIDE (DCONMS) IS 1.2598 INCH. KEY DIMENSIONS ARE: MAXIMUM OVERHANG (OHX) OF 0.7874 INCH, PROTRUDING LENGTH (LPR) OF 1.1024 INCH, FUNCTIONAL LENGTH (LF) OF 0.7874 INCH, FUNCTIONAL WIDTH (WF) OF 0.8661 INCH, AND AN OVERALL LENGTH (OAL) OF 1.252 INCH.
