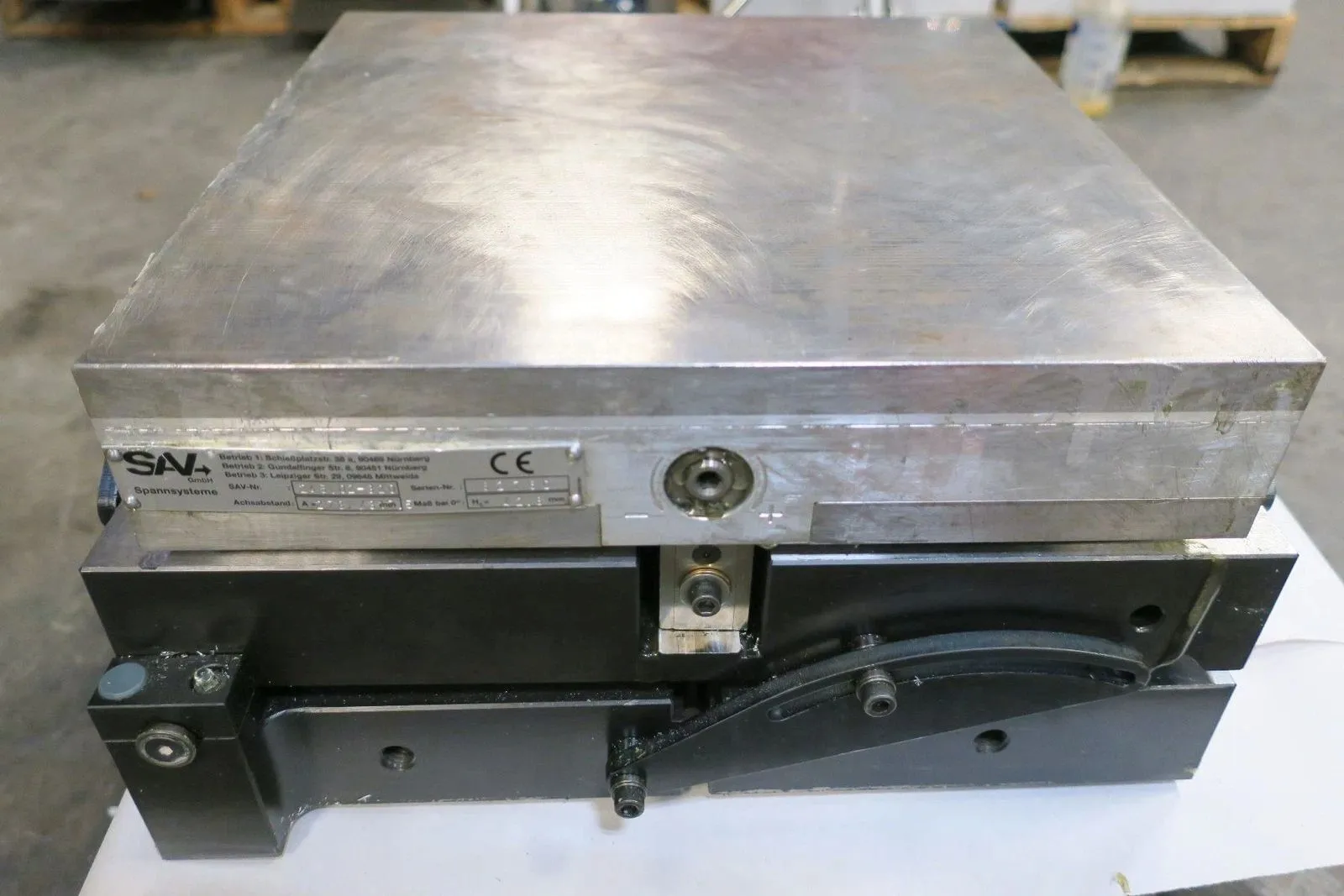

SAV 245.02-320 PRECISION MAGNETIC SINE TABLE (320MM X 320MM)

THE SAV 245.02-320 PRECISION MAGNETIC SINE TABLE MEASURES 320MM X 320MM AND FEATURES SWIVEL CAPABILITY ABOUT BOTH THE LONGITUDINAL AND TRANSVERSE AXES. ITS BASE PLATE IS CONSTRUCTED FROM HARDENED STEEL (HRC 60), IS BLACK-FINISHED, AND PRECISION GROUND. KEY TECHNICAL SPECIFICATIONS INCLUDE AN ANGLE PRECISION OF ± 5 SECONDS, PLANAR PARALLELISM OF ± 0.005 / 100 MM, AND A SHIMMING MEASURE AT 0° OF 3 MM. THE ANGLE RANGE FOR THE LONGITUDINAL AXIS IS 0° TO 45°, AND FOR THE TRANSVERSAL AXIS, IT IS 0° TO 30°. THE TABLE PROVIDES A NOMINAL HOLDING FORCE OF 80 N/CM2, A POLE PITCH OF 1.9 MM, AND A MAGNETIC FIELD HEIGHT OF 6 MM. THE POLE PLATE WEARING LIMIT IS 8 MM. THIS EQUIPMENT SUPPORTS PROCESSING TYPES SUCH AS FLAT GRINDING, CIRCULAR GRINDING, MILLING, TURNING, DRILLING, SINK EROSION, WIRE EROSION, MEASUREMENT, AND AUTOMATION.
