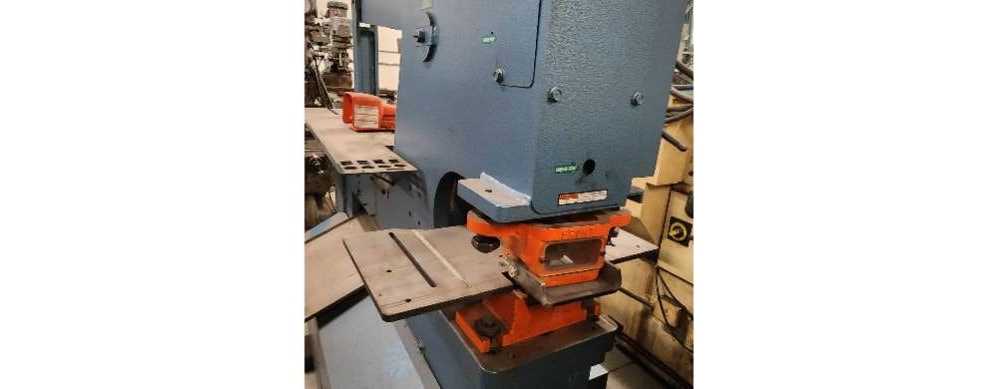

SCOTCHMAN 9012-24M IRONWORKER

Features Single Operator, 4 Stations 90 Ton punch station Keyed punch ram for safety Punch gauging table with fence and scale Die holder complete with 2" die insert Punch nut with wrench & stripper One round punch & die: max. diameter 1-1/4" Jog control Adjustable electric stroke control with scale Electric remote foot pedal Angle shear Flat bar shear with 4-way reversible blade Shear table with miter fence Tool table work area Slug receptacle Two-stage hydraulic pump Electrical box supplied with emergency palm button and lock-out tag-out accommodations All guards necessary to comply with ANSI B11.5 safety standards Specifications Punching Capacity: 90 ton 1-1/8" in 1" Special Tooling: 4" Max. Dia. Throat Depth: 12" Flat Bar Shear: 24" Length 1" x 8" 3/4" x 12" 1/2" x 16" 1/4" x 24" Saber Blade (optional): 1/2" x 22" 3/8" x 24" Angle Shear 90 degree: 6” x 6” x 1/2" Angle Shear 45 degree w/Tool: 3" x 3" x 3/8" Angle Shear 45 degree w/Bar Shear: 4" x 4" x 1/2" Brake 12": 50 ton Brake 24": 40 ton Open End Brake: Max. 1/4" x 5" [Flat or Angle Iron] Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2" Rectangle Notcher: 2" x 2-1/2" x 3/8" 90 degree V-Notcher: 6" x 6" x 5/16" Channel Shear: 2" to 6" adj. Unistrut Shear: Samples Required Rod Shear Round (max.): 9 Cavity - 1/4" to 1-1/4" Rod Shear Square (max.): 1 Cavity - 1/4" to 1" Square Tube Shear: 1/2" to 2" 12 gauge Picket Tool: 1/2", 3/4" & 1" 16 gauge Weld Coupon Bender (max.): 2" wide x 3/8" Offset Die Holder: Max. 40 ton Strokes per Minute in Light Material: 45 spm [Punch Station] Strokes per Minute in Heavy Material: 24 spm [Punch Station] Hydraulics: 2,600 psi Motor: 5 hp, 230 Volt, Three Phase
