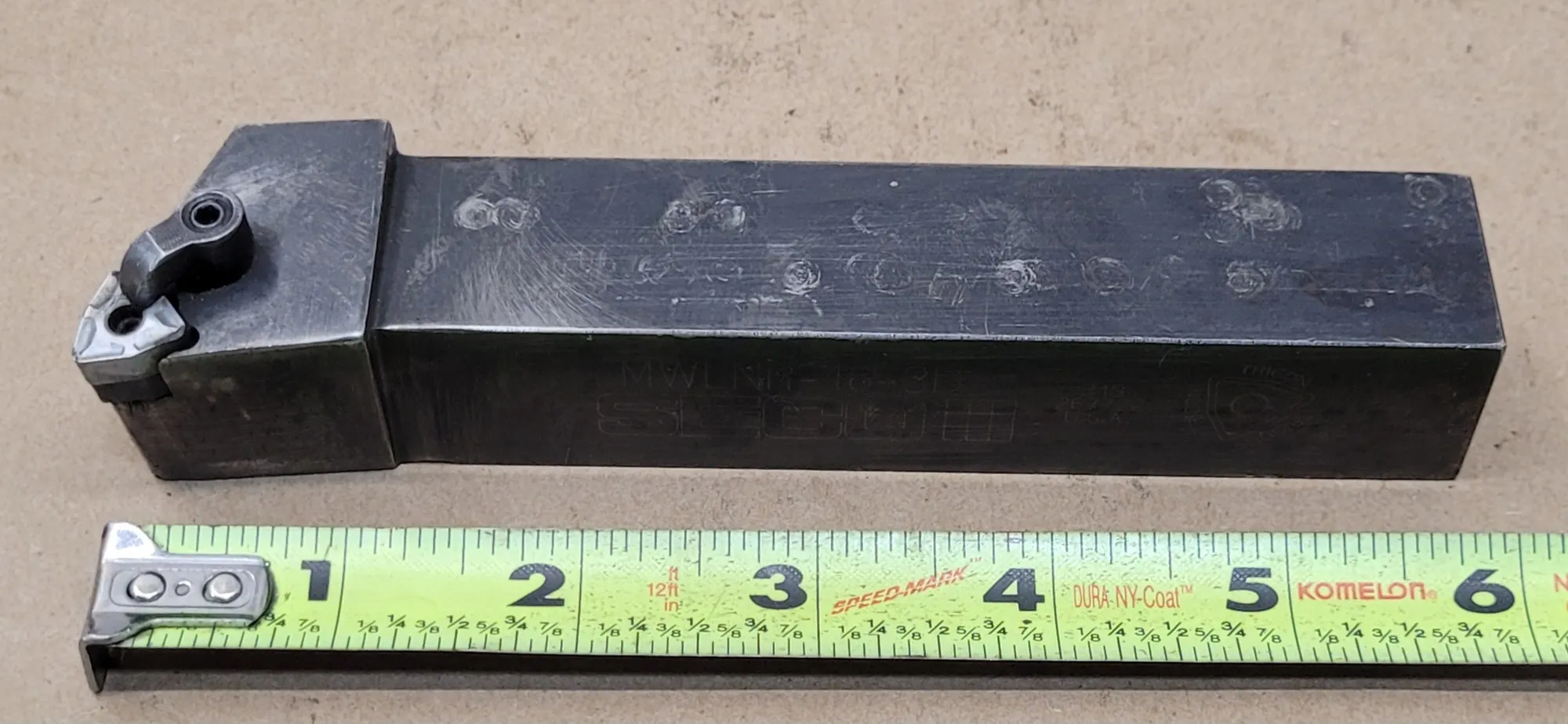

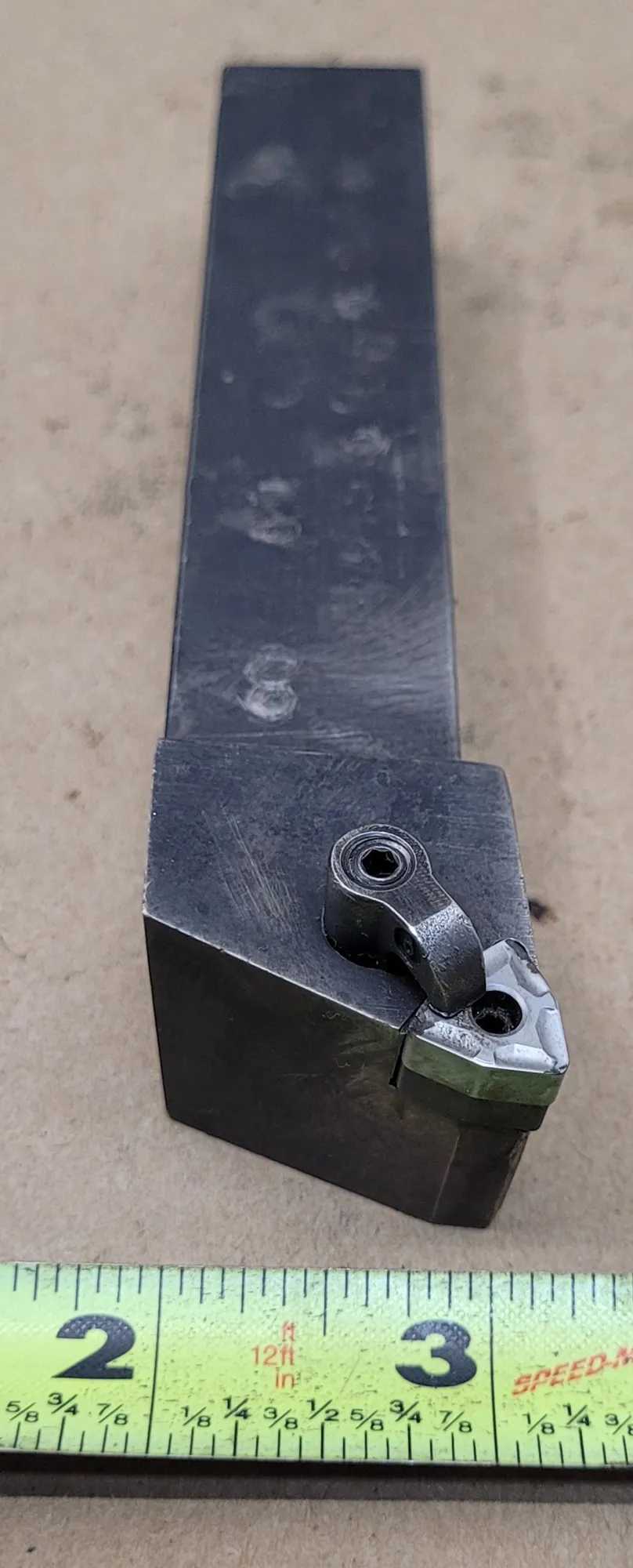

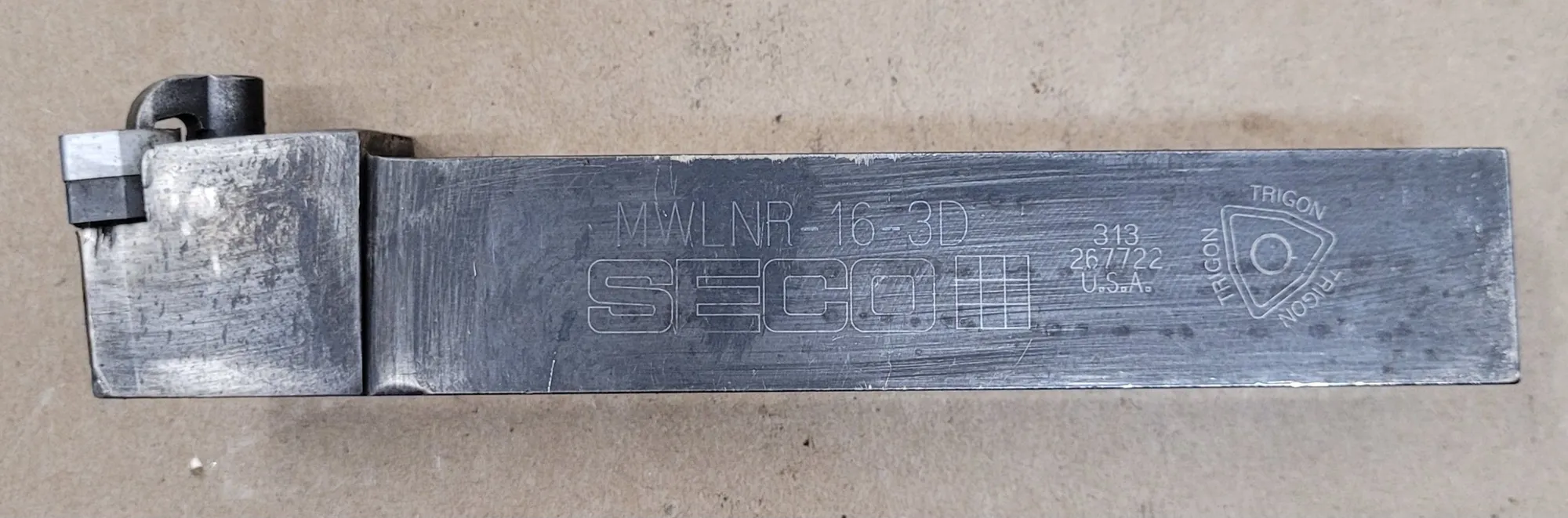

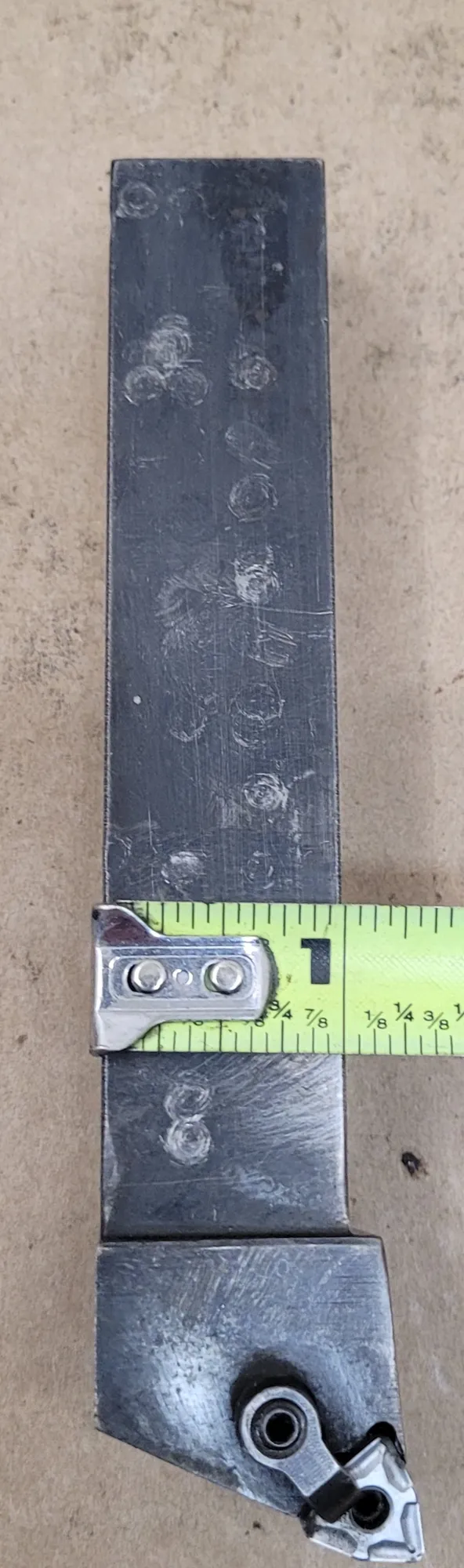

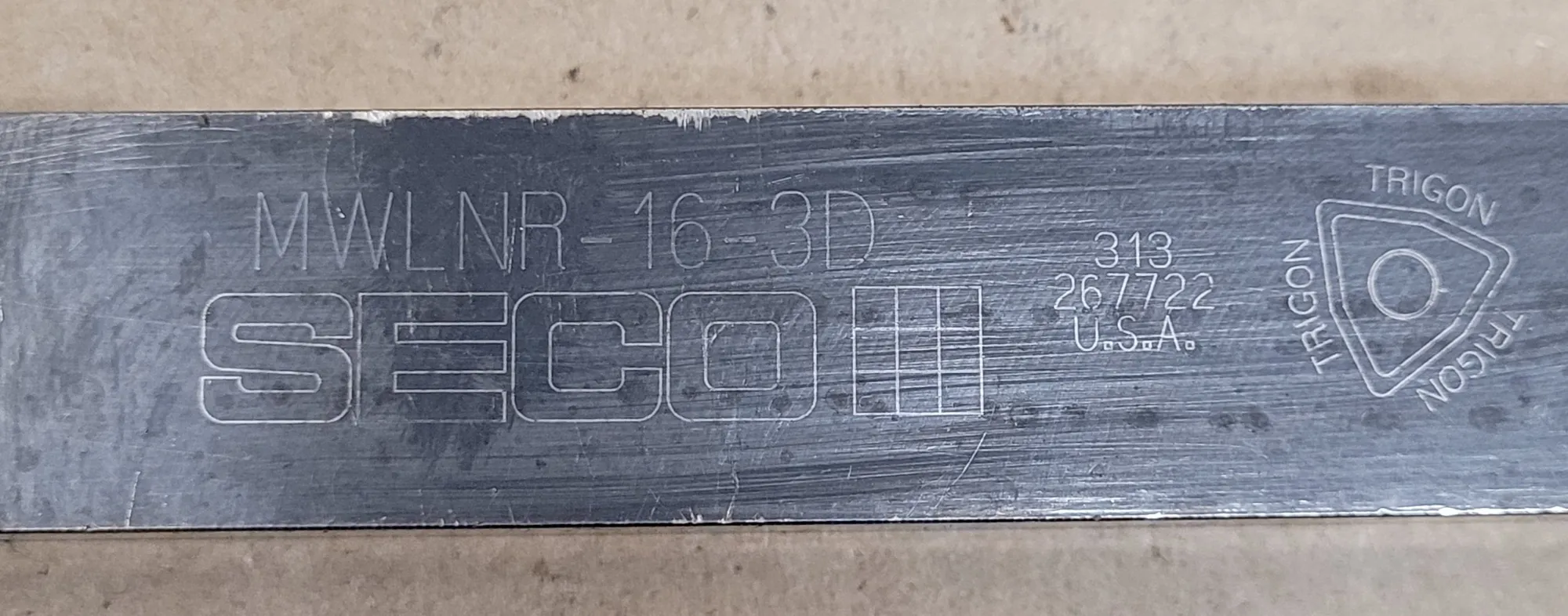

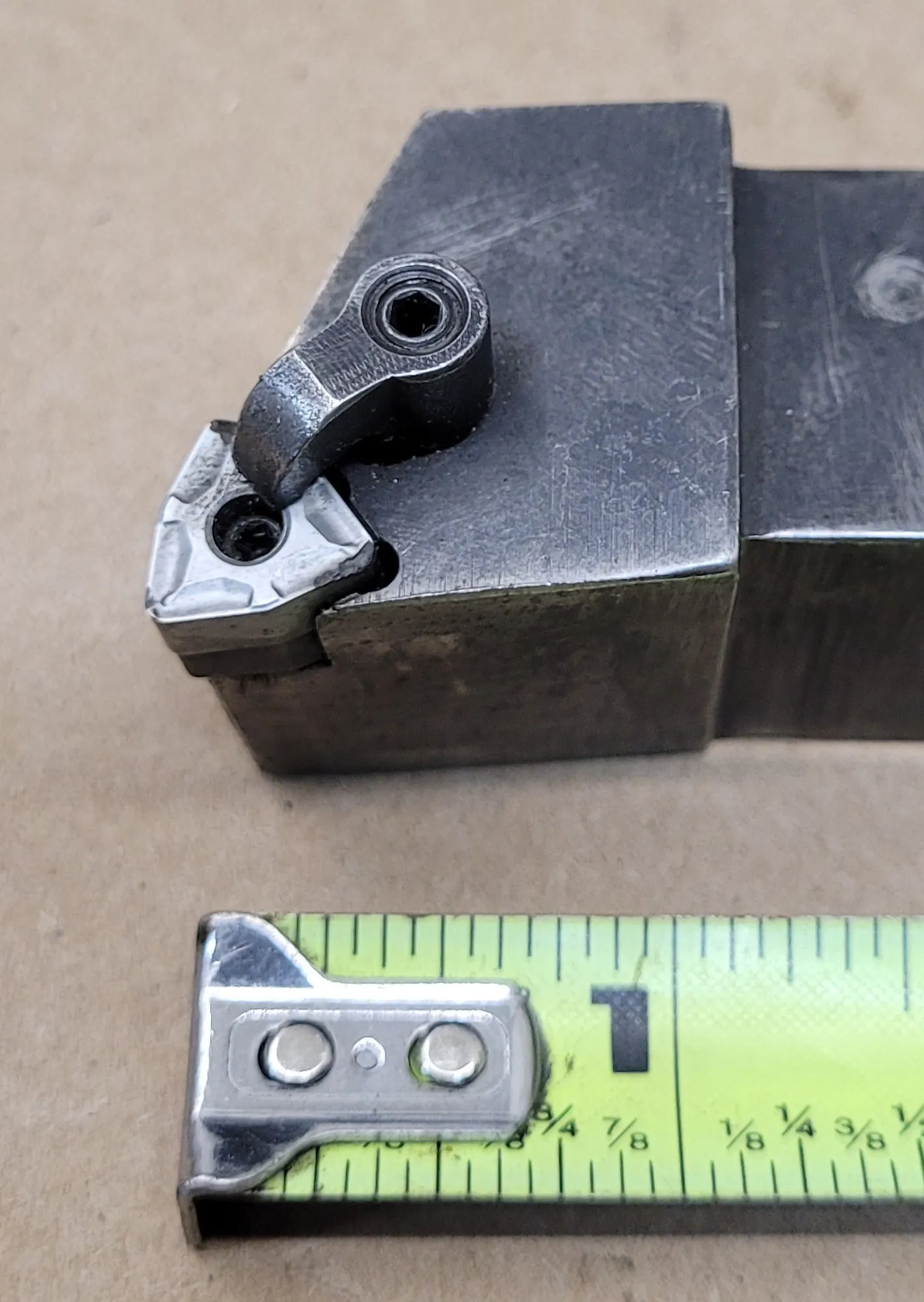

Seco MWLNR-16-3D Indexable Turning Toolholder, 95.0 Lead Angle, 1 Shank Wxh, 6.0000 OAL, Rh

The Seco MWLNR-16-3D is an indexable turning toolholder designed for precision machining applications. It features a 95° lead angle and is compatible with WN..33 inserts, utilizing a clamp method for secure insert holding. The toolholder has a shank size of 1 inch in both width and height, providing stability and strength during operations. With an overall length of 6 inches, it is suitable for various turning tasks. The toolholder is designed for right-hand cutting direction and incorporates a negative rake with a rake angle of -6°, optimizing it for specific cutting conditions. It does not support coolant through, making it ideal for dry or external coolant applications.
